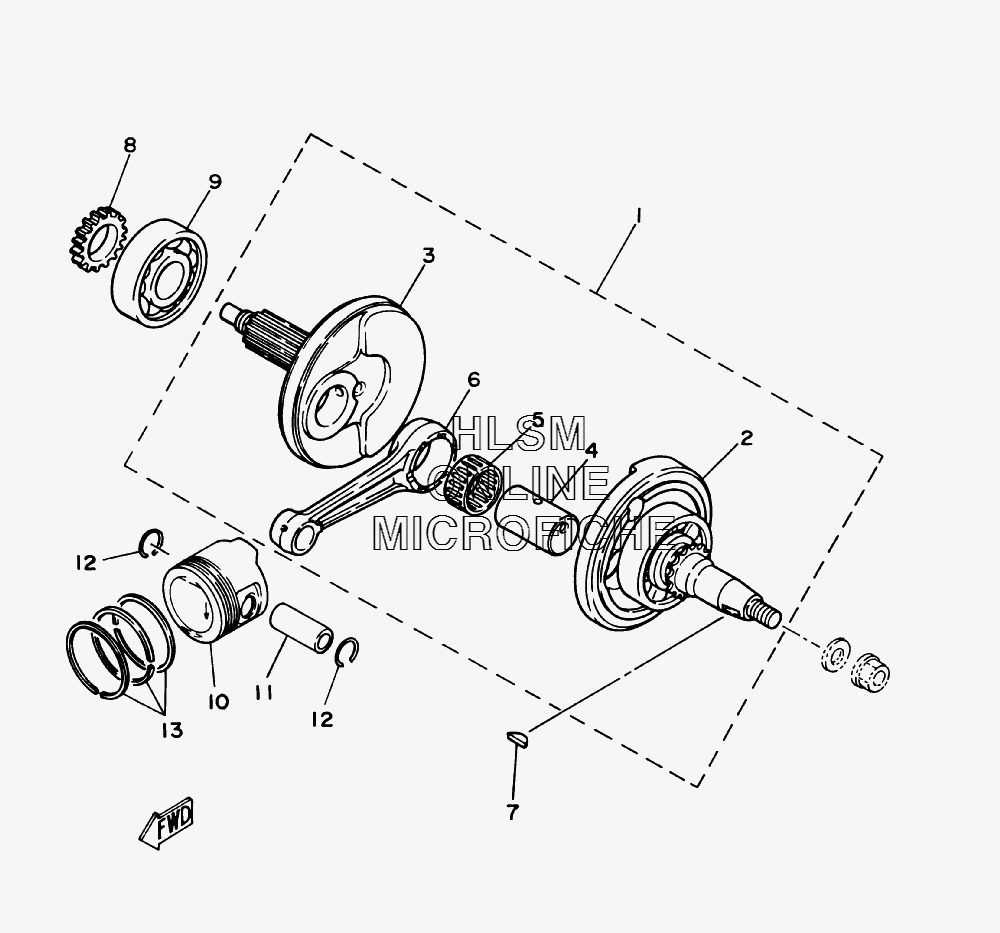

CRANKSHAFT - PISTON для Yamaha RAPTOR 50 - 2007 года выпуска`
-
№АртикулНазвание
-
122F-11400-01-00 CRANKSHAFT ASSYCRANKSHAFT ASSY
-
222F-W1141-00-00 ...CRANK 1...CRANK 1
-
322F-11422-00-00 ...CRANK 2...CRANK 2
-
422F-11681-00-00 ...PIN, CRANK 1...PIN, CRANK 1
-
593311-32353-00 ...BEARING, CYL. #11...BEARING, CYL. #11
-
622F-11651-02-00 ...ROD, CONNECTING...ROD, CONNECTING
-
790280-03017-00 KEY, WOODRUFFKEY, WOODRUFF
-
846J-13324-00-00 GEAR, PUMP DRIVEGEAR, PUMP DRIVE
-
993306-30433-00 BEARINGBEARING
-
1022F-11631-02-00 PISTON (STD)PISTON (STD)
-
1022F-11636-02-00 PISTON (0.50MM O/S) (OPT)PISTON (0.50MM O/S) (OPT)
-
1022F-11638-02-00 PISTON (1.00MM O/S) (OPT)PISTON (1.00MM O/S) (OPT)
-
1122F-11633-00-00 PIN, PISTONPIN, PISTON
-
1293450-14088-00 CIRCLIP, INNERCIRCLIP, INNER
-
1322F-11610-03-00 PISTON RING SET (STD)PISTON RING SET (STD)
-
1322F-11610-23-00 PISTON RING SET (0.50MM O/S) (OPT)PISTON RING SET (0.50MM O/S) (OPT)
-
1322F-11610-43-00 PISTON RING SET (1.00MM O/S) (OPT)PISTON RING SET (1.00MM O/S) (OPT)
