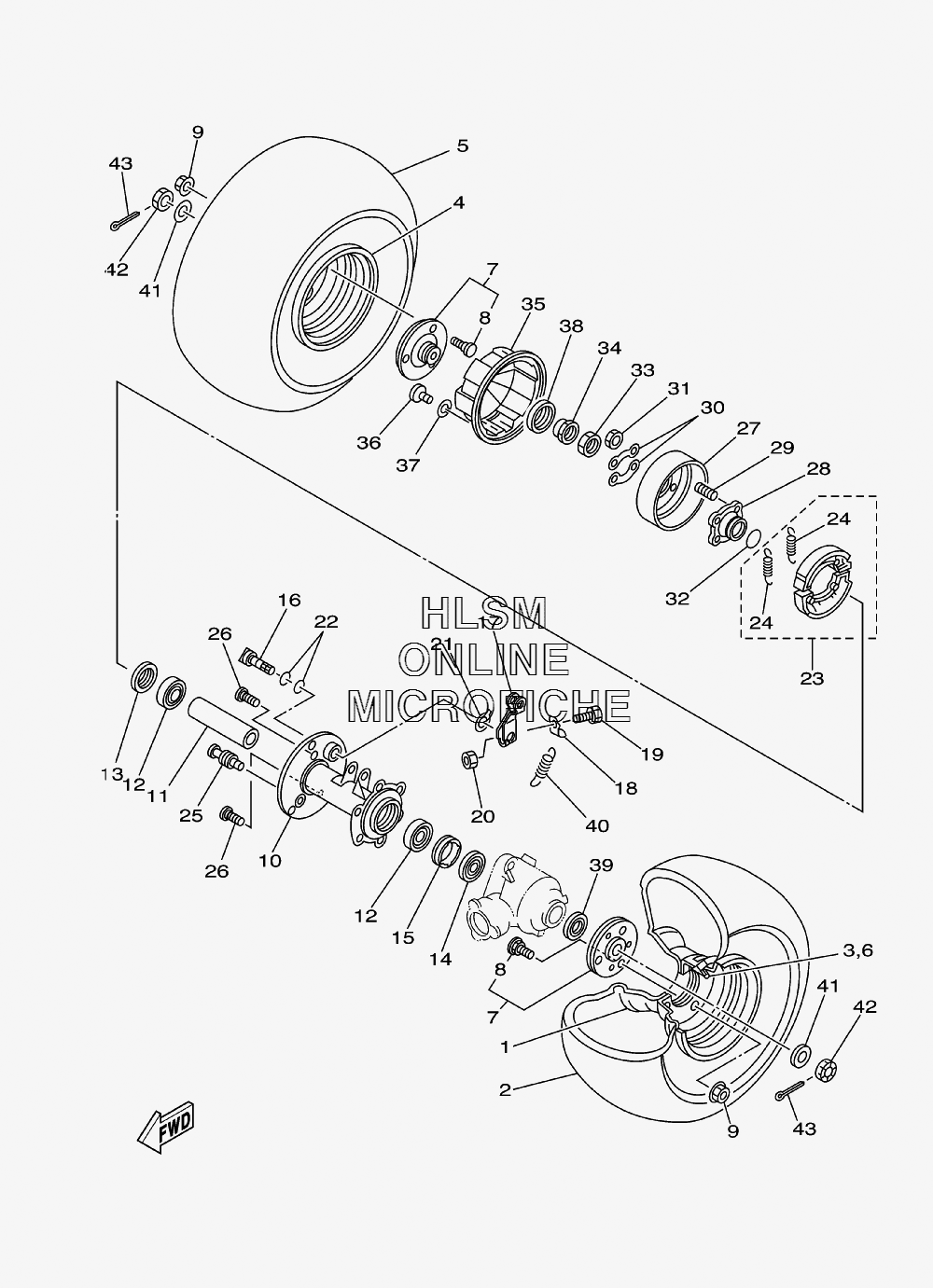

WHEEL - REAR W/ AXLE ASSY для Yamaha RAPTOR 50 - 2007 года выпуска`
-
№АртикулНазвание
-
12FJ-25390-00-35 REAR WHEEL COMP. (SL FOR DPBSE, PGD)REAR WHEEL COMP. (SL FOR DPBSE, PGD)
-
294108-07008-00 TIRE (AT16 X 8-7 KT145 TL) DUNLOPTIRE (AT16 X 8-7 KT145 TL) DUNLOP
-
393900-00022-00 VALVE, RIM (TR413)VALVE, RIM (TR413)
-
42FJ-25390-00-35 REAR WHEEL COMP. (SL FOR DPBSEPGD)REAR WHEEL COMP. (SL FOR DPBSEPGD)
-
594108-07008-00 TIRE (AT16 X 8-7 KT145 TL) DUNLOPTIRE (AT16 X 8-7 KT145 TL) DUNLOP
-
693900-00022-00 VALVE, RIM (TR413)VALVE, RIM (TR413)
-
755X-25383-10-00 COLLAR, WHEELCOLLAR, WHEEL
-
890114-08001-00 ...BOLT, SERRATION...BOLT, SERRATION
-
995707-08500-00 NUT, FLANGENUT, FLANGE
-
103GB-25311-00-33 HUB, REAR (YB FOR DPBSE, PGD)HUB, REAR (YB FOR DPBSE, PGD)
-
113GB-25317-00-00 SPACER, BEARINGSPACER, BEARING
-
1293306-00612-00 BEARINGBEARING
-
1393102-38383-00 OIL SEALOIL SEAL
-
1493102-36409-00 OIL SEAL, SD-TYPEOIL SEAL, SD-TYPE
-
153GB-25382-00-00 NUT, AXLENUT, AXLE
-
163Y6-25351-00-00 CAMSHAFTCAMSHAFT
-
175YF-25355-00-00 LEVER, CAMSHAFTLEVER, CAMSHAFT
-
1855X-2533H-00-00 HOOK, SPRINGHOOK, SPRING
-
1990101-06562-00 BOLTBOLT
-
2095307-06600-00 NUTNUT
-
2123F-2533A-00-00 PLATE, INDICATORPLATE, INDICATOR
-
2293210-14104-00 O-RINGO-RING
-
233FA-W253E-00-00 BRAKE SHOE KITBRAKE SHOE KIT
-
2490506-15260-00 ...SPRING, TENSION...SPRING, TENSION
-
253GB-25326-00-00 PIN, PIVOTPIN, PIVOT
-
2690114-10005-00 BOLT, SERRATIONBOLT, SERRATION
-
273GB-2531E-00-00 DRUM, BRAKEDRUM, BRAKE
-
283GB-25343-10-00 BOSSBOSS
-
2990116-08507-00 BOLT, STUDBOLT, STUD
-
30390-25412-01-00 WASHERWASHER
-
3195307-08600-00 NUTNUT
-
3293210-26606-00 O-RINGO-RING
-
3390170-28011-00 NUTNUT
-
3490179-28009-00 NUTNUT
-
353GB-25715-00-00 COVER 1COVER 1
-
3698507-06012-00 SCREW, PAN HEADSCREW, PAN HEAD
-
3792907-06100-00 WASHER, SPRINGWASHER, SPRING
-
3893102-35349-00 OIL SEAL, SD-TYPEOIL SEAL, SD-TYPE
-
393GB-25367-00-00 COVER, HUB DUSTCOVER, HUB DUST
-
4090507-15038-00 SPRING, TENSIONSPRING, TENSION
-
4190201-12045-00 WASHER, PLATEWASHER, PLATE
-
4290171-12001-00 NUT, CASTLENUT, CASTLE
-
4391401-25025-00 PIN, COTTERPIN, COTTER
