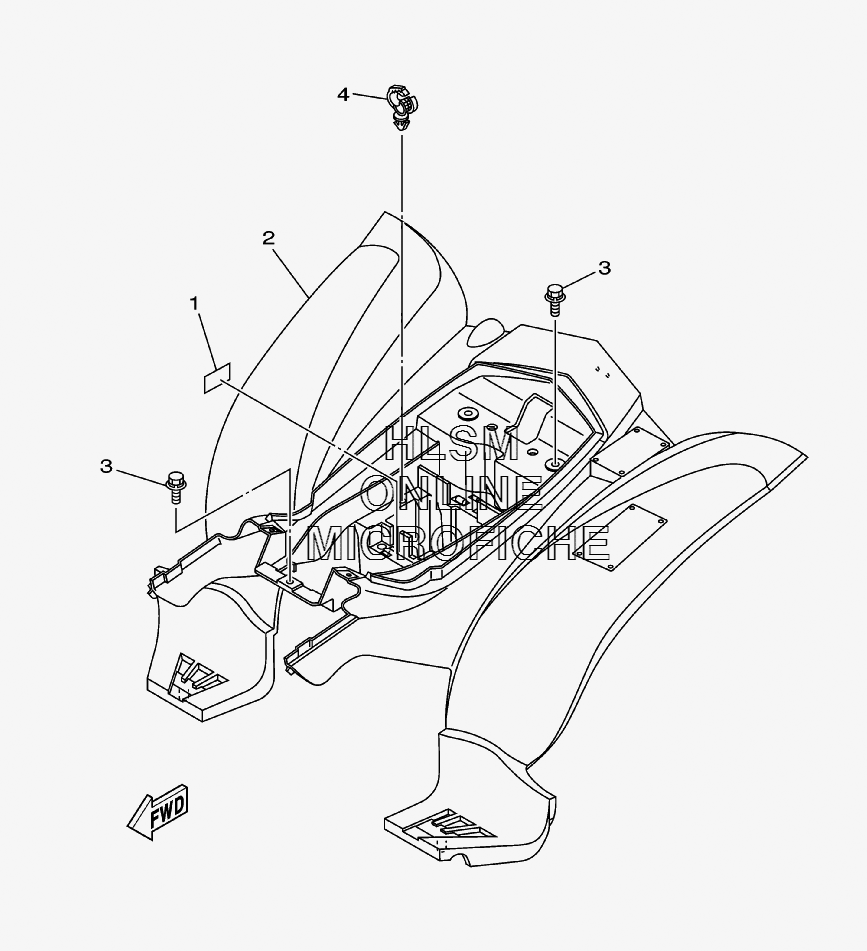

FENDER - REAR для Yamaha RAPTOR 50 - 2007 года выпуска
-
№АртикулНазвание
-
15YF-2177D-10-00 PLATE, EPA OFFROAD ATV 2PLATE, EPA OFFROAD ATV 2
-
25YF-W2161-00-00 REAR FENDER COMP. FOR DPBSEREAR FENDER COMP. FOR DPBSE
-
25YF-W2161-30-00 REAR FENDER COMP. FOR PGDREAR FENDER COMP. FOR PGD
-
390119-06056-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
490464-13249-00 CLAMPCLAMP
