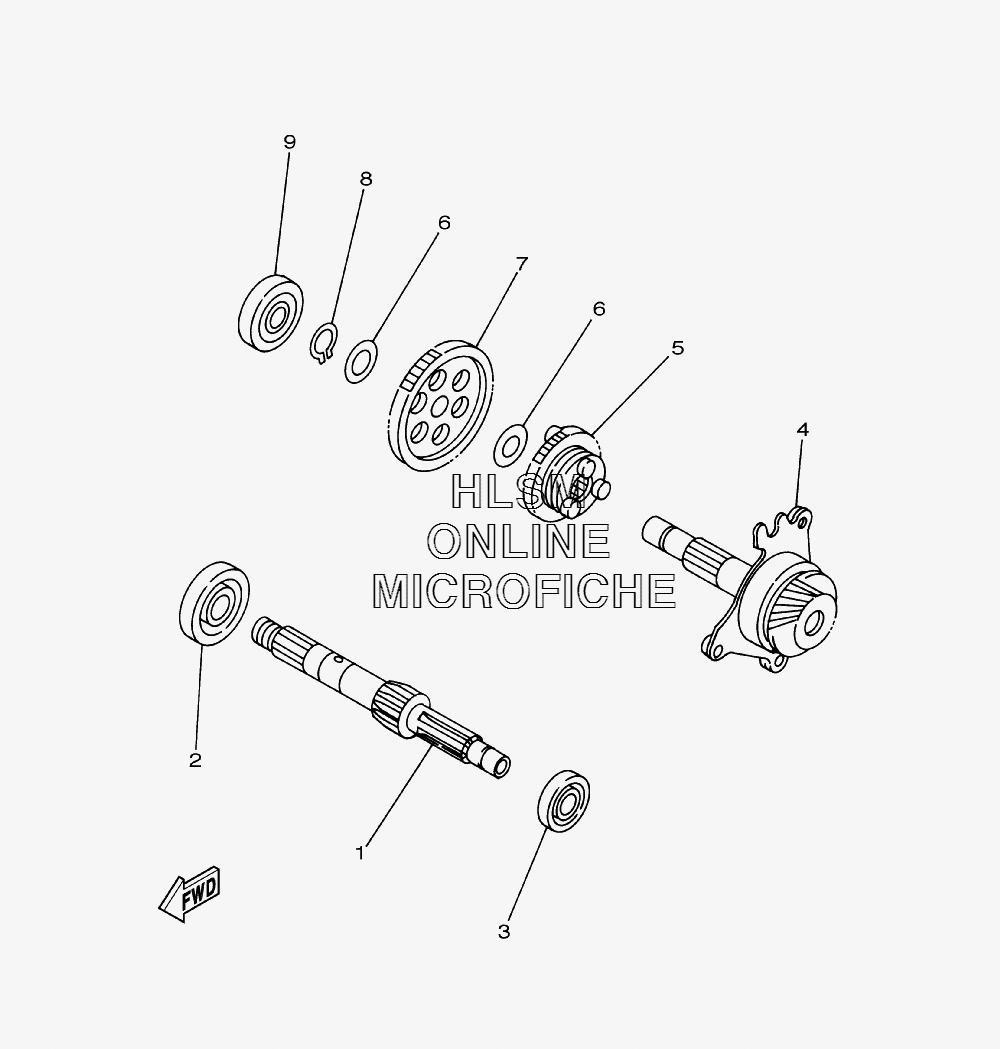

TRANSMISSION для Yamaha RAPTOR 50 - 2007 года выпуска
-
№АртикулНазвание
-
15YF-17411-00-00 AXLE, MAINAXLE, MAIN
-
293306-20301-00 BEARINGBEARING
-
393306-00105-00 BEARINGBEARING
-
45YF-17402-00-00 DRIVE AXLE ASSYDRIVE AXLE ASSY
-
555X-17241-00-00 GEAR, 4TH WHEEL (27T)GEAR, 4TH WHEEL (27T)
-
690201-132G5-00 WASHER, PLATEWASHER, PLATE
-
75YF-17211-00-00 GEAR, 1ST WHEEL (38T)GEAR, 1ST WHEEL (38T)
-
899009-12400-00 CIRCLIPCIRCLIP
-
993306-30101-00 BEARINGBEARING
Все узлы модели:
- AIR CLEANER W/ INTAKE
- CAMSHAFT W/ CHAIN
- CLUTCH
- CRANKCASE
- CRANKCASE COVER
- CRANKSHAFT - PISTON
- CYLINDER
- DECALS
- DIFFERENTIAL - REAR W/ DRIVE SHAFT
- ELECTRICAL
- EXHAUST
- FENDER - FRONT
- FENDER - REAR
- FOOTREST W/ BRAKE PEDAL
- FRAME
- FUEL TANK
- GENERATOR
- HANDLEBAR W/ CABLES
- HANDLEBAR W/ SWITCHES - LEVERS
- HEADLIGHT
- MIDDLE DRIVE GEAR
- MODEL INFO - MANUALS
- OIL PUMP
- RACK AND BUMPER
- REFLECTOR ASSY
- SEAT
- SHIFT CAM W/ FORK
- SHIFT SHAFT
- STARTER CLUTCH
- STARTING MOTOR
- STEERING
- SUSPENSION - FRONT WHEEL
- SUSPENSION - REAR ARM
- SUSPENSION - REAR SHOCK ABSORBER
- • TRANSMISSION
- VALVE ASSY
- WHEEL - FRONT W/ AXLE ASSY
- WHEEL - REAR W/ AXLE ASSY
