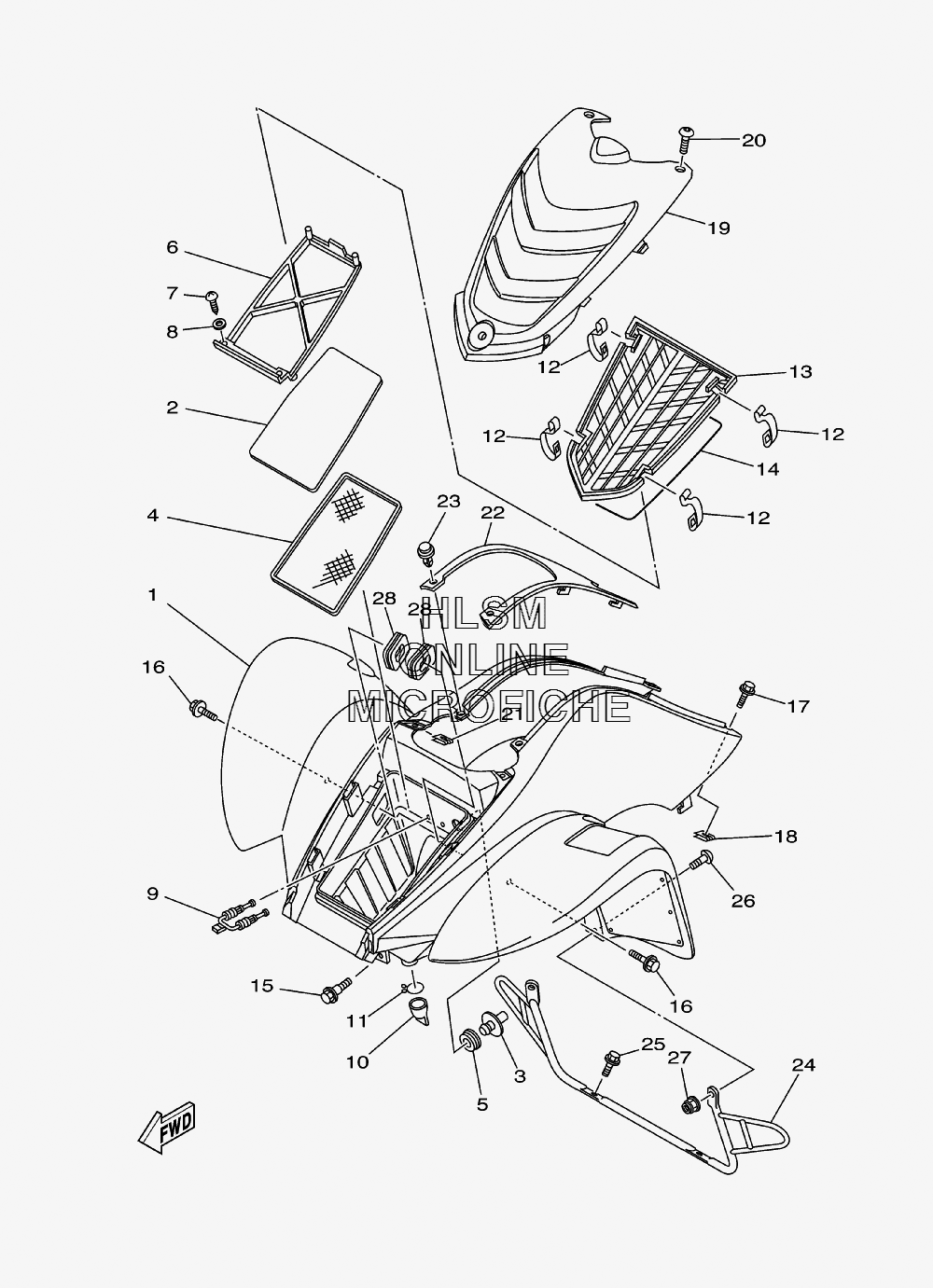

FENDER - FRONT для Yamaha RAPTOR 50 - 2007 года выпуска`
-
№АртикулНазвание
-
15YF-W2151-01-00 FRONT FENDER COMP. FOR DPBSEFRONT FENDER COMP. FOR DPBSE
-
15YF-W2151-31-00 FRONT FENDER COMP. FOR PGDFRONT FENDER COMP. FOR PGD
-
255X-14451-00-00 ELEMENT, AIR CLEANERELEMENT, AIR CLEANER
-
32D3-14419-00-00 PIPEPIPE
-
455X-14472-01-00 PLATE, ELEMENTPLATE, ELEMENT
-
531A-14435-00-00 GROMMETGROMMET
-
655X-14458-00-00 GUIDE, ELEMENTGUIDE, ELEMENT
-
797707-40116-00 SCREW, TAPPINGSCREW, TAPPING
-
892907-04200-00 WASHERWASHER
-
955X-14436-00-00 HOOKHOOK
-
1059V-14457-00-00 SEALSEAL
-
1190467-22080-00 CLIP, SCISSORCLIP, SCISSOR
-
125TH-14436-00-00 HOOKHOOK
-
135TH-14412-00-00 CAP, CLEANER CASE 1CAP, CLEANER CASE 1
-
145TH-14452-00-00 SEALSEAL
-
1590109-063F1-00 BOLTBOLT
-
1690119-06044-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1790119-05193-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1890183-05008-00 NUT, SPRINGNUT, SPRING
-
195TH-21556-00-00 FENDER, FRONT 2 FOR DPBSEFENDER, FRONT 2 FOR DPBSE
-
195TH-21556-30-00 FENDER, FRONT 2 FOR PGDFENDER, FRONT 2 FOR PGD
-
2090110-05201-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
2190183-05008-00 NUT, SPRINGNUT, SPRING
-
225TH-2171A-00-00 COVER, TOP FOR DPBSECOVER, TOP FOR DPBSE
-
225TH-2171A-30-00 COVER, TOP FOR PGDCOVER, TOP FOR PGD
-
2390269-06002-00 RIVETRIVET
-
245YF-21513-00-00 STAY, FENDER 1STAY, FENDER 1
-
2595807-06010-00 BOLT, FLANGEBOLT, FLANGE
-
2690154-05006-00 SCREW, BINDINGSCREW, BINDING
-
2790185-05007-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
282HX-14437-01-00 DUCTDUCT
