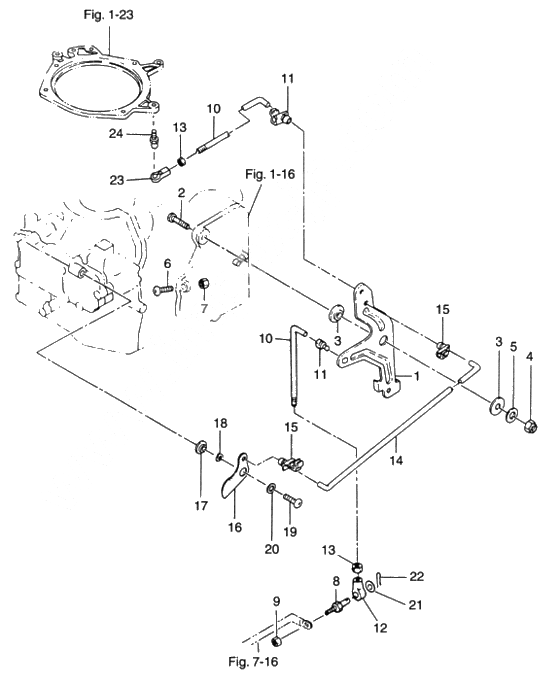

Throttle mechanism для Tohatsu M40C - 2004 года выпуска`
-
№АртикулНазвание
-
1348-63711-1 Advancer ArmAdvancer Arm
-
2910121-0840 BoltBolt
-
3345-63713-0 BushingBushing
-
4930406-0800 Nylon NutNylon Nut
-
53P0-66233-0 New part
OR 334-66233-0New part
OR 334-66233-0 -
7930106-0500 New partNew part
-
8361-83728-0 Cable PinCable Pin
-
9930106-0600 New partNew part
-
10348-63715-0 Advancer link rodAdvancer link rod
-
113B7-63733-0 Rod Snap, 5-3Rod Snap, 5-3
-
12346-05234-0 New partNew part
-
13930106-0500 New partNew part
-
14348-63716-0 Throttle link rodThrottle link rod
-
15345-05223-1 Rod Snap,3.5-2Rod Snap,3.5-2
-
16348-63718-0 Throttle CamThrottle Cam
-
17346-63721-0 BushingBushing
-
18941403-1000 WasherWasher
-
19921503-0616 Stud BoltStud Bolt
-
203R0-66308-0 Washer
OR 3C8-66308-0Washer
OR 3C8-66308-0 -
21353-83719-0 WasherWasher
-
22951603-0800 R-PinR-Pin
-
233B7-05243-0 New partNew part
-
24346-05228-0 New partNew part
-
1348-63711-1 Advancer ArmAdvancer Arm
-
2910121-0840 BoltBolt
-
3345-63713-0 Bushing, 8-14-4Bushing, 8-14-4
-
4930406-0800 Nylon Nut, 8P-1.25Nylon Nut, 8P-1.25
-
53P0-66233-0 Washer, 8.176-1.5
or 334-66233-0Washer, 8.176-1.5
or 334-66233-0 -
6921506-0520 ScrewScrew
-
7930106-0500 NutNut
-
8361-83728-0 Cable PinCable Pin
-
9930106-0600 NutNut
-
10348-63715-0 Link Rod, 5-75LLink Rod, 5-75L
-
113B7-63733-0 Rod Snap, 5-3Rod Snap, 5-3
-
12346-05234-0 Ø 5 Rod JointØ 5 Rod Joint
-
13930106-0500 NutNut
-
14348-63716-0 Throttle Link RodThrottle Link Rod
-
15345-05223-1 Rod Snap, 3.5-2Rod Snap, 3.5-2
-
16348-63718-0 Throttle CamThrottle Cam
-
17346-63721-0 Bushing, 6.2~16-5Bushing, 6.2~16-5
-
18941403-1000 Wave Washer, d二10Wave Washer, d二10
-
19921503-0616 ScrewScrew
-
203R0-66308-0 Washer, 6~16-1.5
or 3C8-66308-0Washer, 6~16-1.5
or 3C8-66308-0 -
21353-83719-0 Washer, 8.5-18-1.6Washer, 8.5-18-1.6
-
22951603-0800 R-Pin, d=8R-Pin, d=8
-
233B7-05243-0 Cap UC', Ball JointCap UC', Ball Joint
-
24346-05228-0 Ball Joint “B”Ball Joint “B”
