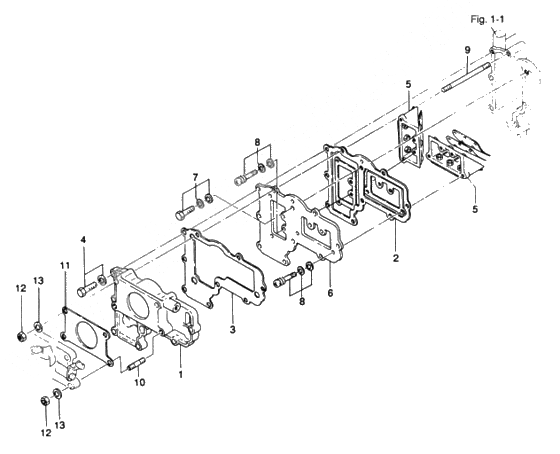

Inlet - reed valve для Tohatsu M40C - 2004 года выпуска
-
№АртикулНазвание
-
1345B02010-0 Inlet ManifoldInlet Manifold
-
2345-02104-0 Gasket a inlet manifoldGasket a inlet manifold
-
3345-02105-0 Gasket b inlet manifoldGasket b inlet manifold
-
4910114-5630 BoltBolt
-
5345-02100-1 Reed Valve Ass'yReed Valve Ass'y
-
6345-02106-0 Reed plate adaptorReed plate adaptor
-
7910121-7620 BoltBolt
-
8921521-7412 Stud BoltStud Bolt
-
9915321-0655 Stud BoltStud Bolt
-
10915321-0620 Stud BoltStud Bolt
-
11345-02011-0 Gasket carburetorGasket carburetor
-
12930113-0600 NutNut
-
13941303-0600 New partNew part
