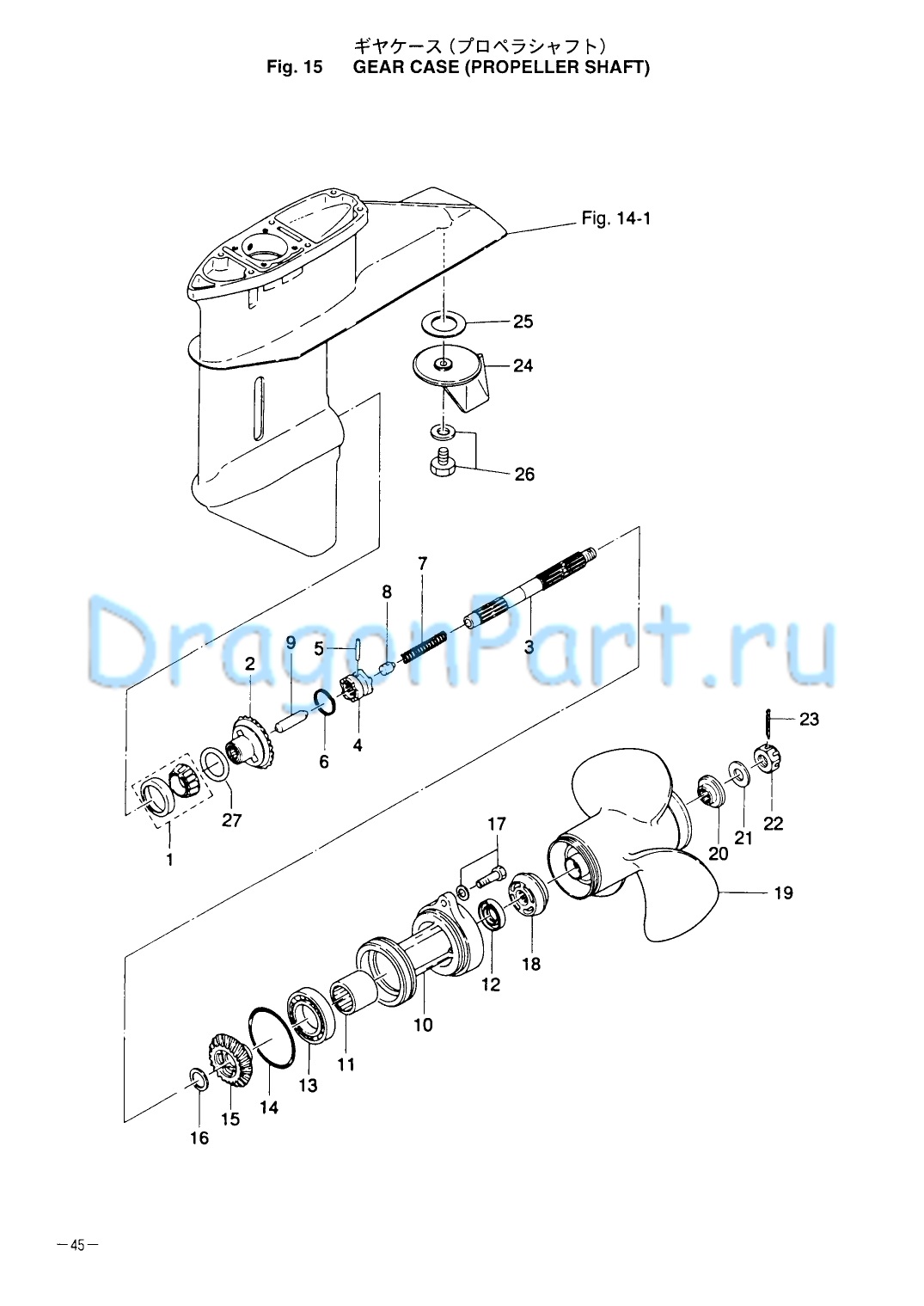

GEAR CASE( PROPELLER SHAFT) для Tohatsu M40C - 2004 года выпуска`
-
№АртикулНазвание
-
1345-60215-0 Bearing, 32007Bearing, 32007
-
2348-64010-1 Bevel Gear “A”Bevel Gear “A”
-
3348-64211-0 Propeller ShaftPropeller Shaft
-
4348-64215-0 ClutchClutch
-
5345-64217-0 Clutch PinClutch Pin
-
6345-64219-0 Snap, Clutch PinSnap, Clutch Pin
-
7345-64221-0 Spring, ClutchSpring, Clutch
-
8345-64222-0 Spring Holder, ClutchSpring Holder, Clutch
-
9345-64223-0 Push Rod, ClutchPush Rod, Clutch
-
10345S60101-1 Housing, Propeller ShaftHousing, Propeller Shaft
-
11345-60211-0 Needle Bearing, 22-30-30Needle Bearing, 22-30-30
-
12334-60223-0 Oil Seal, 22-36-10Oil Seal, 22-36-10
-
139601-0-6007 Ball Bearing, 6007Ball Bearing, 6007
-
14345-60103-0 O-Ring, 3.53-69.44O-Ring, 3.53-69.44
-
15348-64030-0 Bevel Gear "C"Bevel Gear "C"
-
16345-64032-0 Washer, 22.1-28-3Washer, 22.1-28-3
-
17910113-5830 BoltBolt
-
183C8-64231-0 Thrust Holder, PropellerThrust Holder, Propeller
-
19348W64108-0 Propeller 7,(4X11.4X7.1)Propeller 7,(4X11.4X7.1)
-
19348W64107-0 Propeller 8.5, (3x11.2x8.7)Propeller 8.5, (3x11.2x8.7)
-
19361W64115-0 Propeller 9, (3 x 10.9 x 8.9)Propeller 9, (3 x 10.9 x 8.9)
-
19361W64109-0 Propeller 10, (3 X 10.8 x 9.9)Propeller 10, (3 X 10.8 x 9.9)
-
19361W64113-0 Propeller 11,(3X10.6X11.3)
STD or 3T5W64523-0Propeller 11,(3X10.6X11.3)
STD or 3T5W64523-0 -
19361W64114-0 Propeller 12, (3x10.6x11.7)
or 3T5W64525-0Propeller 12, (3x10.6x11.7)
or 3T5W64525-0 -
19348W64102-0 Propeller 13, (3X10.3X12.7)
or 3T5W64525-0Propeller 13, (3X10.3X12.7)
or 3T5W64525-0 -
19348W64103-0 Propeller 14, (3x10.2x13.9)
or 3T5W64527-0Propeller 14, (3x10.2x13.9)
or 3T5W64527-0 -
20348-64232-0 Stopper, PropellerStopper, Propeller
-
21345-64124-0 Washer, 17-32-3Washer, 17-32-3
-
22345-64121-0 Nut, PropellerNut, Propeller
-
23951503-0325 Split Pin, 3-25Split Pin, 3-25
-
24348-60217-0 Trim TabTrim Tab
-
25353-60219-0 Gasket, Trim TabGasket, Trim Tab
-
26910113-5618 BoltBolt
-
27353-64036-0 Shim, 36-44-0.3Shim, 36-44-0.3
-
27353-64037-0 Shim, 36-44-0.15Shim, 36-44-0.15
-
27353-64038-0 Shim, 36-44-0.1Shim, 36-44-0.1
