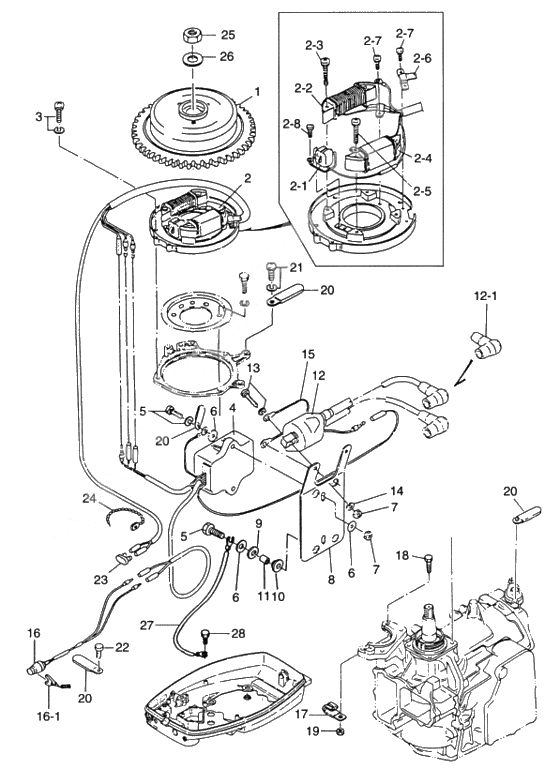

Magneto для Tohatsu M40C - 2004 года выпуска
-
№АртикулНазвание
-
1361-06091-0 Flywheel cup
FP5506 / # 91569~Flywheel cup
FP5506 / # 91569~ -
23A0-06002-0 Coil plate ass'yCoil plate ass'y
-
2-13G2-06022-0 Trigger coil setTrigger coil set
-
2-23A0-06023-0 AlternaterAlternater
-
2-3921521-6528 Stud BoltStud Bolt
-
2-43G2-06021-0 Exciter coilExciter coil
-
2-5921521-6522 Stud BoltStud Bolt
-
2-6350-06025-0 Holder, magneto cordHolder, magneto cord
-
2-7921521-6406 Stud BoltStud Bolt
-
2-8921521-6408 Stud BoltStud Bolt
-
3921521-6510 Stud BoltStud Bolt
-
4361-06060-1 Cd. unit
CU 2503Cd. unit
CU 2503 -
5910103-6625 BoltBolt
-
63R0-66308-0 WasherWasher
-
7930113-0600 NutNut
-
93B7-06305-0 Mount Rubber, 9-16-4.3Mount Rubber, 9-16-4.3
-
103F3-06920-0 Mount Rubber 9-12-2Mount Rubber 9-12-2
-
113A0-76079-0 Collar, 6.2-9-7.5Collar, 6.2-9-7.5
-
12361-06040-1 Ignition Coil AssyIgnition Coil Assy
-
12-13C7-06921-0 Prug cap (with waterproof registance)Prug cap (with waterproof registance)
-
13910113-5620 BoltBolt
-
14941303-0600 New partNew part
-
153B7-76142-0 Ground cord
L=120Ground cord
L=120 -
16398-06830-0 Safety Switch Ass'ySafety Switch Ass'y
-
16-1353-06821-0 Lock, lanyard stop switchLock, lanyard stop switch
-
17345-06917-1 Clamp 9-20uClamp 9-20u
-
18910114-0820 BoltBolt
-
19930113-0800 NutNut
-
20309-06972-0 Clamp,6.5-47.5PClamp,6.5-47.5P
-
21922503-6510 ScrewScrew
-
22910113-0612 BoltBolt
-
23353-76037-0 Plug Cable TerminalPlug Cable Terminal
-
24336-76091-0 Band Battery CordBand Battery Cord
-
25931121-1600 Nut
# 032986XD~ / CLOCKWISENut
# 032986XD~ / CLOCKWISE -
25334-00132-0 Nut 16p1.5l
~# 028121 XD / COUNTERCLOCKWISENut 16p1.5l
~# 028121 XD / COUNTERCLOCKWISE -
26345-00133-0 WasherWasher
-
273C7-76142-0 Ground cord
L=170 / FOR MF TYPEGround cord
L=170 / FOR MF TYPE -
28910103-0612 New part
FOR MF TYPENew part
FOR MF TYPE -
1361-06091-0 Flywheel Cup
FP5506 # 91569〜Flywheel Cup
FP5506 # 91569〜 -
23A0-06002-0 Coil Plate AssyCoil Plate Assy
-
2-13G2-06022-0 * Pulser Coil* Pulser Coil
-
2-23A0-06023-0 * Alternator* Alternator
-
2-3921521-6528 * Screw* Screw
-
8~2-43G2-06021-0 * Exciter Coil* Exciter Coil
-
2-5921521-6522 * Screw* Screw
-
2-6350-06025-0 * Holder, Magneto Cord* Holder, Magneto Cord
-
2-7921521-6406 * Screw* Screw
-
2-8921521-6408 * Screw* Screw
-
3921521-6510 ScrewScrew
-
4361-06060-1 C.D. Unit
CU 2503C.D. Unit
CU 2503 -
5910103-6625 BoltBolt
-
63R0-66308-0 Washer, 6T 6~1.5Washer, 6T 6~1.5
-
7930113-0600 NutNut
-
83A0-06322-1 Plate, ElectricPlate, Electric
-
93B7-06305-0 Rubber Mount, 9-16-4.3Rubber Mount, 9-16-4.3
-
103F3-06920-0 Rubber Mount, 9~12-2Rubber Mount, 9~12-2
-
113A0-76079-0 Collar, 6.2-3-7.4Collar, 6.2-3-7.4
-
12361-06040-1 Ignition Coil （with Resistance Cap）Ignition Coil （with Resistance Cap）
-
12-13C7-06921-0 * Plug Cap （ with Resistance）* Plug Cap （ with Resistance）
-
13910113-5620 BoltBolt
-
14941303-0600 Spring WasherSpring Washer
-
153B7-76142-0 Ground Cable
L=120Ground Cable
L=120 -
16398-06830-0 Lanyard Stop SwitchLanyard Stop Switch
-
16-1353-06821-0 * Lock, Lanyard Stop Switch* Lock, Lanyard Stop Switch
-
17345-06917-1 Clamp, 9-2011Clamp, 9-2011
-
18910114-0820 BoltBolt
-
19930113-0800 NutNut
-
20309-06972-0 Clamp, 6.5-47.5PClamp, 6.5-47.5P
-
21922503-6510 ScrewScrew
-
22910113-0612 BoltBolt
-
23353-76037-0 Plug, Cable TerminalPlug, Cable Terminal
-
24336-76091-0 Band, Lead WireBand, Lead Wire
-
25931121-1600 Nut, Magneto (16PT.5)
# 032986XD〜 ClockwiseNut, Magneto (16PT.5)
# 032986XD〜 Clockwise -
25334-00132-0 Nut, Magneto (16PT.5L)
〜# 028121XD CounterclockwiseNut, Magneto (16PT.5L)
〜# 028121XD Counterclockwise -
26345-00133-0 Washer, 16-28-3.2Washer, 16-28-3.2
-
273C7-76142-0 Ground Cable
L=170 for MF typeGround Cable
L=170 for MF type -
28910103-0612 Bolt
for MF typeBolt
for MF type
