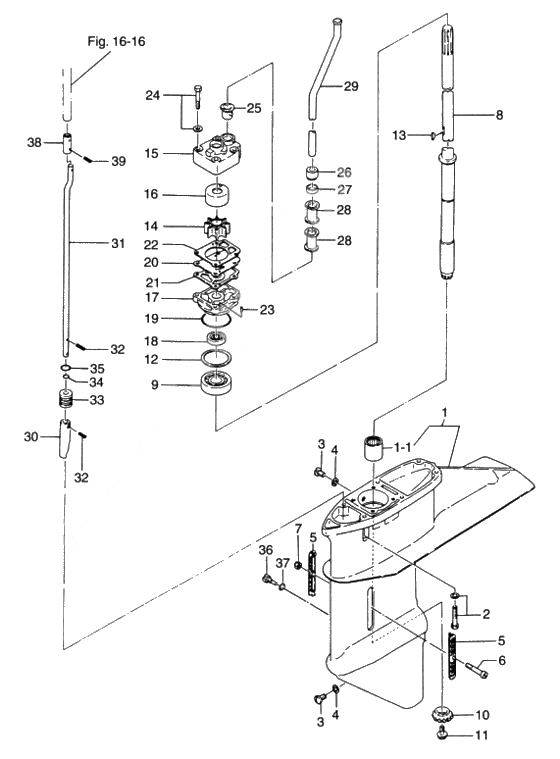

Gear case (drive shaft) для Tohatsu M40C - 2004 года выпуска`
-
№АртикулНазвание
-
1361S60000-0 Gear case ass'yGear case ass'y
-
1-1345-60211-0 Needle Bearing 22-30-30Needle Bearing 22-30-30
-
2910113-5840 BoltBolt
-
3332-60005-2 Oil Plug Water PlugOil Plug Water Plug
-
4332-60006-0 Gasket (8.1x15.1)Gasket (8.1x15.1)
-
5345-60206-0 Water StrainerWater Strainer
-
6921503-0440 Stud BoltStud Bolt
-
7930406-0400 Nylon NutNylon Nut
-
8345-64301-0 Drive Shaft S
FOR TRANSOM SDrive Shaft S
FOR TRANSOM S -
8345-64302-0 Drive shaft l
FOR TRANSOM LDrive shaft l
FOR TRANSOM L -
8345-64303-0 Drive Shaft UL
FOR TRANSOM ULDrive Shaft UL
FOR TRANSOM UL -
9345-60213-0 Ball bearing, 32304Ball bearing, 32304
-
10345-64020-1 Bevel Gear BBevel Gear B
-
11345-64025-0 New partNew part
-
12345-64081-0 Shim, 41-51.5-0.1Shim, 41-51.5-0.1
-
12345-64082-0 Shim,41-51.5-0.15Shim,41-51.5-0.15
-
12345-64083-0 Shim,41-51.5-0.3Shim,41-51.5-0.3
-
12345-64084-0 Shim,41-51.5-0.5Shim,41-51.5-0.5
-
13332-65022-0 Key, pump impellerKey, pump impeller
-
14345-65021-0 Крыльчатка водной помпыКрыльчатка водной помпы
-
15348-65016-1 Upper Pump CaseUpper Pump Case
-
16348-65011-0 Liner, pump caseLiner, pump case
-
17348-65017-1 Pump Case LowerPump Case Lower
-
18332-60111-0 Oil seal. 17-33-9.5Oil seal. 17-33-9.5
-
19345-65015-0 O-RingO-Ring
-
20348-65025-0 Guide plate, water pumpGuide plate, water pump
-
21348-65029-1 Gasket, pump guide plateGasket, pump guide plate
-
22348-65018-0 Прокладка насосаПрокладка насоса
-
23334-65012-0 СтопорСтопор
-
24910113-5652 New partNew part
-
253B7-65014-0 Lower seal rubber, water pipeLower seal rubber, water pipe
-
26345-65206-0 Upper Seal Rubber Water PipeUpper Seal Rubber Water Pipe
-
27345-65205-0 Collar, 18-20-4.5Collar, 18-20-4.5
-
28345-65204-0 Grommet b water pipe
FOR TRANSOM SGrommet b water pipe
FOR TRANSOM S -
28346-65204-0 Lock Rubber Water Pipe
FOR TRANSOM L ULLock Rubber Water Pipe
FOR TRANSOM L UL -
29345-65100-1 Water pipe s
FOR TRANSOM SWater pipe s
FOR TRANSOM S -
29345-65110-1 Water Pipe L
FOR TRANSOM LWater Pipe L
FOR TRANSOM L -
29345-65120-1 Water Pipe UL
FOR TRANSOM ULWater Pipe UL
FOR TRANSOM UL -
30348-66011-0 Clutch CamClutch Cam
-
31348-66012-0 Cam rod s
FOR TRANSOM SCam rod s
FOR TRANSOM S -
31348-66013-0 Cam Rod L
FOR TRANSOM LCam Rod L
FOR TRANSOM L -
31348-66014-0 Cam Rod UL
FOR TRANSOM ULCam Rod UL
FOR TRANSOM UL -
32951403-0316 Spring WasherSpring Washer
-
33345-66031-1 Cam shaft bushingCam shaft bushing
-
34345-66021-0 O-RingO-Ring
-
35332-66032-0 O?????2.4-15.4O?????2.4-15.4
-
36301-66024-1 Stopper cam shaft bushingStopper cam shaft bushing
-
37301-66025-0 Gasket cam shaft bushingGasket cam shaft bushing
-
38345-66241-0 Connector, shift rodConnector, shift rod
-
39951403-0312 Spring WasherSpring Washer
-
1361S60000-0 Gear CaseGear Case
-
1345-60211-0 * Needle Bearing. 22~30-30* Needle Bearing. 22~30-30
-
2910113-5840 BoltBolt
-
3332-60005-2 Oil PlugOil Plug
-
4332-60006-0 Gasket, 8.1-15-1Gasket, 8.1-15-1
-
5345-60206-0 Water StrainerWater Strainer
-
6921503-0440 ScrewScrew
-
7930406-0400 Nylon Nut, 4P-0.7Nylon Nut, 4P-0.7
-
8345-64301-0 Drive Shaft “S”
for Transom "S"Drive Shaft “S”
for Transom "S" -
12345-64302-0 Drive Shaft “L”
for Transom "L"Drive Shaft “L”
for Transom "L" -
12345-64303-0 Drive Shaft "UL"
for fransom “UL"Drive Shaft "UL"
for fransom “UL" -
9345-60213-0 Bearing, 32304Bearing, 32304
-
10345-64020-1 Bevel Gear l，B"Bevel Gear l，B"
-
11345-64025-0 Bolt, Bevel Gear "B"Bolt, Bevel Gear "B"
-
12345-64081-0 Shim, 41-51.5-0.1Shim, 41-51.5-0.1
-
12345-64082-0 Shim, 41-51.5-0.15Shim, 41-51.5-0.15
-
12345-64083-0 Shim, 41-51.5-0.3Shim, 41-51.5-0.3
-
12345-64084-0 Shim, 41-51.5-0.5Shim, 41-51.5-0.5
-
13332-65022-0 Key, Pump ImpellerKey, Pump Impeller
-
14345-65021-0 Impeller, Water PumpImpeller, Water Pump
-
15348-65016-1 Pump Case UpperPump Case Upper
-
16348-65011-0 Liner, Pump CaseLiner, Pump Case
-
17348-65017-1 Pump Case LowerPump Case Lower
-
18332-60111-0 Oil Seal, 17-33-9.5Oil Seal, 17-33-9.5
-
19345-65015-0 O-Ring, 3.2-47O-Ring, 3.2-47
-
20348-65025-0 Guide Plate, Water PumpGuide Plate, Water Pump
-
21348-65029-1 Gasket, Pump Guide PlateGasket, Pump Guide Plate
-
22348-65018-0 Gasket, Pump Case UpperGasket, Pump Case Upper
-
23334-65012-0 Knock, 4~10Knock, 4~10
-
24910113-5652 BoltBolt
-
253B7-65014-0 Seal Rubber Lower, Water PipeSeal Rubber Lower, Water Pipe
-
26345-65206-0 Seal Rubber Upper, Water PipeSeal Rubber Upper, Water Pipe
-
27345-65205-0 Set Ring, Seal RubberSet Ring, Seal Rubber
-
28345-65204-0 Lock Rubber, Water Pipe
for Transom "S”Lock Rubber, Water Pipe
for Transom "S” -
28346-65204-0 Lock Rubber, Water Pipe
for Transom "L", "UL"Lock Rubber, Water Pipe
for Transom "L", "UL" -
29345-65100-1 Water Pipe “S”
for Transom "S"Water Pipe “S”
for Transom "S" -
29345-65110-1 Water Pipe "L"
for Transom "L"Water Pipe "L"
for Transom "L" -
29345-65120-1 Water Pipe "UL"
for Transom "UL"Water Pipe "UL"
for Transom "UL" -
30348-66011-0 Clutch CamClutch Cam
-
31348-66012-0 Cam Rod “S”
for Transom "S"Cam Rod “S”
for Transom "S" -
31348-66013-0 Cam Rod "L"
for Transom "L"Cam Rod "L"
for Transom "L" -
31348-66014-0 Cam Rod "UL"
forn Transom "UL"Cam Rod "UL"
forn Transom "UL" -
32951403-0316 Spring Pin, 3~16Spring Pin, 3~16
-
33345-66031-1 Bushing, Cam RodBushing, Cam Rod
-
34345-66021-0 O-Ring,1.9-6.8O-Ring,1.9-6.8
-
35332-66032-0 O-Ring, 2.4-15.4O-Ring, 2.4-15.4
-
36301-66024-1 Stopper, Cam Rod BushingStopper, Cam Rod Bushing
-
37301-66025-0 Gasket, 6.2-11-1Gasket, 6.2-11-1
-
38345-66241-0 Joint, Shift RodJoint, Shift Rod
-
39951403-0312 Spring Pin, 3-12Spring Pin, 3-12
