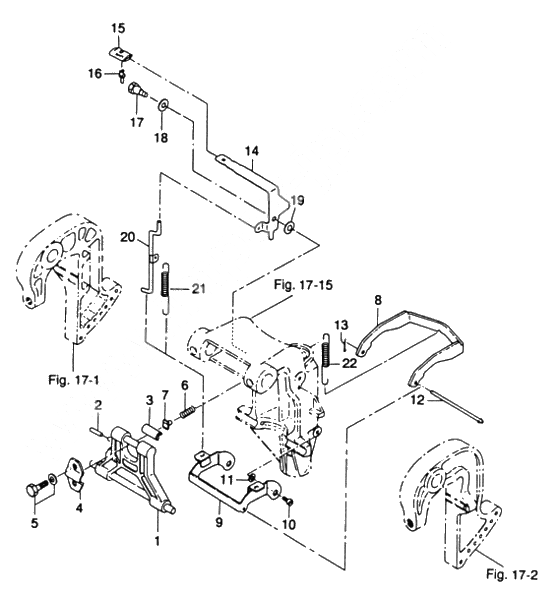

Reverse lock для Tohatsu M40C - 2004 года выпуска`
-
№АртикулНазвание
-
1349S62993-1 Tilt stop assy
#043187XC~ / OLD PART NO. 349S62431-1Tilt stop assy
#043187XC~ / OLD PART NO. 349S62431-1 -
349Q62993-1 Tilt stop assyTilt stop assy
-
2951403-0640 Spring WasherSpring Washer
-
3346-62437-0 BushingBushing
-
4346-62439-0 Set Plate Tilt StopperSet Plate Tilt Stopper
-
5910113-5820 BoltBolt
-
63C8-62421-1 Spring Friction PlateSpring Friction Plate
-
7346-62438-0 Set PieceSet Piece
-
8346-66322-0 Reverse LockReverse Lock
-
9349-66313-0 Arm,Reverse LockArm,Reverse Lock
-
10336-66319-1 Shaft Leverse Lock LinkShaft Leverse Lock Link
-
113R0-66308-0 WasherWasher
-
12346-66321-0 Rod,Reverse LockRod,Reverse Lock
-
13951503-0212 Split PinSplit Pin
-
14349-66311-0 Lever,reverse lockLever,reverse lock
-
15346-66333-0 GripGrip
-
16346-66334-0 StopperStopper
-
17345-05214-1 Shaft reverse lock leverShaft reverse lock lever
-
18941403-0800 WasherWasher
-
193R0-66308-0 WasherWasher
-
20349-66312-0 Link, Reverse LockLink, Reverse Lock
-
21346-66323-1 Spring,Reverse Lock LeverSpring,Reverse Lock Lever
-
22346-66331-0 Spring (S) Reverse Lock
FOR TRANSOM SSpring (S) Reverse Lock
FOR TRANSOM S -
223R0-66332-0 Spring (L) Reverse Lock
FOR TRANSOM L ULSpring (L) Reverse Lock
FOR TRANSOM L UL -
1349S62993-1 Tilt Stopper
#043187XC〜 Old Parts No. 349S62431-1Tilt Stopper
#043187XC〜 Old Parts No. 349S62431-1 -
2951403-0640 Spring Pin, 6-40Spring Pin, 6-40
-
3346-62437-0 Bushing, 10.2-12-29.5Bushing, 10.2-12-29.5
-
4346-62439-0 Set Plate, Tilt StopperSet Plate, Tilt Stopper
-
18*5910113-5820 BoltBolt
-
63C8-62421-1 Friction Spring, Tilt StopperFriction Spring, Tilt Stopper
-
7346-62438-0 Set PieceSet Piece
-
8346-66322-0 Reverse LockReverse Lock
-
9349-66313-0 Arm, Reverse LockArm, Reverse Lock
-
10336-66319-1 Shaft, Reverse Lock ArmShaft, Reverse Lock Arm
-
113R0-66308-0 Washer, 6-16-1.5Washer, 6-16-1.5
-
12346-66321-0 Rod, Reverse LockRod, Reverse Lock
-
13951503-0212 Split Pin, 2-12Split Pin, 2-12
-
14349-66311-0 Lever, Reverse LockLever, Reverse Lock
-
15346-66333-0 Grip, Reverse Lock LeverGrip, Reverse Lock Lever
-
16346-66334-0 Stopper, GripStopper, Grip
-
17345-05214-1 Shaft, Reverse Lock LeverShaft, Reverse Lock Lever
-
18941403-0800 Wave Washer, d二8Wave Washer, d二8
-
193R0-66308-0 Washer, 6-16~1.5Washer, 6-16~1.5
-
20349-66312-0 Link, Reverse LockLink, Reverse Lock
-
21346-66323-1 Spring, Reverse Lock LeverSpring, Reverse Lock Lever
-
22346-66331-0 Spring "S”，Reverse Lock
for Transom "S"Spring "S”，Reverse Lock
for Transom "S" -
223R0-66332-0 Spring 11L , Reverse Lock
for Transom "L", "UL”Spring 11L , Reverse Lock
for Transom "L", "UL”
