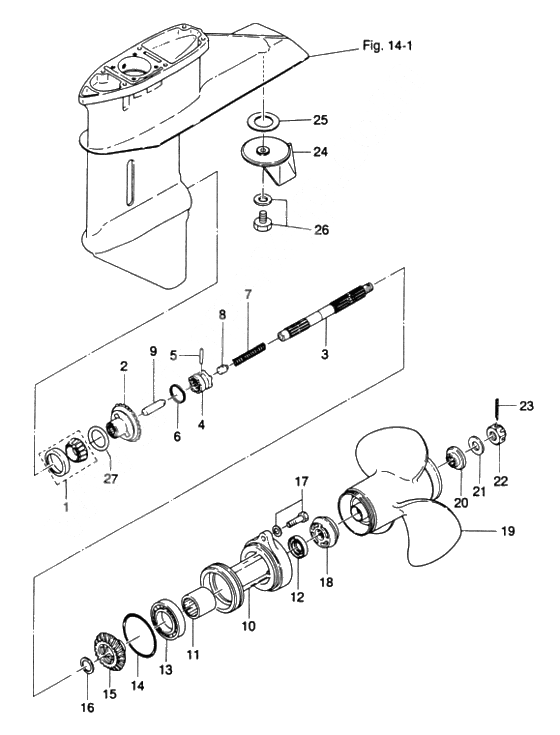

Gear case (propeller shaft) для Tohatsu M40C - 2004 года выпуска`
-
№АртикулНазвание
-
1345-60215-0 Taper roller bearing, 32007Taper roller bearing, 32007
-
2348-64010-1 Bevel Gear ABevel Gear A
-
3348-64211-0 New partNew part
-
4348-64215-0 СцеплениеСцепление
-
5345-64217-0 Clutch PinClutch Pin
-
6345-64219-0 Snap, Clutch PinSnap, Clutch Pin
-
7345-64221-0 Spring WasherSpring Washer
-
8345-64222-0 Spring holder clutchSpring holder clutch
-
9345-64223-0 Push Rod ClutchPush Rod Clutch
-
10345S60101-1 New partNew part
-
11345-60211-0 Needle Bearing 22-30-30Needle Bearing 22-30-30
-
12334-60223-0 Oil seal, 22-36-10Oil seal, 22-36-10
-
139601-0-6007 Ball bearing, 6007Ball bearing, 6007
-
14345-60103-0 O-RingO-Ring
-
15348-64030-0 Bevel Gear CBevel Gear C
-
16345-64032-0 WasherWasher
-
17910113-5830 BoltBolt
-
183C8-64231-0 Thrust holder propellerThrust holder propeller
-
19348W64108-0 Stop ScrewStop Screw
-
19348W64107-0 Stop ScrewStop Screw
-
19361W64109-0 Stop ScrewStop Screw
-
20348-64232-0 Stopper PropellerStopper Propeller
-
21345-64124-0 WasherWasher
-
22345-64121-0 Комплект установочныйКомплект установочный
-
23951503-0325 Split PinSplit Pin
-
24348-60217-0 Trim TabTrim Tab
-
25353-60219-0 PackingPacking
-
26910113-5618 BoltBolt
-
910103-5618 BoltBolt
-
27353-64036-0 Shim, 36-44-0.3Shim, 36-44-0.3
-
27353-64037-0 Shim,36-44-0.15Shim,36-44-0.15
-
27353-64038-0 Shim,36-44-0.1Shim,36-44-0.1
