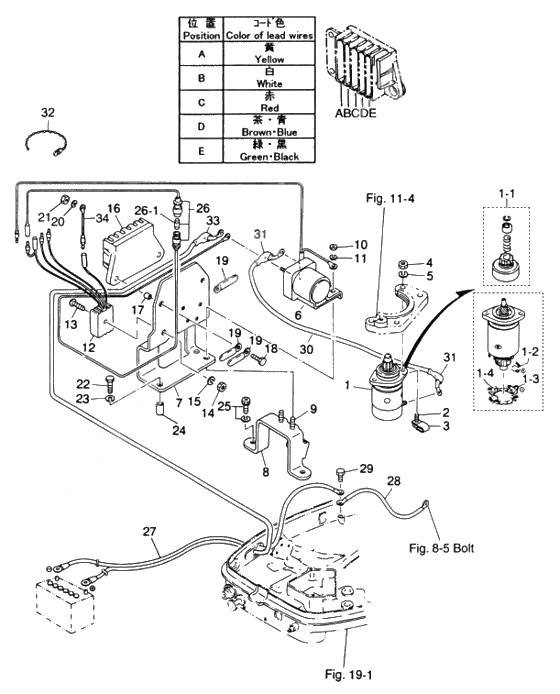

Electric starter (starter motor) для Tohatsu M40C - 2004 года выпуска`
-
№АртикулНазвание
-
1346-76010-0 Stater motor ass'yStater motor ass'y
-
1-1346-76015-0 Pinon ass'yPinon ass'y
-
1-2346-76012-0 Brush (+)Brush (+)
-
1-3346-76013-0 Brush (-)Brush (-)
-
1-4346-76014-0 Holder brushHolder brush
-
2916103-0830 BoltBolt
-
3345-06971-0 Clamp 9-12uClamp 9-12u
-
4930113-0800 NutNut
-
5941303-0800 Spring WasherSpring Washer
-
6346-76040-0 Starter SolenoidStarter Solenoid
-
7361-76055-0 Bracket choke solenoidBracket choke solenoid
-
8345-76081-0 Bracket neutral switchBracket neutral switch
-
9910103-0618 BoltBolt
-
10930113-0600 NutNut
-
11941303-0600 New partNew part
-
123G2-76060-0 Rectifier completeRectifier complete
-
13921503-0525 Stud BoltStud Bolt
-
14930103-0500 NutNut
-
15941303-0500 Spring WasherSpring Washer
-
16353-06281-0 Holder cable terminalHolder cable terminal
-
17353-06283-0 Collar 6.4-10-4.7Collar 6.4-10-4.7
-
18910113-0620 BoltBolt
-
19309-06972-0 Clamp,6.5-47.5PClamp,6.5-47.5P
-
20941303-0600 New partNew part
-
21930113-0600 NutNut
-
22910103-0645 Bolt
OR 910103-6645Bolt
OR 910103-6645 -
23941303-0600 New part
OR 910103-6645New part
OR 910103-6645 -
24128-02605-1 Spacer,6-5-28.5Spacer,6-5-28.5
-
25910903-6616 BoltBolt
-
263B2-76062-0 Fuse wire ass'y
L=355Fuse wire ass'y
L=355 -
26-1346-76212-0 Fuse (15a)Fuse (15a)
-
273B2-76120-0 Battery cable +/- (new style) 8.2 ft.
L=2000Battery cable +/- (new style) 8.2 ft.
L=2000 -
3V1-76120-2 Battery cable +/- (new style) 8.2 ft.Battery cable +/- (new style) 8.2 ft.
-
28334-76141-0 STARTER CORD
L=150STARTER CORD
L=150 -
29910103-0612 New part
OR 910113-0612New part
OR 910113-0612 -
303B2-76147-1 STARTER CORD
L=200STARTER CORD
L=200 -
313A3-76145-0 Cap Starter TerminalCap Starter Terminal
-
32336-76091-0 Band Battery CordBand Battery Cord
-
333B7-76145-0 Terminal CapTerminal Cap
-
343G2-76142-0 Ground cord
L=100Ground cord
L=100 -
1346-76010-0 Starter MotorStarter Motor
-
1-1346-76015-0 * Pinion* Pinion
-
1-2346-76012-0 * Carbon Brush ( + )* Carbon Brush ( + )
-
1-3346-76013-0 * Carbon Brush (―)* Carbon Brush (―)
-
1-4346-76014-0 * Brush Holder* Brush Holder
-
2916103-0830 BoltBolt
-
3345-06971-0 Clamp, 9~12UClamp, 9~12U
-
4930113-0800 NutNut
-
5941303-0800 Spring WasherSpring Washer
-
6346-76040-0 Starter SolenoidStarter Solenoid
-
7361-76055-0 Bracket, Choke SolenoidBracket, Choke Solenoid
-
8345-76081-0 Bracket, Neutral SwitchBracket, Neutral Switch
-
9910103-0618 BoltBolt
-
10930113-0600 NutNut
-
11941303-0600 Spring WasherSpring Washer
-
123G2-76060-0 RectifierRectifier
-
13921503-0525 ScrewScrew
-
14930103-0500 NutNut
-
15941303-0500 Spring WasherSpring Washer
-
16353-06281-0 Holder, Cable TerminalHolder, Cable Terminal
-
17353-06283-0 Collar, 6.4-10-4.7Collar, 6.4-10-4.7
-
18910113-0620 BoltBolt
-
19309-06972-0 Clamp, 6.5-47.5PClamp, 6.5-47.5P
-
20941303-0600 Spring WasherSpring Washer
-
21930113-0600 NutNut
-
22910103-0645 Bolt
or 910103-6645Bolt
or 910103-6645 -
23941303-0600 Spring WasherSpring Washer
-
24128-02605-1 Spacer, 6-8-28.5Spacer, 6-8-28.5
-
25910903-6616 BoltBolt
-
263B2-76062-0 Fuse Wire
L=355Fuse Wire
L=355 -
26-1346-76212-0 * Fuse (15A)* Fuse (15A)
-
273B2-76120-0 Battery Cord
L二2000Battery Cord
L二2000 -
28334-76141-0 Ground Cable
L二150Ground Cable
L二150 -
29910103-0612 Bolt
or 910113-0612Bolt
or 910113-0612 -
303B2-76147-1 Starter Cord
L 二 200Starter Cord
L 二 200 -
313A3-76145-0 Cap, CordCap, Cord
-
32336-76091-0 Band, Lead WireBand, Lead Wire
-
333B7-76145-0 Cap, CordCap, Cord
-
343G2-76142-0 Ground Cable
L二100Ground Cable
L二100
