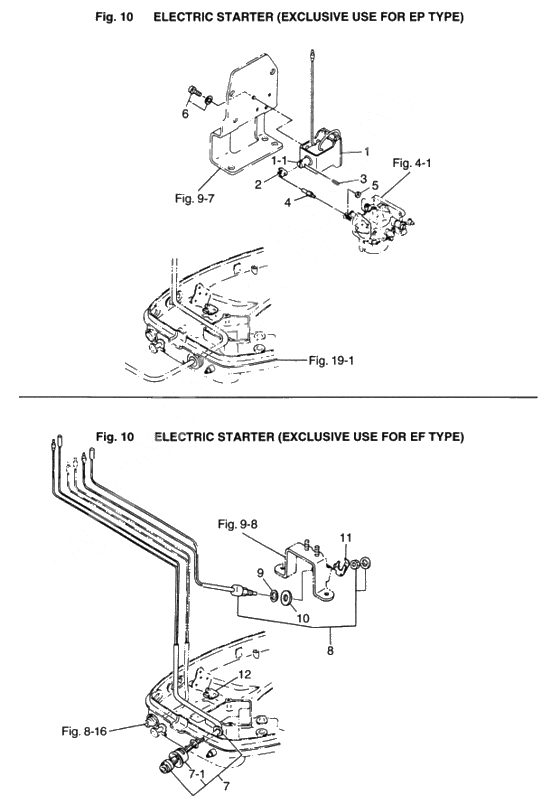

Electric starter для Tohatsu M40C - 2004 года выпуска`
-
№АртикулНазвание
-
1361-76050-0 Choke SolenoidChoke Solenoid
-
1-1361-76073-0 Plunger,Choke SolenoidPlunger,Choke Solenoid
-
2346-76057-0 Hook choke solenoidHook choke solenoid
-
3951403-0312 Spring WasherSpring Washer
-
4346-76072-1 Rod choke shaftRod choke shaft
-
5930406-0400 Nylon NutNylon Nut
-
6921503-6408 Stud BoltStud Bolt
-
7361-76026-0 Main Switch Ass'yMain Switch Ass'y
-
7-1346-76039-1 Protector main switchProtector main switch
-
8361-76080-0 Нейтральный переключательНейтральный переключатель
-
93M4-76084-0 Spacer neutral switchSpacer neutral switch
-
103B7-63731-0 WasherWasher
-
11398-76083-0 Actuator Neutral SwitchActuator Neutral Switch
-
12361-76082-0 Plate neutral switchPlate neutral switch
