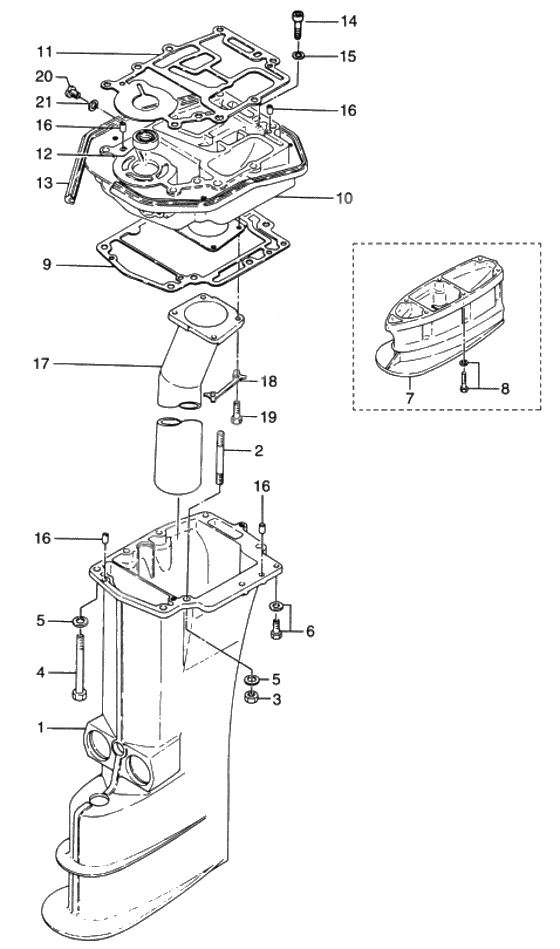

Drive shaft housing для Tohatsu M40C - 2004 года выпуска`
-
№АртикулНазвание
-
2345-61111-1 Stud bolt a
FOR TRANSOM SStud bolt a
FOR TRANSOM S -
3930113-0800 Nut
FOR TRANSOM SNut
FOR TRANSOM S -
4916113-0885 Bolt
FOR S = 7 / FOR L = 8Bolt
FOR S = 7 / FOR L = 8 -
53P0-66233-0 New partNew part
-
6910113-5620 BoltBolt
-
7345S61110-0 Extension housing ul
FOR TRANSOM ULExtension housing ul
FOR TRANSOM UL -
8910113-5840 BoltBolt
-
9345-61012-0 Gasket, drive shaft housingGasket, drive shaft housing
-
10345S01301-0 Engine baseEngine base
-
11345-01303-0 Gasket engine baseGasket engine base
-
12345-01215-0 Oil seal 17-30-8Oil seal 17-30-8
-
13345-67116-0 Seal engine baseSeal engine base
-
14910203-0640 BoltBolt
-
15941303-0600 New partNew part
-
16345-01111-0 Dowel Pin 6-12Dowel Pin 6-12
-
17345-02314-1 Exhaust pipe for sExhaust pipe for s
-
17361-02311-0 Exhaust pipe l.ll.ulExhaust pipe l.ll.ul
-
18345-02313-0 Lock plate exhaust pipeLock plate exhaust pipe
-
19910113-0625 BoltBolt
-
20910613-0808 BoltBolt
-
21332-60006-0 Gasket (8.1x15.1)Gasket (8.1x15.1)
-
1345S61020-2 Drive Shaft Housing "S"
for Transom "S"Drive Shaft Housing "S"
for Transom "S" -
1361S61030-1 Drive Shaft Housing “L"
for Transom "L", "UL"Drive Shaft Housing “L"
for Transom "L", "UL" -
2345-61111-1 Stud Bolt, Drive Shaft Housing "S"
for Transom "S"Stud Bolt, Drive Shaft Housing "S"
for Transom "S" -
3930113-0800 S Nut, Drive Shaft Housing "S"
for Transom "S"S Nut, Drive Shaft Housing "S"
for Transom "S" -
4916113-0885 Bolt
for "S"二 7 for “L” 二 8Bolt
for "S"二 7 for “L” 二 8 -
53P0-66233-0 Washer, 8.1-16T .5Washer, 8.1-16T .5
-
6910113-5620 BoltBolt
-
7345S61110-0 “ Extension Housing "UL”
for Transom "UL"“ Extension Housing "UL”
for Transom "UL" -
8910113-5840 BoltBolt
-
9345-61012-0 Gasket, Drive Shaft HousingGasket, Drive Shaft Housing
-
10345S01301-0 Engine BaseEngine Base
-
11345-01303-0 Gasket, Engine BasementGasket, Engine Basement
-
12345-01215-0 Oil Seal, 17-30-8Oil Seal, 17-30-8
-
13345-67116-0 Seal Rubber, Engine BaseSeal Rubber, Engine Base
-
14910203-0640 Bolt, Engine BaseBolt, Engine Base
-
15941303-0600 Spring WasherSpring Washer
-
16345-01111-0 Knock, 6-12Knock, 6-12
-
17345-02314-1 Exhaust Pipe, "S"Exhaust Pipe, "S"
-
17361-02311-0 UL Exhaust Pipe, "L" & "UL"UL Exhaust Pipe, "L" & "UL"
-
18345-02313-0 Lock Plate, Exhaust PipeLock Plate, Exhaust Pipe
-
19910113-0625 BoltBolt
-
20910613-0808 BoltBolt
-
21332-60006-0 Gasket, 8.1-15-1Gasket, 8.1-15-1
