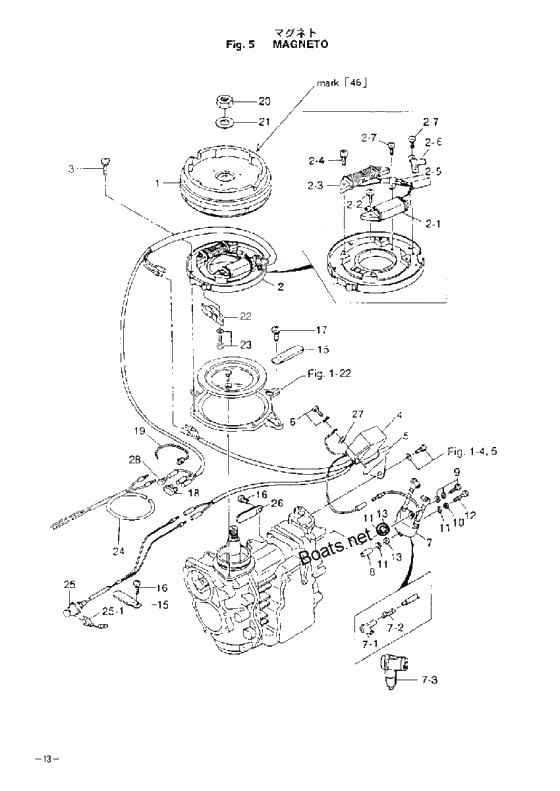

Magneto для Tohatsu M9.9D - 2002 года выпуска`
-
№АртикулНазвание
-
13G2-06001-1 Flywheel cup
FF 5114 Mark [46] 18E2/15D2/9.9D2-Flywheel cup
FF 5114 Mark [46] 18E2/15D2/9.9D2- -
23G2-06002-1 Coil plate ass'y
18E2/15D2/9.9D2-Coil plate ass'y
18E2/15D2/9.9D2- -
2-13G3-06021-1 Exciter coil setExciter coil set
-
2-2921521-6524 Stud BoltStud Bolt
-
2-33G2-06023-1 Altrenator setAltrenator set
-
2-53G2-06025-1 ClanpClanp
-
2-6350-06025-0 Holder, magneto cordHolder, magneto cord
-
2-7921521-6406 Stud BoltStud Bolt
-
3921521-6510 Stud BoltStud Bolt
-
43G2-06060-2 New part
CU 2556 18E2/15D2/9.9D2-New part
CU 2556 18E2/15D2/9.9D2- -
53G2-06061-0 Bracket c.d.unit
18E2/15D2/9.9D2-Bracket c.d.unit
18E2/15D2/9.9D2- -
6910113-5612 Bolt
or 910103-5612Bolt
or 910103-5612 -
73G2-06040-2 Ignition CoilIgnition Coil
-
7-13M2-06291-1 Plug capPlug cap
-
7-23M2-06926-0 Terminal plug capTerminal plug cap
-
7-33C7-06921-0 Prug cap (with waterproof registance)Prug cap (with waterproof registance)
-
8128-02605-1 Spacer,6-5-28.5Spacer,6-5-28.5
-
9910103-7625 BoltBolt
-
10941303-0600 New partNew part
-
11940103-0600 Washer
or 940113-0600Washer
or 940113-0600 -
12910103-0655 BoltBolt
-
13151-33159-0 Gasket,combination gaugeGasket,combination gauge
-
15309-06972-0 Clamp,6.5-47.5PClamp,6.5-47.5P
-
16921503-0610 Stud Bolt
or 921513-0610Stud Bolt
or 921513-0610 -
17922521-6510 Stud BoltStud Bolt
-
18353-76037-0 Plug Cable TerminalPlug Cable Terminal
-
19336-76091-0 Band Battery CordBand Battery Cord
-
20334-00132-0 Nut 16p1.5lNut 16p1.5l
-
21353-06821-0 Lock, lanyard stop switchLock, lanyard stop switch
-
21334-00133-0 Washer magnetoWasher magneto
-
223M3-63718-0 Throttle Cam
18E2/15D2-Throttle Cam
18E2/15D2- -
22364-63718-0 Throttle CamThrottle Cam
-
23910103-5514 BoltBolt
-
24369-76167-0 Extension cord light
OptionExtension cord light
Option -
25398-06830-0 Safety Switch Ass'ySafety Switch Ass'y
-
26398-06972-0 Clamp,6.5-67PClamp,6.5-67P
-
273C8-66308-0 New part
or 3C8-66308-0New part
or 3C8-66308-0 -
283A3-76037-0 Plug B Cable TerminalPlug B Cable Terminal
