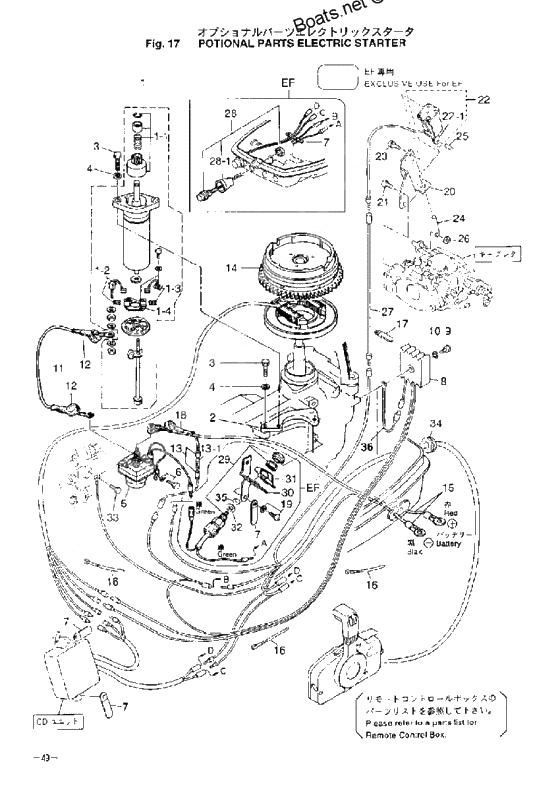

Electric starter для Tohatsu M9.9D - 2002 года выпуска
-
№АртикулНазвание
-
1350-76010-0 New part
for EP, EFNew part
for EP, EF -
1-1350-76015-0 Pinion Ass'y
for EP, EFPinion Ass'y
for EP, EF -
1-2350-76012-0 Щётка карбоновая
for EP, EFЩётка карбоновая
for EP, EF -
1-3350-76013-0 Carbon brush (-)
for EP, EFCarbon brush (-)
for EP, EF -
1-4350-76014-0 Brush Holder
for EP, EFBrush Holder
for EP, EF -
2350-76011-0 Bracket starter motor
for EP, EFBracket starter motor
for EP, EF -
3916103-0830 Bolt
for EP, EFBolt
for EP, EF -
4941303-0800 Spring Washer
for EP, EFSpring Washer
for EP, EF -
5346-76040-0 Starter Solenoid
for EP, EFStarter Solenoid
for EP, EF -
6910103-6618 Bolt
for EP, EFBolt
for EP, EF -
7398-06972-0 Clamp,6.5-67P
for EP, EFClamp,6.5-67P
for EP, EF -
83G2-76060-0 Rectifier complete
18E2/15D2/9.9D2- for EP, EFRectifier complete
18E2/15D2/9.9D2- for EP, EF -
9921503-0525 Stud Bolt
for EP, EFStud Bolt
for EP, EF -
10941303-0500 Spring Washer
for EP, EFSpring Washer
for EP, EF -
113B2-76147-1 STARTER CORD
L=200, for EP, EFSTARTER CORD
L=200, for EP, EF -
123A3-76145-0 Cap Starter Terminal
for EP, EFCap Starter Terminal
for EP, EF -
133B2-76062-0 Fuse wire ass'y
L=355, for EP, EFFuse wire ass'y
L=355, for EP, EF -
13-1346-76212-0 Fuse (15a)Fuse (15a)
-
143G2-06091-1 Flywheel cup (with ring gear)
18E2/15D2/9.9D2-, for EP, EFFlywheel cup (with ring gear)
18E2/15D2/9.9D2-, for EP, EF -
153B2-76120-0 Battery cable +/- (new style) 8.2 ft.
L=2000, for EP, EFBattery cable +/- (new style) 8.2 ft.
L=2000, for EP, EF -
3V1-76120-2 Battery cable +/- (new style) 8.2 ft.Battery cable +/- (new style) 8.2 ft.
-
16353-84398-0 Band Lead Wire
for EP: 2, for EF: 1Band Lead Wire
for EP: 2, for EF: 1 -
17309-06972-0 Clamp,6.5-47.5P
for EP, EFClamp,6.5-47.5P
for EP, EF -
183B7-76145-0 Terminal Cap
for EP, EFTerminal Cap
for EP, EF -
19921503-6612 Stud Bolt
for EP: 1, for EF: 2Stud Bolt
for EP: 1, for EF: 2 -
203G2-76055-1 Bracket,choke solenoid
for EPBracket,choke solenoid
for EP -
21921503-6512 Stud Bolt
for EPStud Bolt
for EP -
22361-76050-0 Choke Solenoid
for EPChoke Solenoid
for EP -
22-1361-76073-0 Plunger,Choke SolenoidPlunger,Choke Solenoid
-
23921503-6408 Stud Bolt
for EPStud Bolt
for EP -
243G2-76057-1 Hook,choke solenoid
for EPHook,choke solenoid
for EP -
25951403-0312 Spring Washer
for EPSpring Washer
for EP -
263C7-03271-0 O-Ring
for EPO-Ring
for EP -
27398-76049-0 Проводка
for EPПроводка
for EP -
28361-76026-0 Main Switch Ass'y
for EFMain Switch Ass'y
for EF -
28-1346-76039-1 Protector main switch
for EFProtector main switch
for EF -
29398-76080-0 Neutral Switch Ass'y
for EFNeutral Switch Ass'y
for EF -
30350-76081-0 Bracket neutral switch
for EFBracket neutral switch
for EF -
31398-76083-0 Actuator Neutral Switch
for EFActuator Neutral Switch
for EF -
323M4-76084-0 Spacer neutral switch
for EFSpacer neutral switch
for EF -
33910103-0612 New part
or 910113-0612 for EP, EFNew part
or 910113-0612 for EP, EF -
34345-76023-0 Grommet 22-2.5
for EPGrommet 22-2.5
for EP -
353B7-63731-0 Washer
for EFWasher
for EF -
363G2-76142-0 Ground cord
18E2/15D2/9.9D2-, for EP, EFGround cord
18E2/15D2/9.9D2-, for EP, EF
