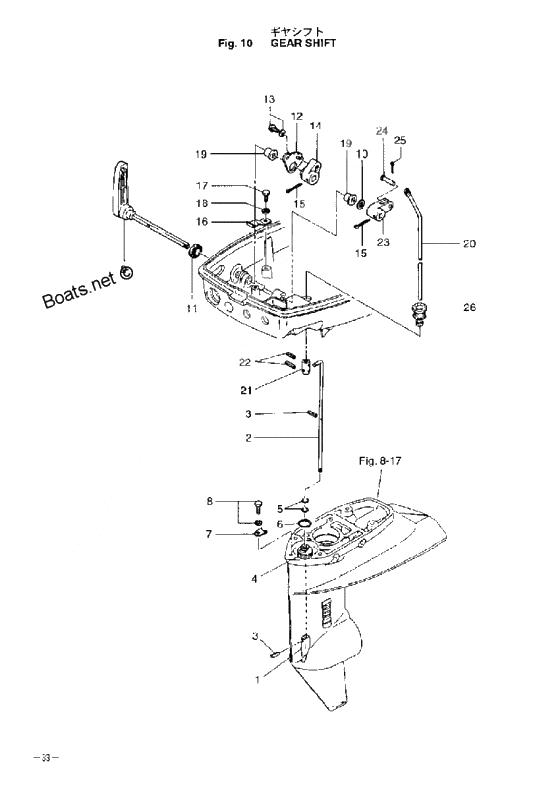

Gear shift для Tohatsu M9.9D - 2002 года выпуска`
-
№АртикулНазвание
-
13C8-66011-0 Clutch CamClutch Cam
-
2398-66012-0 Cam rod s
for Transom S""Cam rod s
for Transom S"" -
2398-66013-0 Cam Rod L
for Transom L""Cam Rod L
for Transom L"" -
2398-66014-0 Cam Rod UL
for Transom UL""Cam Rod UL
for Transom UL"" -
2398-66015-0 Cam rod ll
for Transom LL""Cam rod ll
for Transom LL"" -
3951407-0312 Spring WasherSpring Washer
-
4398-66031-0 Bushing Cam RodBushing Cam Rod
-
5332-66021-0 O-RingO-Ring
-
6336-62415-0 O-RingO-Ring
-
7332-66033-0 Retainer Cam ShiftRetainer Cam Shift
-
8910103-6512 BoltBolt
-
9350-66110-0 Shift lever ass'yShift lever ass'y
-
10941403-1200 WasherWasher
-
113K9-66137-0 Oil SealOil Seal
-
12350-66121-0 Stopper plate shift leverStopper plate shift lever
-
14350-66115-0 Adjuster shift leverAdjuster shift lever
-
16350-66112-0 Stopper shift leverStopper shift lever
-
17910114-0616 BoltBolt
-
18941303-0600 New partNew part
-
19350-67101-0 Bushing Shift LeverBushing Shift Lever
-
20350-66214-0 Shift rod sShift rod s
-
20350-66215-0 Shift rod l ll ulShift rod l ll ul
-
21350-66241-0 Joint Shift RodJoint Shift Rod
-
22951403-0312 Spring WasherSpring Washer
-
23350-66225-0 Shift Rod LeverShift Rod Lever
-
24350-66223-0 Pin shift rod leverPin shift rod lever
-
26345-66226-0 Grommet, 17-3Grommet, 17-3
