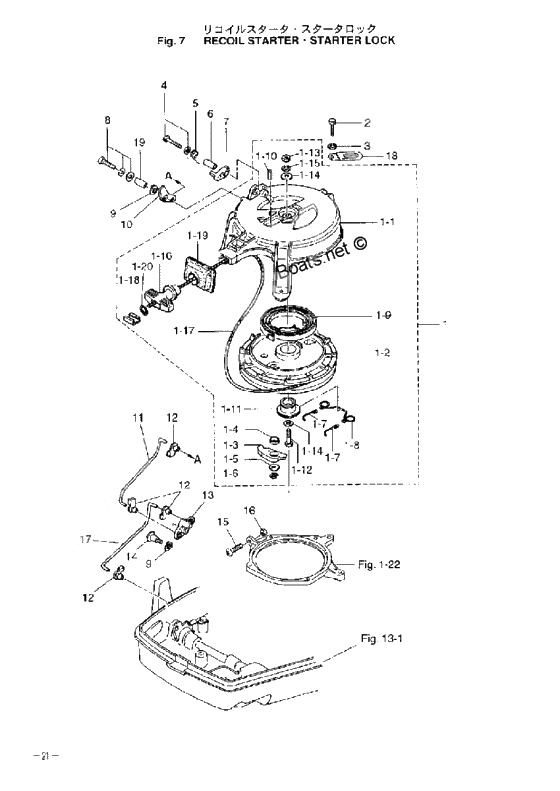

Recoil starter - starter lock для Tohatsu M9.9D - 2002 года выпуска
-
№АртикулНазвание
-
1350-05000-0 Recoil starter ass'yRecoil starter ass'y
-
1-1350-05105-0 Stater caseStater case
-
1-10951403-0316 Spring WasherSpring Washer
-
1-11350-05132-0 Вал стартераВал стартера
-
1-12910114-0635 New partNew part
-
1-13930103-0600 NutNut
-
1-14940121-0600 WasherWasher
-
1-15941322-0600 Spring WasherSpring Washer
-
1-16338-05019-0 Starter HandleStarter Handle
-
1-17350-05013-1 Starter Rope
тИЕ5 X 1600Starter Rope
тИЕ5 X 1600 -
1-18338-05131-0 Rope anchorRope anchor
-
1-19350-05116-0 Seal plate, starterSeal plate, starter
-
1-2350-05104-1 ReelReel
-
1-20350-05136-0 O-RingO-Ring
-
1-3345-05003-1 RatchetRatchet
-
1-4345-05135-1 BushingBushing
-
1-5346-67115-0 WasherWasher
-
1-6945303-0500 E-RingE-Ring
-
1-7350-05123-0 Ratchet guide aRatchet guide a
-
1-8350-05124-0 Ratchet guide bRatchet guide b
-
1-9345-05004-0 Spring WasherSpring Washer
-
3941303-0600 New partNew part
-
4921503-5430 Stud BoltStud Bolt
-
5338-05216-0 Spring starter lock shaftSpring starter lock shaft
-
6338-05255-0 Coller starter lock shaftColler starter lock shaft
-
7338-05252-0 Lock starterLock starter
-
8921503-7616 Stud BoltStud Bolt
-
9941403-0800 WasherWasher
-
10350-05253-0 Cam, starter lockCam, starter lock
-
11350-05217-0 Lock link starterLock link starter
-
12345-05223-1 Rod Snap,3.5-2Rod Snap,3.5-2
-
13350-05211-0 Throttle stopperThrottle stopper
-
14350-05227-0 Shaft, throttle stopperShaft, throttle stopper
-
17350-05222-0 Stopper link throttleStopper link throttle
-
18309-06972-0 Clamp,6.5-47.5PClamp,6.5-47.5P
-
193M2-05215-0 Coler 6.1-8-4Coler 6.1-8-4
