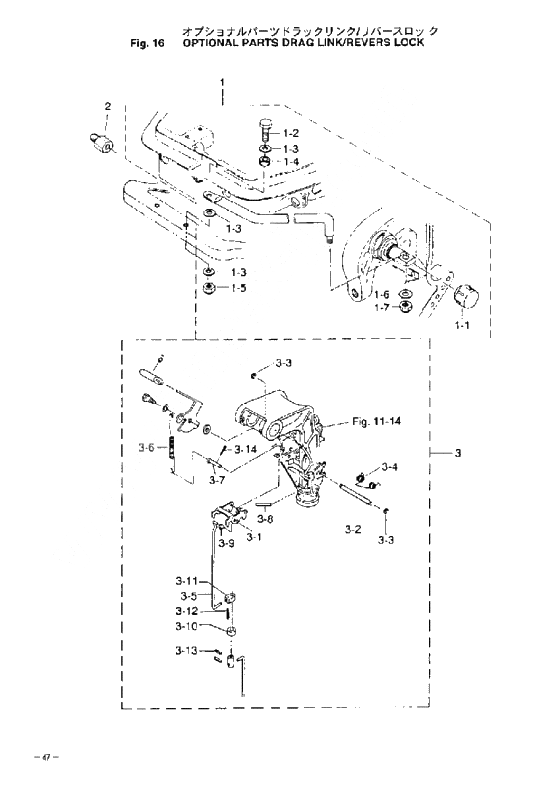

Drag link-reverse lock для Tohatsu M9.9D - 2002 года выпуска`
-
№АртикулНазвание
-
13G2-84905-0 Drag link g ass'yDrag link g ass'y
-
1-13F3-84908-0 Seal Ring Drag LinkSeal Ring Drag Link
-
1-43G2-84914-0 Coler,8.1-10.5-6.5Coler,8.1-10.5-6.5
-
1-5930403-0800 Nylon NutNylon Nut
-
1-6353-84916-0 WasherWasher
-
1-7353-84918-0 Nylon Nut 3/8Nylon Nut 3/8
-
2353-84904-0 Spacer Drag LinkSpacer Drag Link
-
33G2-66901-0 Shift lever,reverse lock kitShift lever,reverse lock kit
-
3-13B2-66322-1 Reverse LockReverse Lock
-
3-10350-66337-0 Spacer reverse lock linkSpacer reverse lock link
-
3-11350-66302-0 Joint reverse lock linkJoint reverse lock link
-
3-12951503-0212 Split PinSplit Pin
-
3-13951403-0312 Spring WasherSpring Washer
-
3-23G2-66324-0 Shaft Reverse Lock BShaft Reverse Lock B
-
3-3945303-0500 E-RingE-Ring
-
3-4369-62434-0 Spring Tilt StopperSpring Tilt Stopper
-
3-53G2-66305-0 Link reverse lock bLink reverse lock b
-
3-63G2-62434-0 Spring b, reverse lock leverSpring b, reverse lock lever
-
3-7350-66223-0 Pin shift rod leverPin shift rod lever
-
3-8951403-0535 Spring WasherSpring Washer
-
3-9345-05224-0 Rod snap,5-2.5Rod snap,5-2.5
