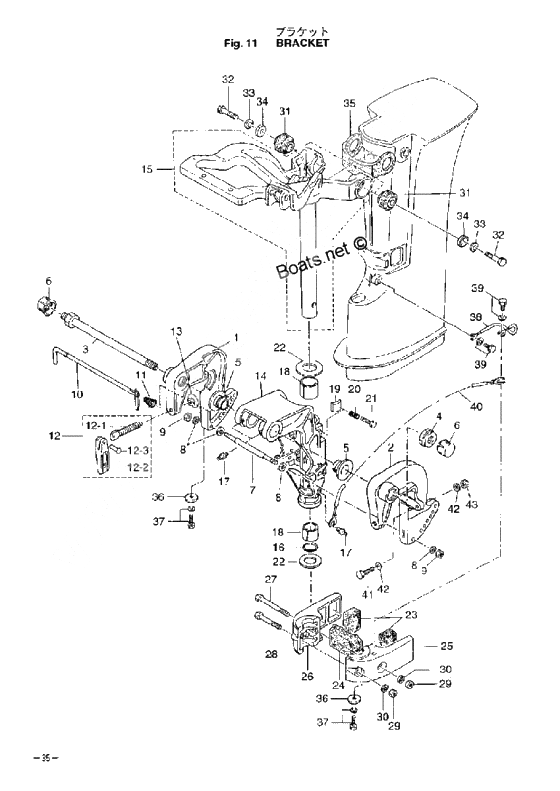

Bracket для Tohatsu M9.9D - 2002 года выпуска
-
№АртикулНазвание
-
13G2S62112-0 Stern braket r
StarboardStern braket r
Starboard -
23G2S62113-0 Stern braket l
PortStern braket l
Port -
3346-62191-0 Bracket Bolt Ass'yBracket Bolt Ass'y
-
4346-62124-0 Bracket Nut(Nylon)Bracket Nut(Nylon)
-
5349-62126-0 Bushing, Bracket BoltBushing, Bracket Bolt
-
6346-62127-0 Cap,Bracket BoltCap,Bracket Bolt
-
7350-62117-1 Distance PieceDistance Piece
-
8940113-0600 WasherWasher
-
10350-62121-1 Thrust RodThrust Rod
-
11369-62122-2 Spring Thrust RodSpring Thrust Rod
-
123M3S62100-0 Clamp screw kitClamp screw kit
-
3V1Q62105-0 Clamp screw kitClamp screw kit
-
12-1398-62103-0 Винт струбциныВинт струбцины
-
12-33C8-62104-1 Rivet3-22Rivet3-22
-
13332-62101-0 Pad clamp screwPad clamp screw
-
143G2S62310-0 Поворотный кронштейнПоворотный кронштейн
-
15350S62010-1 Steering shaft ass'ySteering shaft ass'y
-
16350-62415-0 O-RingO-Ring
-
17344-67177-0 МасленкаМасленка
-
18350-62417-0 Bushing Bracket ShaftBushing Bracket Shaft
-
19345-62441-0 Friction PlateFriction Plate
-
20346-62421-1 Spring Friction PlateSpring Friction Plate
-
22350-62423-0 Thrust PlateThrust Plate
-
23350-61302-0 Mount rubber lower aMount rubber lower a
-
24350-61336-0 Mount rubber lower bMount rubber lower b
-
25350S61402-1 Mount bracket lMount bracket l
-
26350S61401-0 Mount bracket rMount bracket r
-
303P0-66233-0 New partNew part
-
31350-61301-0 Mount rubber upperMount rubber upper
-
32398-61307-0 Bolt mount rubberBolt mount rubber
-
34398-61308-0 WasherWasher
-
35350-61337-0 Damper RubberDamper Rubber
-
36338-60218-2 New partNew part
-
38398-62396-0 Ground WireGround Wire
-
39910113-5612 BoltBolt
-
403A3-62396-0 New partNew part
