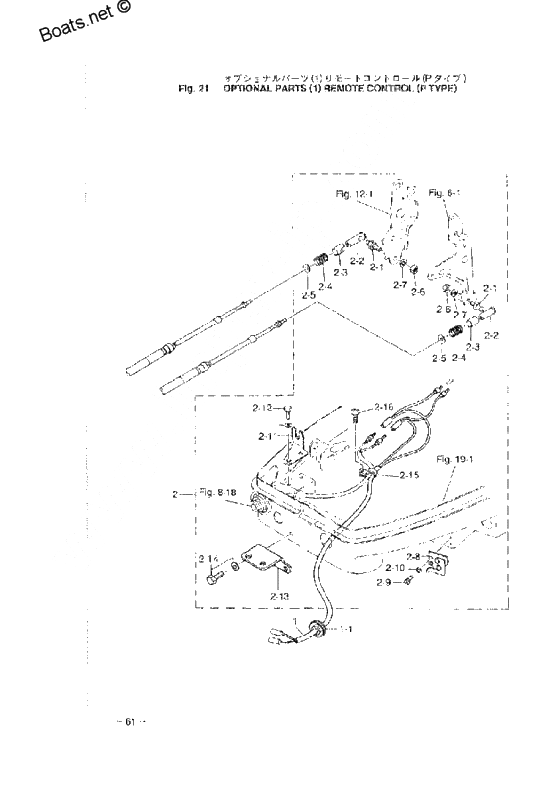

Remote control для Tohatsu M35C - 2002 года выпуска`
![](/wa-data/public/shop/sheme/tohatsu/d26f394cf4133ac549c79bbc2c827b84.png)
-
№АртикулНазвание
-
1361-83858-0 R.c. Stop Cord 5.9m
For 14 feet or exceeding cableR.c. Stop Cord 5.9m
For 14 feet or exceeding cable -
1-1345-76023-0 Grommet 22-2.5Grommet 22-2.5
-
2361-83880-3 S. r. c. fitting partsS. r. c. fitting parts
-
2-1345-83721-0 Шаровое соединениеШаровое соединение
-
2-10941303-0500 Spring WasherSpring Washer
-
2-11345-83821-0 Holder cableHolder cable
-
2-12910103-6616 BoltBolt
-
2-13361-83830-0 Steering Hook PlateSteering Hook Plate
-
2-14910103-6820 BoltBolt
-
2-15336-06973-0 Clamp Lead WireClamp Lead Wire
-
2-16921503-0612 Stud BoltStud Bolt
-
2-23A1-83722-0 Ball holderBall holder
-
2-3332-83723-0 Cap ball jointCap ball joint
-
2-4332-83724-0 Spring ball jointSpring ball joint
-
2-5332-83725-0 WasherWasher
-
2-6930103-0600 NutNut
-
2-7941303-0600 New partNew part
-
2-8345-83820-0 Cable clip ass'yCable clip ass'y
-
2-9910403-0518 BoltBolt
