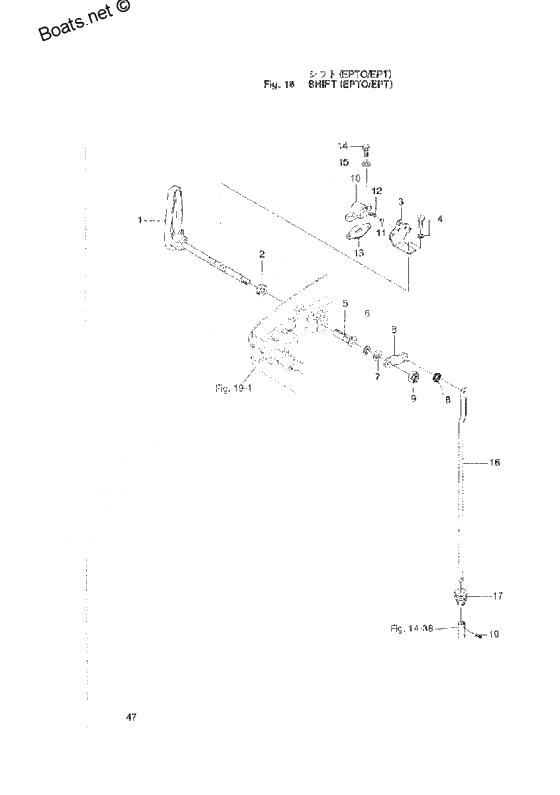

Shift (epto-ept) для Tohatsu M35C - 2002 года выпуска`
-
№АртикулНазвание
-
1345S66110-1 Shift LeverShift Lever
-
2345-66137-0 Oil seal, 10-20-4
10 - 20 - 4mmOil seal, 10-20-4
10 - 20 - 4mm -
3345-66121-0 Lock plate,shift leverLock plate,shift lever
-
4910403-6512 BoltBolt
-
5345-67101-0 BushingBushing
-
6945303-0800 E-RingE-Ring
-
7332-61315-0 WasherWasher
-
8345-66225-0 Shift Rod LeverShift Rod Lever
-
9930403-1000 Nylon NutNylon Nut
-
10345-66115-0 Holder shift lever stopperHolder shift lever stopper
-
11965002-1605 BallBall
-
12332-66112-0 Spring stopper ballSpring stopper ball
-
13345-66119-0 Shim shift lever stopper holder
t=0.2Shim shift lever stopper holder
t=0.2 -
14910114-0618 BoltBolt
-
15940103-0600 WasherWasher
-
16348-66211-0 Shift RodShift Rod
-
17345-66226-0 Grommet, 17-3Grommet, 17-3
-
18332-66021-0 O-RingO-Ring
-
19951403-0312 Spring WasherSpring Washer
