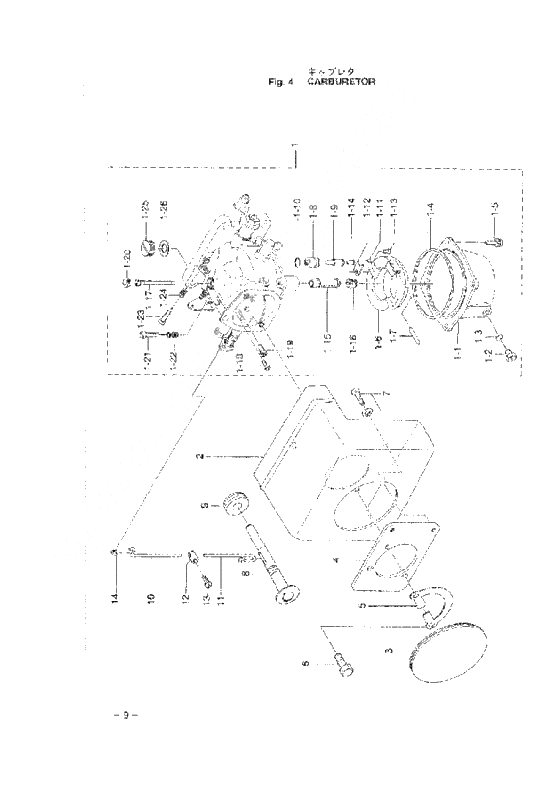

Carburetor для Tohatsu M35C - 2002 года выпуска
-
№АртикулНазвание
-
1345-03200-0 Carburetor ass'yCarburetor ass'y
-
1-1336-03221-0 Float ChamberFloat Chamber
-
1-10345-03243-0 O-RingO-Ring
-
1-11344-03244-0 ClipClip
-
1-12334-03241-0 Clip plateClip plate
-
1-13345-03234-0 Stud BoltStud Bolt
-
1-14334-03242-0 Игольчатый клапанИгольчатый клапан
-
1-15345-03252-0 Main NozzleMain Nozzle
-
1-16345-03251-1 Жиклер главный
STDЖиклер главный
STD -
1-17345-03254-0 Жиклер пропускнойЖиклер пропускной
-
1-18345-03253-0 Main air jet(#220)Main air jet(#220)
-
1-19345-03255-0 Pilot air jet(#110)Pilot air jet(#110)
-
1-2345-03292-0 Drain ScrewDrain Screw
-
1-20345-03261-0 Plug screw aPlug screw a
-
1-21345-03265-0 Stop ScrewStop Screw
-
1-22346-03267-0 Spring aSpring a
-
1-23345-03266-0 Adjust ScrewAdjust Screw
-
1-24346-03268-0 Spring BSpring B
-
1-25345-03263-0 Plug screw bPlug screw b
-
1-26345-03262-0 WasherWasher
-
1-3336-03293-0 O-RingO-Ring
-
1-4336-03222-0 O-RingO-Ring
-
1-5922503-6412 Stud BoltStud Bolt
-
1-6334-03231-1 FloatFloat
-
1-7334-03232-0 Hing pin floatHing pin float
-
1-8345-03240-0 Float ValveFloat Valve
-
1-9346-03240-0 Float ValveFloat Valve
-
2345-02411-0 Air SilencerAir Silencer
-
3345-02415-0 Lid air silencerLid air silencer
-
4345-02416-0 Plate air silencerPlate air silencer
-
5345-02417-1 Lock plate air silencerLock plate air silencer
-
6910114-0616 BoltBolt
-
7921503-5508 Stud BoltStud Bolt
-
8345-67151-0 Choke RodChoke Rod
-
9345-67193-0 Grommet,16-2.5Grommet,16-2.5
-
10345-67191-0 Rod a, choke linkRod a, choke link
-
11345-67192-0 Link b choke rodLink b choke rod
-
12345-67194-0 Connector choke rod linkConnector choke rod link
-
13921503-0408 Stud BoltStud Bolt
-
14345-67195-1 Bushing coke link rodBushing coke link rod
