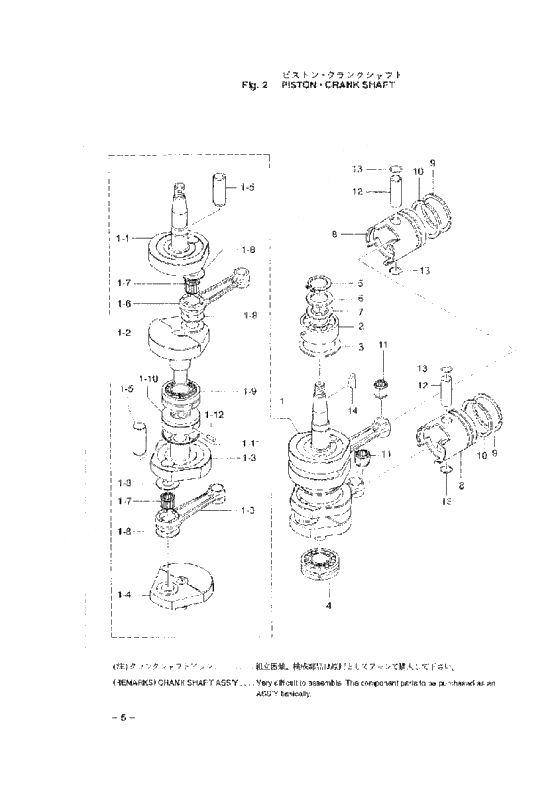

Piston & crank shaft для Tohatsu M35C - 2002 года выпуска
-
№АртикулНазвание
-
1348-00030-0 Crankshaft Ass'yCrankshaft Ass'y
-
1-1348-00031-0 Вал коленчатыйВал коленчатый
-
1-10345-00051-0 Labyrinth packingLabyrinth packing
-
1-11345-00053-0 O-RingO-Ring
-
1-2348-00032-0 Crankshaft bCrankshaft b
-
1-3348-00033-0 Кольцо стопорноеКольцо стопорное
-
1-4348-00034-0 Crankshaft dCrankshaft d
-
1-5348-00061-0 Crank pinCrank pin
-
1-6345-00040-1 Connecting RodConnecting Rod
-
1-7345-00043-0 Needle bearing 35-55-20Needle bearing 35-55-20
-
1-8345-00045-0 Washer, big end bearingWasher, big end bearing
-
1-9345-00114-0 Ball bearing , 355520Ball bearing , 355520
-
2345-00113-0 Ball bearing 5206Ball bearing 5206
-
3345-00115-0 Retainer 56-66-1.6Retainer 56-66-1.6
-
6345-00116-0 Spacer 30.2-40-2.3Spacer 30.2-40-2.3
-
7345-00141-0 Shim - no longer available
AR =0.1, 0.15, 0.2, 0.25Shim - no longer available
AR =0.1, 0.15, 0.2, 0.25 -
8361-00001-0 Piston (std)Piston (std)
-
8361-00004-0 Piston, 0. 5mm 0/s
OptionPiston, 0. 5mm 0/s
Option -
9361-00014-0 Piston ring, 0.5mm 0/s
OptionPiston ring, 0.5mm 0/s
Option -
9361-00011-0 Кольцо поршняКольцо поршня
-
10345-00011-0 Поршневые кольцаПоршневые кольца
-
10345-00014-0 Поршневые кольца
OptionПоршневые кольца
Option -
11345-00042-0 Needle Bearing 17-21-27Needle Bearing 17-21-27
-
12345-00021-0 Палец поршняПалец поршня
-
13334-00024-1 Clip, Piston PinClip, Piston Pin
-
14334-00131-0 Key MagnetoKey Magneto
