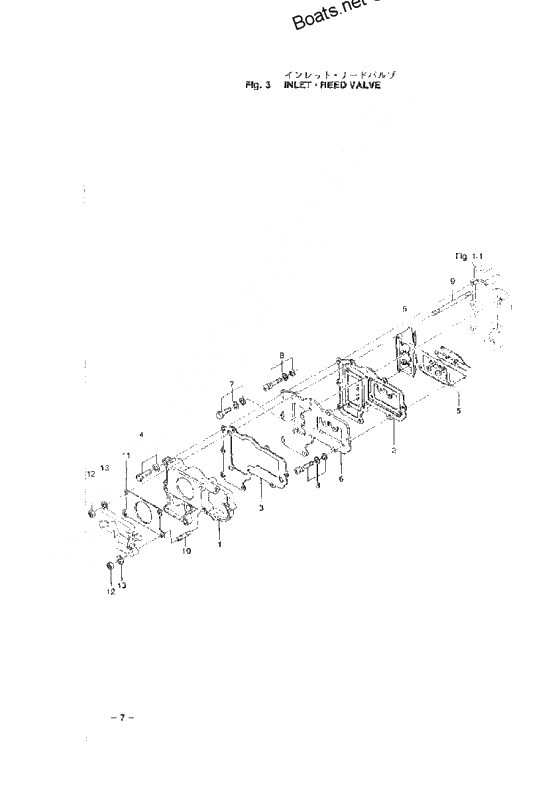

Inlet reed valve для Tohatsu M35C - 2002 года выпуска
-
№АртикулНазвание
-
1345B02010-0 Inlet Manifold
SGInlet Manifold
SG -
2345-02104-0 Gasket a inlet manifoldGasket a inlet manifold
-
3345-02105-0 Gasket b inlet manifoldGasket b inlet manifold
-
5345-02100-1 Reed Valve Ass'yReed Valve Ass'y
-
6345-02106-0 Reed plate adaptorReed plate adaptor
-
7910121-7620 BoltBolt
-
8921521-7412 Stud BoltStud Bolt
-
9915321-0655 Stud BoltStud Bolt
-
10915321-0620 Stud BoltStud Bolt
-
11345-02011-0 Gasket carburetorGasket carburetor
-
12930103-0600 NutNut
-
13941303-0600 New partNew part
Все узлы модели:
- Accessories
- Assembly kit
- Assembly, kit (ef type)
- Assembly, kit (ep type)
- Bar handle
- Bracket
- Carburetor
- Cylinder crank case assembly
- Drive shaft housing
- Electric starter (ep type)
- Electric starter
- Fuel pump
- Fuel tank (remote)
- Gear case (drive shaft)
- Gear case (propeller shaft)
- • Inlet reed valve
- Magento
- Meter
- Motor cover
- Piston & crank shaft
- Recoil starter
- Remote control
- Reverse lock
- Shift (epto-ept)
- Starter lock
- Throttle mechanism
