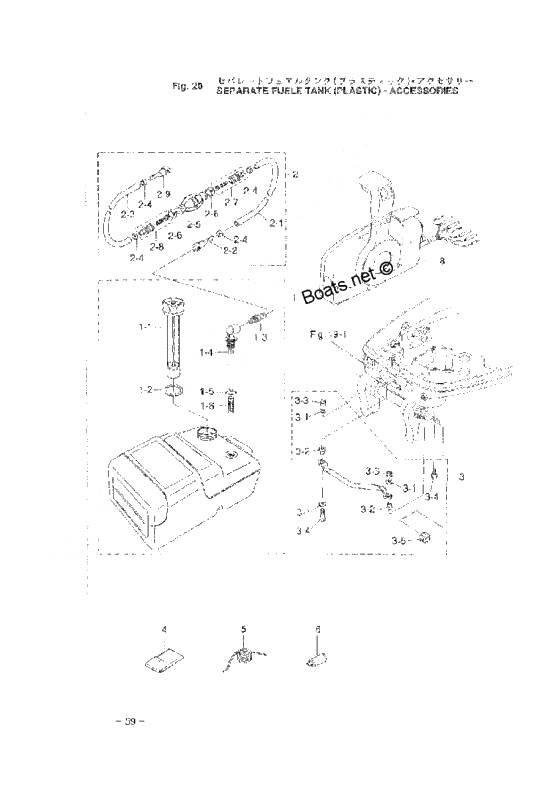

Fuel tank (remote) для Tohatsu M35C - 2002 года выпуска
-
№АртикулНазвание
-
13C7-70177-0 New partNew part
-
1-13C7-70050-0 Fuel gauge vented cap ass'yFuel gauge vented cap ass'y
-
1-23C7-70021-0 Cap gasketCap gasket
-
1-33E0-70270-0 New partNew part
-
1-43C7-70155-0 Fuel PickupFuel Pickup
-
1-53C7-70199-0 O-RingO-Ring
-
1-63C7-70113-0 FilterFilter
-
23B7-70200-3 New partNew part
-
2-23B2-70281-0 New partNew part
-
2-4332-70201-0 ClampClamp
-
2-53C7-70211-0 Primer BulbPrimer Bulb
-
2-63C7-70217-0 ClampClamp
-
2-73C7-70220-1 Joint A Ass'y InJoint A Ass'y In
-
2-83C7-70224-1 Joint A Ass'y OutJoint A Ass'y Out
-
2-93B2-70250-1 New partNew part
-
3361-84905-1 Drag link b
EP type: STDDrag link b
EP type: STD -
3-1353-84916-0 Washer
EP Type: STDWasher
EP Type: STD -
3-2361-84914-0 Sperser link b ass'y
EP Type: STDSperser link b ass'y
EP Type: STD -
3-3353-84918-0 Nylon Nut 3/8
EP Type: STDNylon Nut 3/8
EP Type: STD -
3-4353-84917-0 Bolt
EP Type: STDBolt
EP Type: STD -
3-53F3-84908-0 Seal Ring Drag Link
EP Type: STDSeal Ring Drag Link
EP Type: STD -
4332-72100-0 Tool assyTool assy
-
5332-72201-0 Safety RopeSafety Rope
-
6336-60007-0 New partNew part
-
83B7-84350-1 Single remote control box ass'y(rc5c)
UNIQUE EP Type: STDSingle remote control box ass'y(rc5c)
UNIQUE EP Type: STD
