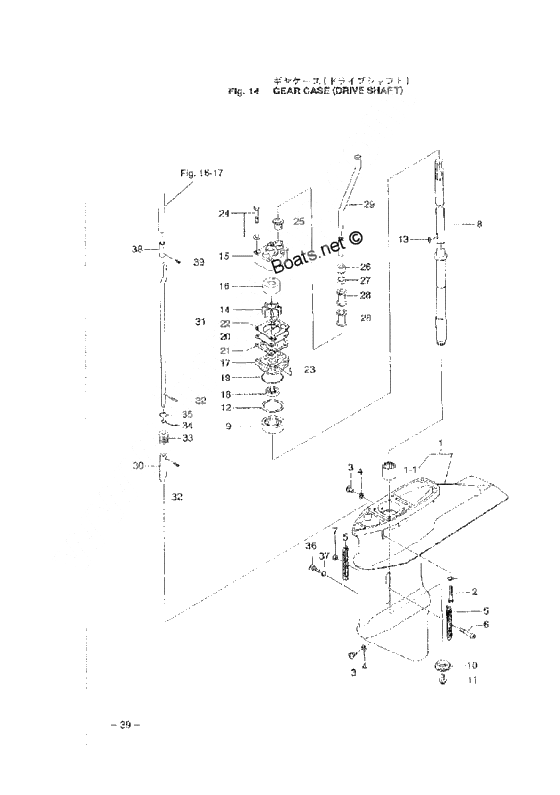

Gear case (drive shaft) для Tohatsu M35C - 2002 года выпуска`
-
№АртикулНазвание
-
1361S60000-0 Gear case ass'yGear case ass'y
-
1-1345-60211-0 Needle Bearing 22-30-30Needle Bearing 22-30-30
-
3332-60005-1 Oil plugOil plug
-
332-60005-2 Oil plugOil plug
-
4332-60006-0 Gasket (8.1x15.1)Gasket (8.1x15.1)
-
5345-60206-0 Water StrainerWater Strainer
-
6921503-0440 Stud BoltStud Bolt
-
8345-64301-0 Drive Shaft SDrive Shaft S
-
8345-64302-0 Drive shaft lDrive shaft l
-
8345-64304-0 Drive shaft llDrive shaft ll
-
8345-64303-0 Drive Shaft ULDrive Shaft UL
-
9345-60213-0 Ball bearing, 32304Ball bearing, 32304
-
10345-64020-1 Bevel Gear BBevel Gear B
-
11345-64025-0 New partNew part
-
12345-64081-0 Shim, 41-51.5-0.1Shim, 41-51.5-0.1
-
12345-64083-0 Shim,41-51.5-0.3Shim,41-51.5-0.3
-
12345-64084-0 Shim,41-51.5-0.5Shim,41-51.5-0.5
-
13332-65022-0 Key, pump impellerKey, pump impeller
-
14345-65021-0 Крыльчатка водной помпыКрыльчатка водной помпы
-
15348-65016-1 Upper Pump CaseUpper Pump Case
-
16348-65011-0 Liner, pump caseLiner, pump case
-
17348-65017-1 Pump Case LowerPump Case Lower
-
18332-60111-0 Oil seal. 17-33-9.5Oil seal. 17-33-9.5
-
19345-65015-0 O-RingO-Ring
-
20348-65025-0 Guide plate, water pumpGuide plate, water pump
-
21348-65029-1 Gasket, pump guide plateGasket, pump guide plate
-
22348-65018-0 Прокладка насосаПрокладка насоса
-
23334-65012-0 СтопорСтопор
-
253B7-65014-0 Lower seal rubber, water pipeLower seal rubber, water pipe
-
27345-65205-0 Collar, 18-20-4.5Collar, 18-20-4.5
-
28346-65204-0 Lock Rubber Water Pipe
Transum L, LL, ULLock Rubber Water Pipe
Transum L, LL, UL -
28345-65204-0 Grommet b water pipe
Transum SGrommet b water pipe
Transum S -
29345-65110-1 Water Pipe LWater Pipe L
-
29345-65130-1 Water pipe llWater pipe ll
-
29345-65120-1 Water Pipe ULWater Pipe UL
-
29345-65100-1 Water pipe sWater pipe s
-
30348-66011-0 Clutch CamClutch Cam
-
31348-66015-0 Cam rod llCam rod ll
-
31348-66014-0 Cam Rod ULCam Rod UL
-
31348-66012-0 Cam rod sCam rod s
-
31348-66013-0 Cam Rod LCam Rod L
-
32951403-0316 Spring WasherSpring Washer
-
33345-66031-1 Cam shaft bushingCam shaft bushing
-
34345-66021-0 O-RingO-Ring
-
35332-66032-0 O?????2.4-15.4O?????2.4-15.4
-
36301-66024-0 Stopper cam shaft bushingStopper cam shaft bushing
-
37301-66025-0 Gasket cam shaft bushingGasket cam shaft bushing
-
38345-66241-0 Connector, shift rodConnector, shift rod
-
39951403-0312 Spring WasherSpring Washer
