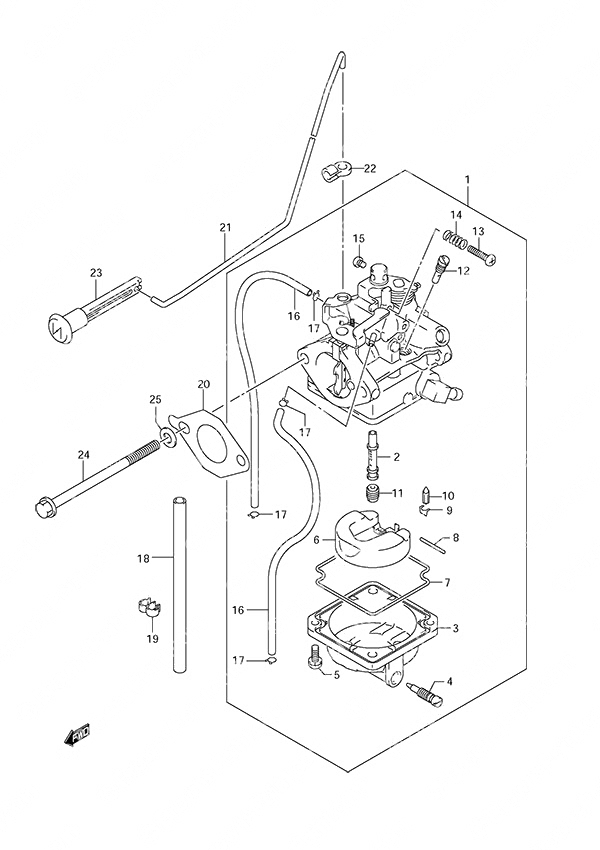

Fig. 7 - Carburetor для Suzuki DF 6 - 2006 года выпуска
-
№АртикулНазвание
-
113200-91JB1-000 Carburetor AssemblyCarburetor Assembly
-
213236-91J20-000 • Main Nozzle• Main Nozzle
-
313245-91J00-000 • Float Chamber (NLA)• Float Chamber (NLA)
-
413279-91J00-000 • Drain Screw• Drain Screw
-
513247-91J00-000 • Float Chamber Screw (NLA)• Float Chamber Screw (NLA)
-
613250-91J00-000 • Carburetor Float• Carburetor Float
-
713251-91J00-000 • Float Chamber Gasket• Float Chamber Gasket
-
813254-91J00-000 • Float Pin• Float Pin
-
913375-43E00-000 • Valve Clip• Valve Clip
-
1013371-91J10-000 • Needle Valve• Needle Valve
-
11-109491-78010-000 • Main Jet #78• Main Jet #78
-
11-209491-75012-000 • Main Jet #75
High Altitude Spec• Main Jet #75
High Altitude Spec -
12-109492-38008-000 • Pilot Jet #38• Pilot Jet #38
-
12-209492-35029-000 • Pilot Jet #35
High Altitude Spec• Pilot Jet #35
High Altitude Spec -
1313534-91J00-000 • Throttle Stop Screw (NLA)• Throttle Stop Screw (NLA)
-
1413268-91J10-000 • Stop Screw Spring (NLA)• Stop Screw Spring (NLA)
-
1513535-91J00-000 • Screw• Screw
-
1613277-91J00-000 • Air Vent Hose• Air Vent Hose
-
1713276-91J00-000 • Clip• Clip
-
1809351-60802-200 Protector (NLA)Protector (NLA)
-
1909408-00200-000 ClampClamp
-
2013125-91J10-000 Carburetor GasketCarburetor Gasket
-
2113413-91J20-000 Choke Rod (NLA)Choke Rod (NLA)
-
2213436-91J00-000 Choke Rod ConnectorChoke Rod Connector
-
2313631-91J00-000 Choke KnobChoke Knob
-
2401547-06857-000 Bolt (6x5)Bolt (6x5)
-
2508322-01067-000 Washer (6.5x13x1.0)Washer (6.5x13x1.0)
