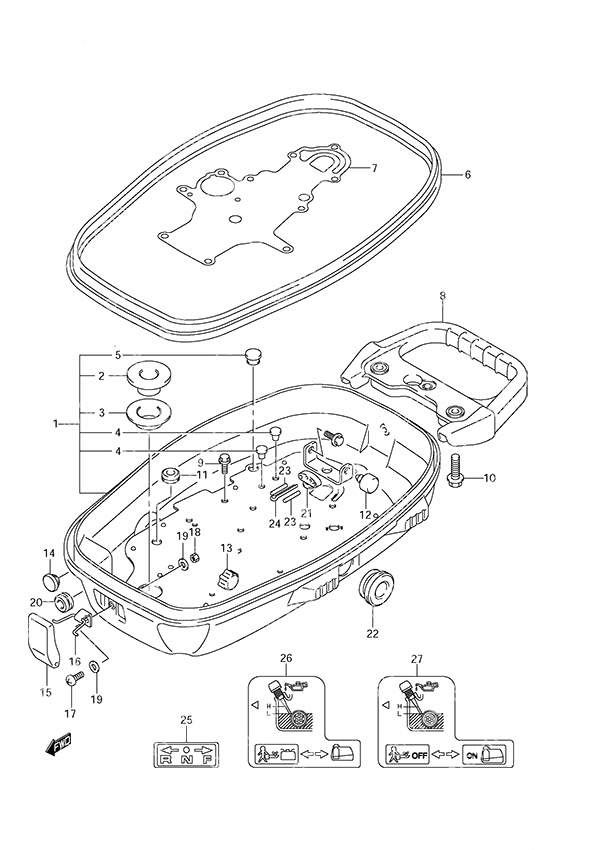

Fig. 26 - Lower Cover для Suzuki DF 6 - 2006 года выпуска
-
№АртикулНазвание
-
161100-91J30-YR9 Lower Cover Assembly (NLA)Lower Cover Assembly (NLA)
-
265132-91J00-000 • Cushion (NLA)• Cushion (NLA)
-
365197-91J10-000 • Fuel Tank Holder (NLA)• Fuel Tank Holder (NLA)
-
409250-06005-000 • Plug• Plug
-
509250-12004-000 • Plug• Plug
-
661112-91JL0-000 Replaced by 61112-91J10Replaced by 61112-91J10
-
761126-91J01-000 Lower Cover Plate GasketLower Cover Plate Gasket
-
861950-91J20-000 Carrying HandleCarrying Handle
-
909116-06094-000 Bolt (6x15)Bolt (6x15)
-
1029103-93J30-000 Bolt (8x25)Bolt (8x25)
-
1109308-08011-000 GrommetGrommet
-
1261151-91J11-000 CushionCushion
-
1361151-91J01-000 CushionCushion
-
1561611-91J11-000 Engine Cover FastenerEngine Cover Fastener
-
1661640-91J10-000 Fastener LeverFastener Lever
-
1709125-05132-000 Screw (5x14) (NLA)Screw (5x14) (NLA)
-
1809140-05005-000 NutNut
-
1909160-05029-000 Washer (5.5x10x0.8)Washer (5.5x10x0.8)
-
2061185-91J00-000 Throttle Cable Grommet (NLA)Throttle Cable Grommet (NLA)
-
2263624-91J00-000 Oil Level Gauge GrommetOil Level Gauge Grommet
-
2521131-94J00-YAY Clutch Shift MarkClutch Shift Mark
-
2661211-91J30-000 Fuel Cock Mark (NLA)Fuel Cock Mark (NLA)
