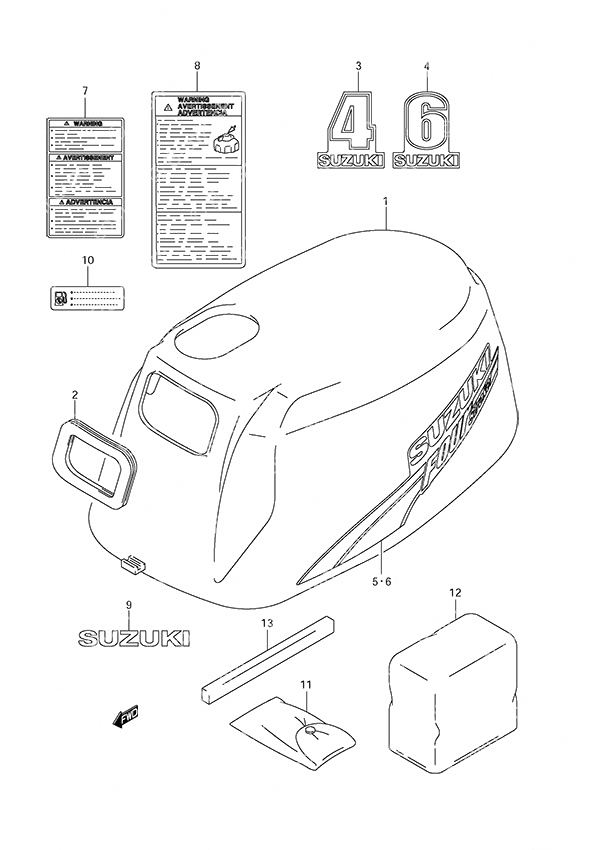

Fig. 27 - Engine Cover для Suzuki DF 6 - 2006 года выпуска
-
№АртикулНазвание
-
161411-91J10-0EP Upper Engine CoverUpper Engine Cover
-
261622-91J40-000 Recoil Starter SealRecoil Starter Seal
-
461435-91J20-000 Rear Emblem Mark DF6 (NLA)Rear Emblem Mark DF6 (NLA)
-
561443-91J20-000 Starboard Engine Cover StripeStarboard Engine Cover Stripe
-
661453-91J20-000 Port Engine Cover StripePort Engine Cover Stripe
-
761458-99E31-000 Engine Cover LabelEngine Cover Label
-
968271-91J00-Y2D Suzuki EmblemSuzuki Emblem
-
1069716-99E14-000 Fuel Limitation LabelFuel Limitation Label
-
1109800-01016-000 Tool SetTool Set
-
1268110-96110-000 Weather Cover (NLA)Weather Cover (NLA)
