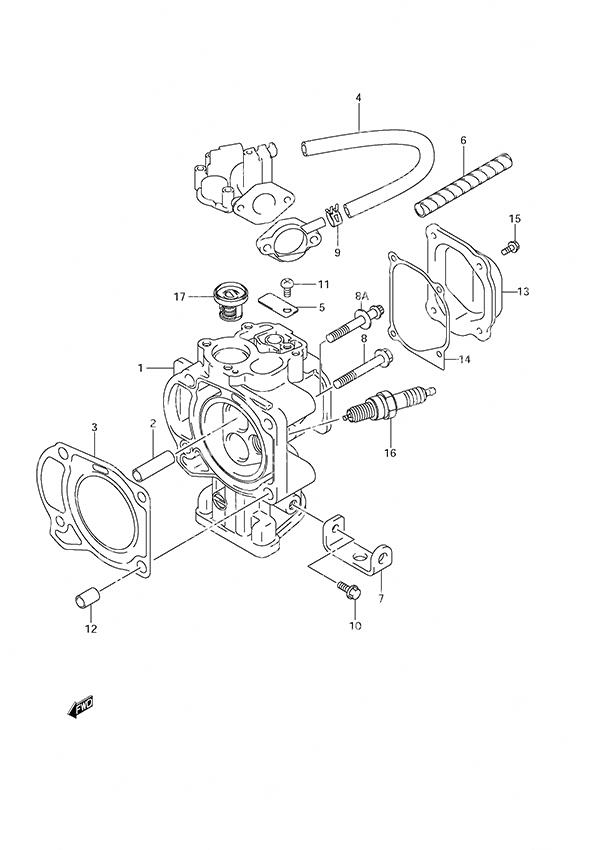

Fig. 1 - Cylinder Head для Suzuki DF 6 - 2006 года выпуска
-
№АртикулНазвание
-
111110-91J11-000 Cylinder HeadCylinder Head
-
211114-90980-000 • Valve Guide• Valve Guide
-
311141-91JL0-000 Cylinder Head GasketCylinder Head Gasket
-
411174-91J00-000 Breather Hose (NLA)Breather Hose (NLA)
-
511452-91J00-000 Reed ValveReed Valve
-
618498-99E11-000 Hose Protector (L:610)
L:610->180Hose Protector (L:610)
L:610->180 -
761827-91J00-000 Lower Cover Holder (NLA)Lower Cover Holder (NLA)
-
8A11117-91JL0-000 Cylinder Head BoltCylinder Head Bolt
-
909401-11424-000 ClipClip
-
1001550-06167-000 Bolt (6x16)Bolt (6x16)
-
1102112-0612A-000 Screw (6x12)Screw (6x12)
-
1204211-11169-000 Dowel Pin (11x16)Dowel Pin (11x16)
-
1311171-91J00-000 Cylinder Head Cover (NLA)Cylinder Head Cover (NLA)
-
1411189-91J00-000 Cylinder Head Cover GasketCylinder Head Cover Gasket
-
1509103-06120-000 Bolt (6x12) (NLA)Bolt (6x12) (NLA)
-
1609482-00299-000 NGK BPR6ES Spark PlugNGK BPR6ES Spark Plug
-
1717670-91J11-000 Thermostat (50c)Thermostat (50c)
