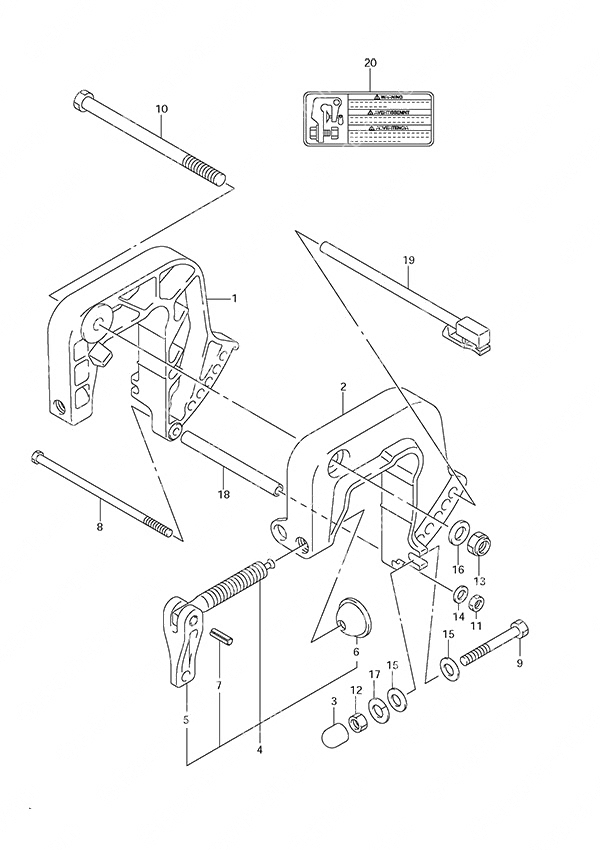

Fig. 20 - Clamp Bracket для Suzuki DF 6 - 2006 года выпуска
-
№АртикулНазвание
-
141111-91J20-0EP Starboard Clamp BracketStarboard Clamp Bracket
-
241121-91J20-0EP Port Clamp BracketPort Clamp Bracket
-
341153-96300-000 Transom Bolt Cap (NLA)Transom Bolt Cap (NLA)
-
441210-986L1-000 Clamp Screw AssemblyClamp Screw Assembly
-
541212-91J00-000 • Clamp Handle• Clamp Handle
-
641213-94J01-000 • Clamp Plate• Clamp Plate
-
709205-06007-000 • Spring Pin (6x25)• Spring Pin (6x25)
-
809100-06177-000 Bolt (6x140)Bolt (6x140)
-
909100-08239-000 Bolt (8x90)Bolt (8x90)
-
1009100-10217-000 Bolt (10x150)Bolt (10x150)
-
1129141-93J00-000 Nut (6mm)Nut (6mm)
-
1209140-08023-XC0 Nut (8mm)Nut (8mm)
-
1309159-10050-000 NutNut
-
1409160-06082-000 Washer (6.5x13x1.0)Washer (6.5x13x1.0)
-
1509160-08081-000 Washer (8.5x23x1.5)Washer (8.5x23x1.5)
-
1609160-10082-000 Washer (10.5x19x2.0)Washer (10.5x19x2.0)
-
1729162-93J10-000 Lock WasherLock Washer
-
1809180-06163-000 SpacerSpacer
-
1945420-92DL0-000 Tilt Lock PinTilt Lock Pin
-
2069911-91J20-000 Clamp Bracket Mark (NLA)Clamp Bracket Mark (NLA)
