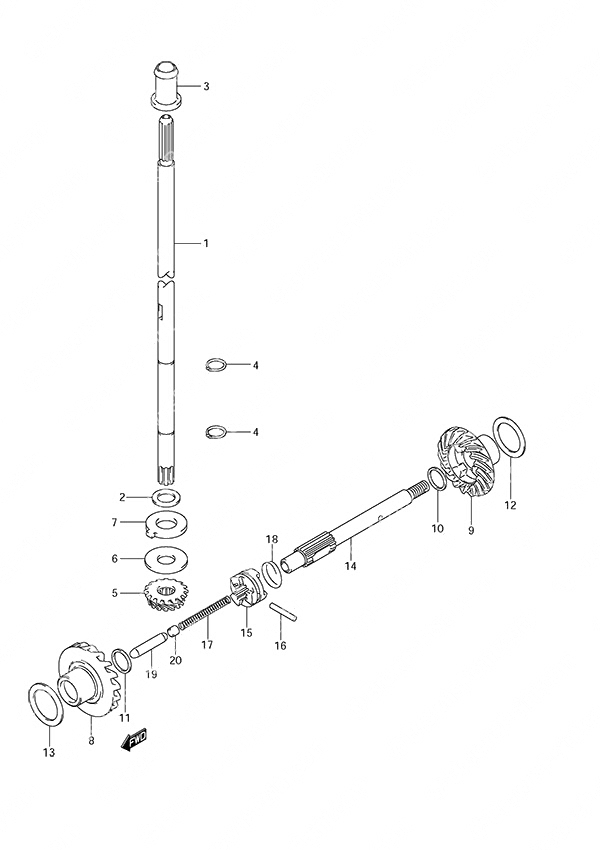

Fig. 25 - Drive Shaft для Suzuki DF 6 - 2006 года выпуска
-
№АртикулНазвание
-
1-157111-91J21-000 Drive Shaft (S)
w/Transom (S)Drive Shaft (S)
w/Transom (S) -
1-257111-91J31-000 Drive Shaft (L)
w/Transom (L)Drive Shaft (L)
w/Transom (L) -
209181-10156-000 WasherWasher
-
357130-91J00-000 Drive Shaft Bushing
w/Transom (L)Drive Shaft Bushing
w/Transom (L) -
409380-10003-000 CirclipCirclip
-
557311-98601-000 Pinion Gear (NLA)Pinion Gear (NLA)
-
5-109160-10088-000 Washer (1.70) (NLA)
Pinion AdjWasher (1.70) (NLA)
Pinion Adj -
6-209160-10089-000 Washer (1.80) (NLA)Washer (1.80) (NLA)
-
6-309160-10090-000 Washer (1.90) (NLA)Washer (1.90) (NLA)
-
6-409160-10091-000 Washer (2.00) (NLA)Washer (2.00) (NLA)
-
6-509160-10092-000 Washer (2.10) (NLA)Washer (2.10) (NLA)
-
709169-12002-000 Washer (NLA)Washer (NLA)
-
857510-98611-000 Forward Gear (NLA)Forward Gear (NLA)
-
957521-98601-000 Reverse Gear (NLA)Reverse Gear (NLA)
-
10-109181-12008-000 Thrust Washer (0.60) (NLA)
Prop Shaft REVThrust Washer (0.60) (NLA)
Prop Shaft REV -
10-209160-12070-000 Thrust Washer (0.80) (NLA)Thrust Washer (0.80) (NLA)
-
10-309181-12111-000 Thrust Washer (1.00) (NLA)Thrust Washer (1.00) (NLA)
-
1109181-12111-000 Thrust Washer (1.00) (NLA)
Prop Shaft FWDThrust Washer (1.00) (NLA)
Prop Shaft FWD -
12-109181-20159-000 Shim (0.60) (NLA)
REV GearShim (0.60) (NLA)
REV Gear -
12-209181-20160-000 Shim (0.70) (NLA)Shim (0.70) (NLA)
-
12-309181-20162-000 Shim (0.80) (NLA)Shim (0.80) (NLA)
-
12-409181-20164-000 Shim (0.90) (NLA)Shim (0.90) (NLA)
-
12-509181-20167-000 Shim (1.00)(NLA)Shim (1.00)(NLA)
-
13-109181-20162-000 Shim (0.80) (NLA)
FWD GearShim (0.80) (NLA)
FWD Gear -
13-209181-20164-000 Shim (0.90) (NLA)Shim (0.90) (NLA)
-
13-309181-20167-000 Shim (1.00)(NLA)Shim (1.00)(NLA)
-
13-409181-20172-000 Shim (1.10) (NLA)Shim (1.10) (NLA)
-
13-509181-20176-000 Shim (1.20) (NLA)Shim (1.20) (NLA)
-
1457611-91J00-000 Propeller Shaft AssemblyPropeller Shaft Assembly
-
1557621-98600-000 Clutch Dog Shifter (NLA)Clutch Dog Shifter (NLA)
-
1609202-04016-000 PinPin
-
1709440-05039-000 SpringSpring
-
1809440-24007-000 Clutch Dog Spring (NLA)Clutch Dog Spring (NLA)
-
1957631-98601-000 Push RodPush Rod
-
2057632-97L00-000 Push PinPush Pin
