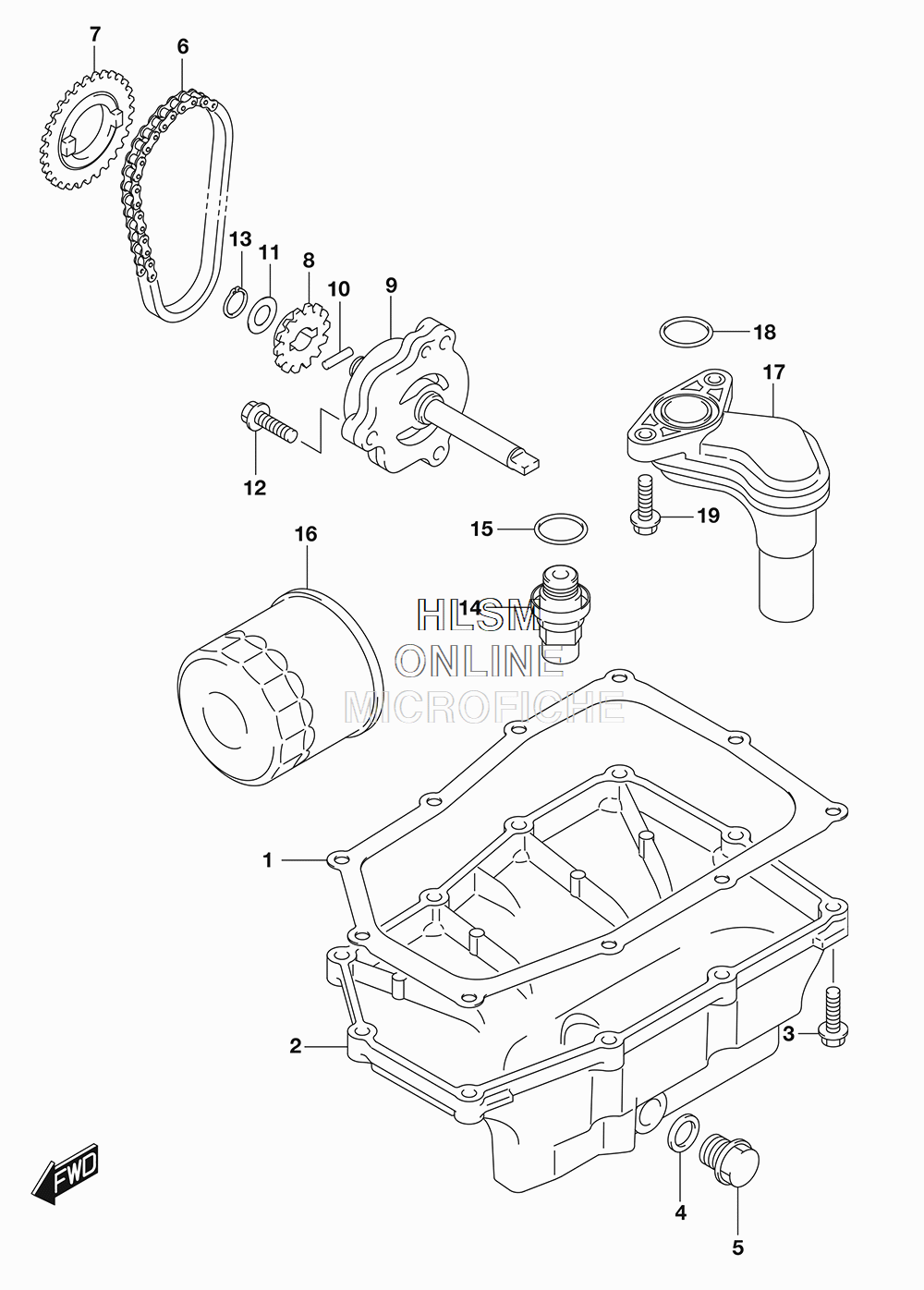

OIL PAN W/ OIL PUMP ASSY. для Suzuki GSX-250R - 2018 года выпуска`
-
№АртикулНазвание
-
111489-48H00 GASKET, OIL PANGASKET, OIL PAN
-
211511-48H00 PAN, OILPAN, OIL
-
301547-0625A BOLTBOLT
-
409168-14L01 GASKET (13.8X18.8X4.8)GASKET (13.8X18.8X4.8)
-
509247-14043 PLUG (14X12) (OIL DRAIN)PLUG (14X12) (OIL DRAIN)
-
616310-48H00 CHAIN ASSY, OIL PUMP DRIVECHAIN ASSY, OIL PUMP DRIVE
-
716321-48H00 SPROCKET, OIL PUMP DRIVE (NT:29)SPROCKET, OIL PUMP DRIVE (NT:29)
-
816331-48H00 SPROCKET, OIL PUMP DRIVEN (NT:15)SPROCKET, OIL PUMP DRIVEN (NT:15)
-
916400-20K00 PUMP ASSY, OILPUMP ASSY, OIL
-
1016421-48H00 PIN, OIL PUMPPIN, OIL PUMP
-
1116422-48H00 WASHER, PUMP DRIVEN GEARWASHER, PUMP DRIVEN GEAR
-
1201547-0625A BOLTBOLT
-
1308331-31109 CIRCLIPCIRCLIP
-
1416440-48H00 VALVE ASSY, OIL RELIEFVALVE ASSY, OIL RELIEF
-
1509168-16010 GASKET (16X22X2)GASKET (16X22X2)
-
1616510-07J00 FILTER ASSY, ENGINE OILFILTER ASSY, ENGINE OIL
-
1716520-48H00 STRAINER, ENGINE OILSTRAINER, ENGINE OIL
-
1809280-23L01 O RING (D:2.4,ID22.8)O RING (D:2.4,ID22.8)
-
1901550-0625A BOLTBOLT
