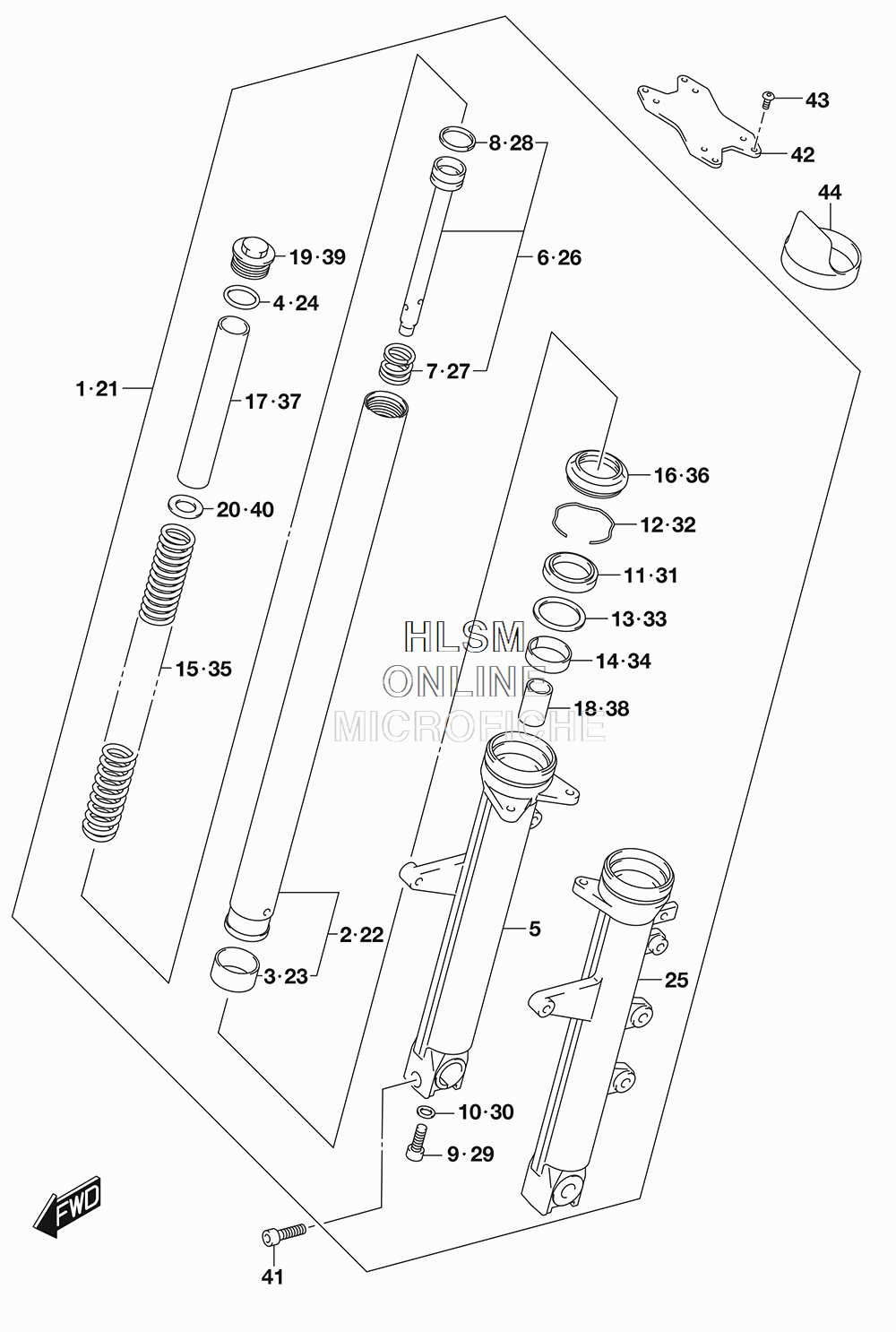

SUSPENSION - FRONT FORK DAMPER для Suzuki GSX-250R - 2018 года выпуска
-
№АртикулНазвание
-
151103-20K00 DAMPER ASSY, FRONT FORK RIGHT HANDDAMPER ASSY, FRONT FORK RIGHT HAND
-
251110-20K00 ...TUBE, INNER...TUBE, INNER
-
351121-01D00 ......PISTON......PISTON
-
451117-38260 ...O RING...O RING
-
551130-20K00 ...TUBE, OUTER...TUBE, OUTER
-
651146-20K00 ...CYLINDER...CYLINDER
-
751177-48H00 ......SPRING, REBOUND......SPRING, REBOUND
-
851196-16730 ......RING......RING
-
951147-05H00 ...BOLT...BOLT
-
1051148-41310 ...GASKET...GASKET
-
1151153-26F00 ...OIL SEAL...OIL SEAL
-
1251156-20K00 ...SNAP RING...SNAP RING
-
1351158-48H00 ...WASHER...WASHER
-
1451167-01D00 ...METAL, SLIDE...METAL, SLIDE
-
1551171-20K00 ...SPRING, MAIN...SPRING, MAIN
-
1651173-48H00 ...SEAL, DUST...SEAL, DUST
-
1751176-48H10 ...SPACER...SPACER
-
1851195-20K00 ...PIECE, OIL LOCK...PIECE, OIL LOCK
-
1951351-48H00 ...CAP...CAP
-
2051356-48H00 ...WASHER...WASHER
-
2151104-20K10 DAMPER ASSY, FRONT FORK LEFT HANDDAMPER ASSY, FRONT FORK LEFT HAND
-
2251110-20K00 ...TUBE, INNER...TUBE, INNER
-
2351121-01D00 ......PISTON......PISTON
-
2451117-38260 ...O RING...O RING
-
2551140-48H70 ...TUBE, OUTER...TUBE, OUTER
-
2651146-20K00 ...CYLINDER...CYLINDER
-
2751177-48H00 ......SPRING, REBOUND......SPRING, REBOUND
-
2851196-16730 ......RING......RING
-
2951147-05H00 ...BOLT...BOLT
-
3051148-41310 ...GASKET...GASKET
-
3151153-26F00 ...OIL SEAL...OIL SEAL
-
3251156-20K00 ...SNAP RING...SNAP RING
-
3351158-48H00 ...WASHER...WASHER
-
3451167-01D00 ...METAL, SLIDE...METAL, SLIDE
-
3551171-20K00 ...SPRING, MAIN...SPRING, MAIN
-
3651173-48H00 ...SEAL, DUST...SEAL, DUST
-
3751176-48H10 ...SPACER...SPACER
-
3851195-20K00 ...PIECE, OIL LOCK...PIECE, OIL LOCK
-
3951351-48H00 ...CAP...CAP
-
4051356-48H00 ...WASHER...WASHER
-
4151328-48H00 BOLTBOLT
-
4251471-48H00 STABILIZER, FRONTSTABILIZER, FRONT
-
4309139-06030 SCREW (6X16)SCREW (6X16)
-
4451201-48H00 PROTECTORPROTECTOR
