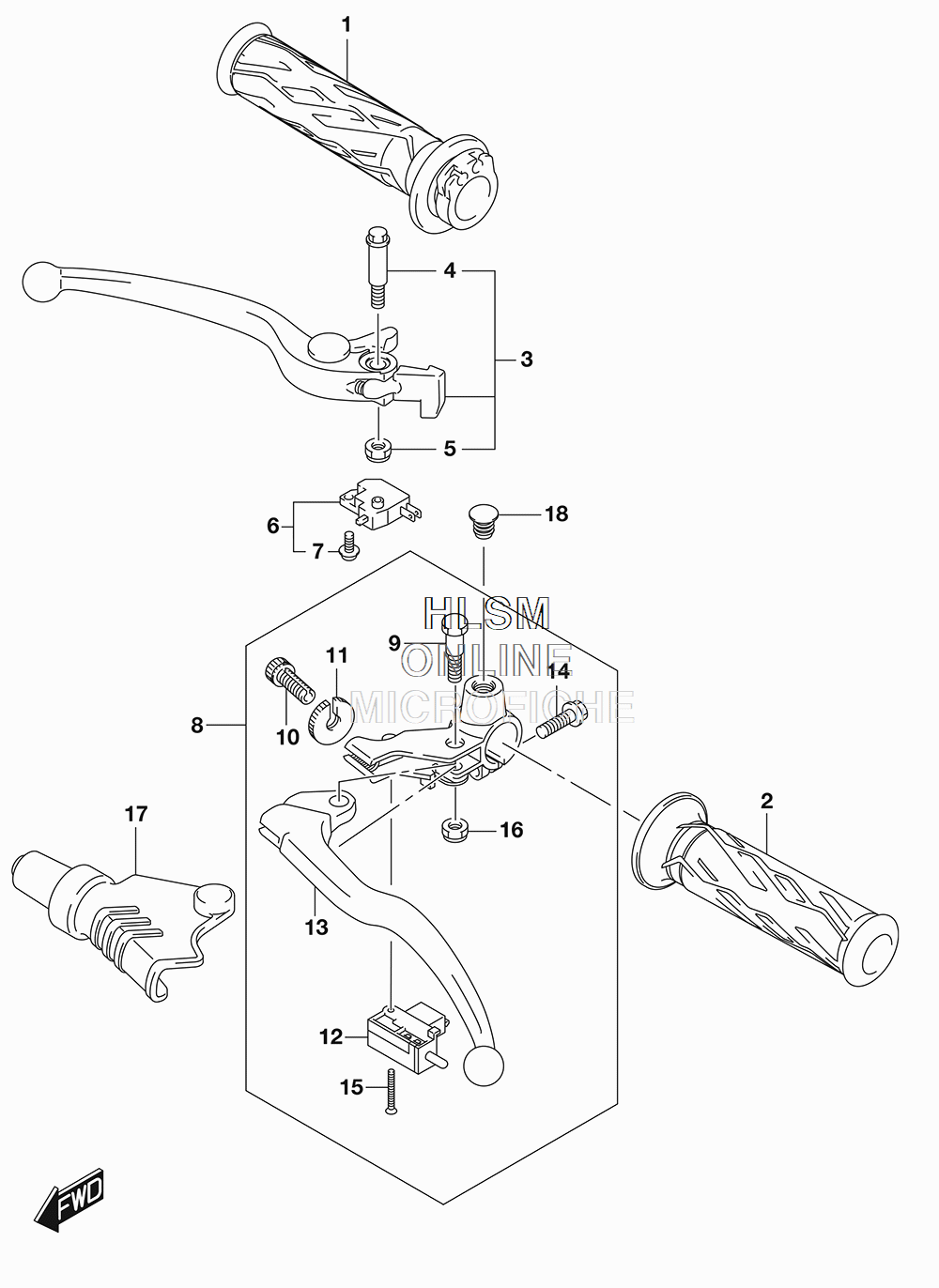

HANDLE LEVER для Suzuki GSX-250R - 2018 года выпуска

№

Артикул

Название
1

57110-48H00 GRIP, THROTTLE

GRIP, THROTTLE
2

57211-48H00 GRIP, LEFT HAND

GRIP, LEFT HAND
3

57300-48H01 LEVER ASSY, BRAKE

LEVER ASSY, BRAKE
4

57431-17H02 ...BOLT, LEVER PIVOT

...BOLT, LEVER PIVOT
5

08319-2106A ...NUT

...NUT
6

57460-14J01 SWITCH ASSY, FRONT BRAKE

SWITCH ASSY, FRONT BRAKE
7

57465-17C00 ...SCREW

...SCREW
8

57500-48H01 LEVER ASSY, CLUTCH

LEVER ASSY, CLUTCH
9

57431-48H20 ...BOLT, LEVER SET

...BOLT, LEVER SET
10

57441-48H00 ...ADJUSTER, WIRE

...ADJUSTER, WIRE
11

57422-48H00 ...NUT, LOCK

...NUT, LOCK
12

57560-48H00 ...SWITCH ASSY, CLUTCH

...SWITCH ASSY, CLUTCH
13

57621-48H01 ...LEVER, CLUTCH

...LEVER, CLUTCH
14

01547-0620B ...BOLT

...BOLT
15

02122-0320A ...SCREW

...SCREW
16

08319-2106A ...NUT

...NUT
17

57661-48H00 COVER, CLUTCH LEVER

COVER, CLUTCH LEVER
18

56524-20K00 PLUG, REAR VIEW MIRROR LEFT HAND

PLUG, REAR VIEW MIRROR LEFT HAND
