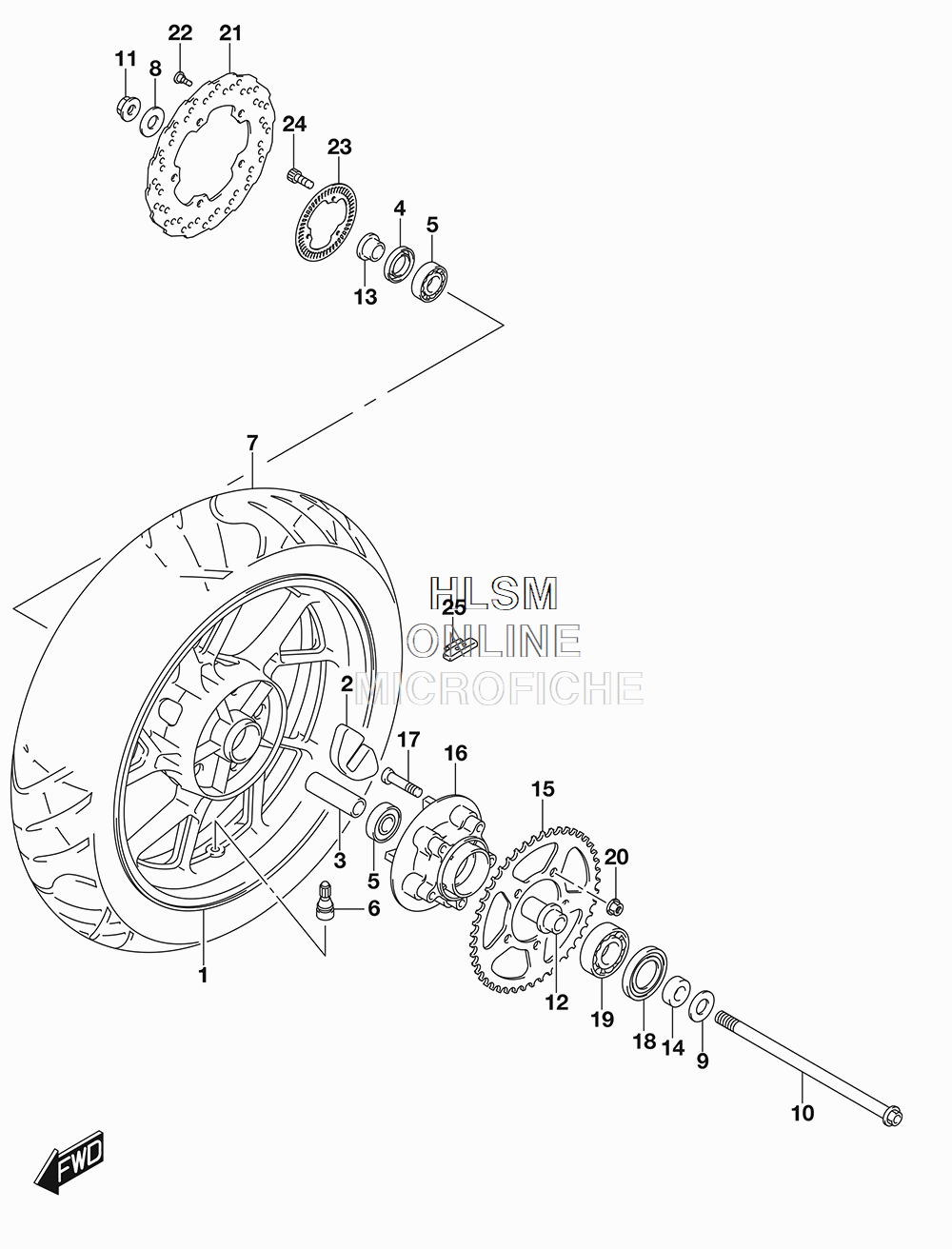

WHEEL - REAR для Suzuki GSX-250R - 2018 года выпуска

  • №
    Артикул
    Название
  • 1
    64111-20K00-YGA WHEEL, REAR (17M/CXMT4.00) (BLACK)
    WHEEL, REAR (17M/CXMT4.00) (BLACK)
  • 2
    64651-20K00 ABSORBER, REAR HUB SHOCK
    ABSORBER, REAR HUB SHOCK
  • 3
    09180-17116 SPACER (17.5X25X78)
    SPACER (17.5X25X78)
  • 4
    09283-25L02 OIL SEAL (25X47X8)
    OIL SEAL (25X47X8)
  • 5
    08123-63037 BEARING
    BEARING
  • 6
    43130-24A00 VALVE ASSY, WHEEL RIM (TR412)
    VALVE ASSY, WHEEL RIM (TR412)
  • 7-1
    65110-48H00 TIRE, REAR (140/70-17M/C 66H) (RX-01R IRC (JAPAN))
    TIRE, REAR (140/70-17M/C 66H) (RX-01R IRC (JAPAN))
  • 7-2
    65110-48H30 TIRE, REAR (140/70-17M/C 66H) (RX-01R IRC (THAILAND))
    TIRE, REAR (140/70-17M/C 66H) (RX-01R IRC (THAILAND))
  • 8
    61445-48H00 WASHER, REAR AXLE RIGHT HAND
    WASHER, REAR AXLE RIGHT HAND
  • 9
    61455-48H00 WASHER, REAR AXLE LEFT HAND
    WASHER, REAR AXLE LEFT HAND
  • 10
    64711-48H10 AXLE, REAR
    AXLE, REAR
  • 11
    64721-48H00 NUT, REAR AXLE
    NUT, REAR AXLE
  • 12
    64733-10D00 RETAINER, REAR SPROCKET DRUM
    RETAINER, REAR SPROCKET DRUM
  • 13
    64741-48H00 SPACER, REAR AXLE RIGHT HAND
    SPACER, REAR AXLE RIGHT HAND
  • 14
    64751-48H00 SPACER, REAR AXLE LEFT HAND
    SPACER, REAR AXLE LEFT HAND
  • 15
    64511-48H10 SPROCKET, REAR (NT:46)
    SPROCKET, REAR (NT:46)
  • 16
    64611-17C10 DRUM, REAR SPROCKET
    DRUM, REAR SPROCKET
  • 17
    09119-10088 BOLT (10X43.5)
    BOLT (10X43.5)
  • 18
    09285-35L01 OIL SEAL (35X62X8)
    OIL SEAL (35X62X8)
  • 19
    08113-63057 BEARING
    BEARING
  • 20
    08319-3110A NUT
    NUT
  • 21
    69211-20K00 DISC, REAR BRAKE
    DISC, REAR BRAKE
  • 22
    69222-48H00 BOLT, REAR BRAKE DISC
    BOLT, REAR BRAKE DISC
  • 23
    54162-44H00 RING, SPEED SENSOR FR (50T)
    RING, SPEED SENSOR FR (50T)
  • 24
    07130-0512A BOLT
    BOLT
  • 25-1
    55411-48H00 BALANCER, WHEEL (10G)
    BALANCER, WHEEL (10G)
  • 25-2
    55412-48H00 BALANCER, WHEEL (20G)
    BALANCER, WHEEL (20G)
  • 25-3
    55413-48H00 BALANCER, WHEEL (30G)
    BALANCER, WHEEL (30G)
