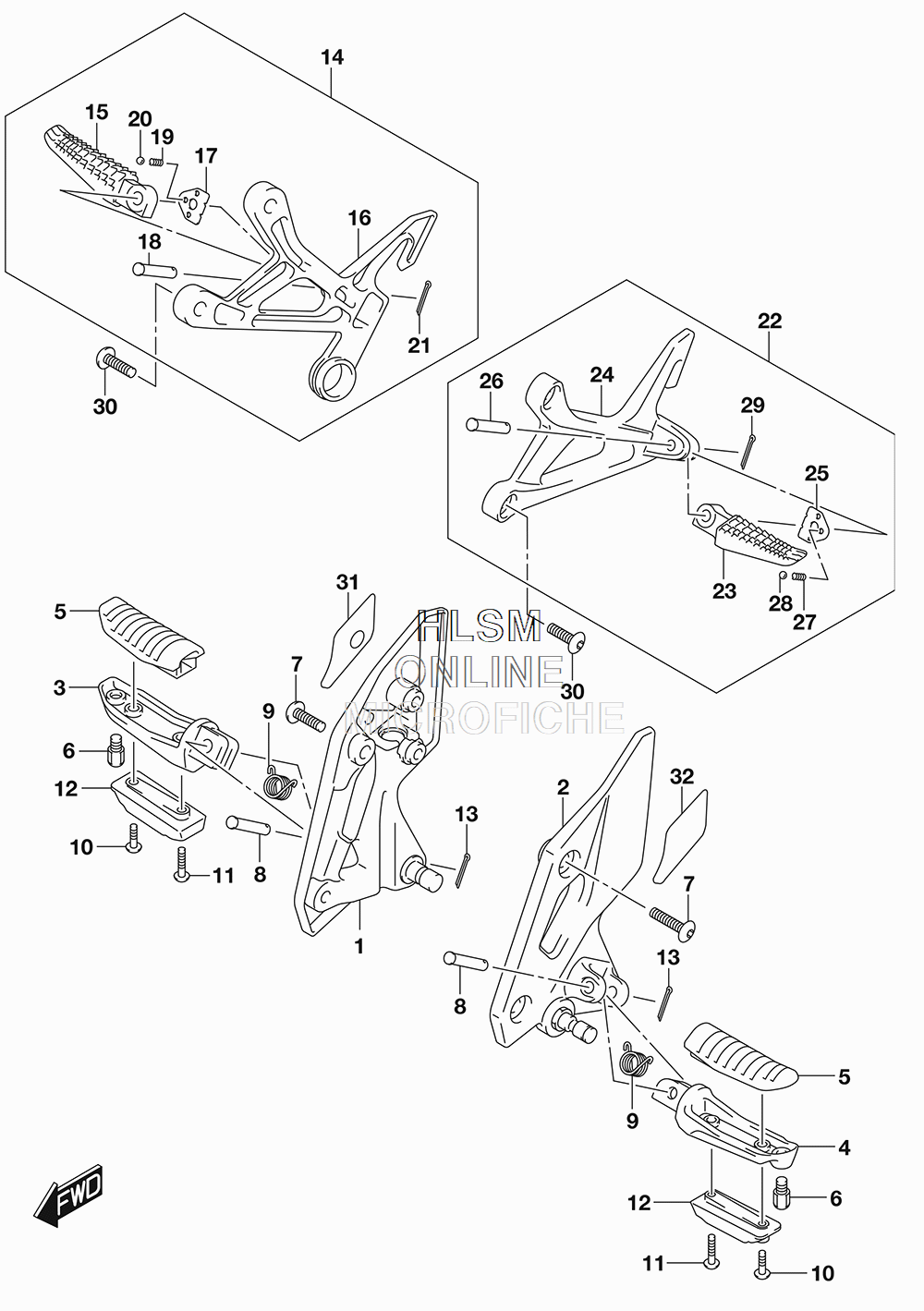

FOOTREST для Suzuki GSX-250R - 2018 года выпуска
-
№АртикулНазвание
-
143510-20K00 BRACKET, FOOTREST RIGHT HANDBRACKET, FOOTREST RIGHT HAND
-
243521-20K00 BRACKET, FOOTREST LEFT HANDBRACKET, FOOTREST LEFT HAND
-
343511-44G10 BAR, FRONT FOOTREST RIGHT HANDBAR, FRONT FOOTREST RIGHT HAND
-
443521-44G10 BAR, FRONT FOOTREST LEFT HANDBAR, FRONT FOOTREST LEFT HAND
-
543550-44G10 RUBBER, FOOTRESTRUBBER, FOOTREST
-
643576-48H00 BOLT, BANK SENSORBOLT, BANK SENSOR
-
743512-20K00 BOLT, FOOTREST BRACKETBOLT, FOOTREST BRACKET
-
843529-34J00 PIN, FRONT FOOTRESTPIN, FRONT FOOTREST
-
909448-16033 SPRINGSPRING
-
1002142-0525A SCREWSCREW
-
1102142-0530A SCREWSCREW
-
1243536-44G00 BALANCER, FR FOOTRESTBALANCER, FR FOOTREST
-
1304111-2515A PINPIN
-
1443600-20K00 FOOTREST ASSY, PILLION RIGHT HANDFOOTREST ASSY, PILLION RIGHT HAND
-
1543611-20K00 ...BAR, PILLION FOOTREST RIGHT HAND...BAR, PILLION FOOTREST RIGHT HAND
-
1643811-20K00 ...BRACKET, PILLION FOOTREST RIGHT HAND...BRACKET, PILLION FOOTREST RIGHT HAND
-
1743816-01H10 ...PLATE, PILLION FOOTREST...PLATE, PILLION FOOTREST
-
1809200-08067 ...PIN...PIN
-
1909440-05003 ...SPRING...SPRING
-
2006112-07004 ...BALL...BALL
-
2104111-2515A ...PIN...PIN
-
2243700-20K00 FOOTREST ASSY, PILLION LEFT HANDFOOTREST ASSY, PILLION LEFT HAND
-
2343621-20K00 ...BAR, PILLION FOOTREST LEFT HAND...BAR, PILLION FOOTREST LEFT HAND
-
2443821-20K00 ...BRACKET, PILLION FOOTREST LEFT HAND...BRACKET, PILLION FOOTREST LEFT HAND
-
2543816-01H10 ...PLATE, PILLION FOOTREST...PLATE, PILLION FOOTREST
-
2609200-08067 ...PIN...PIN
-
2709440-05003 ...SPRING...SPRING
-
2806111-07004 ...BALL...BALL
-
2904111-2515A ...PIN...PIN
-
3009106-08150 BOLT (8X23)BOLT (8X23)
-
3143571-20K00 TAPE, FR FOOTREST RIGHT HANDTAPE, FR FOOTREST RIGHT HAND
-
3243572-20K00 TAPE, FR FOOTREST LEFT HANDTAPE, FR FOOTREST LEFT HAND
