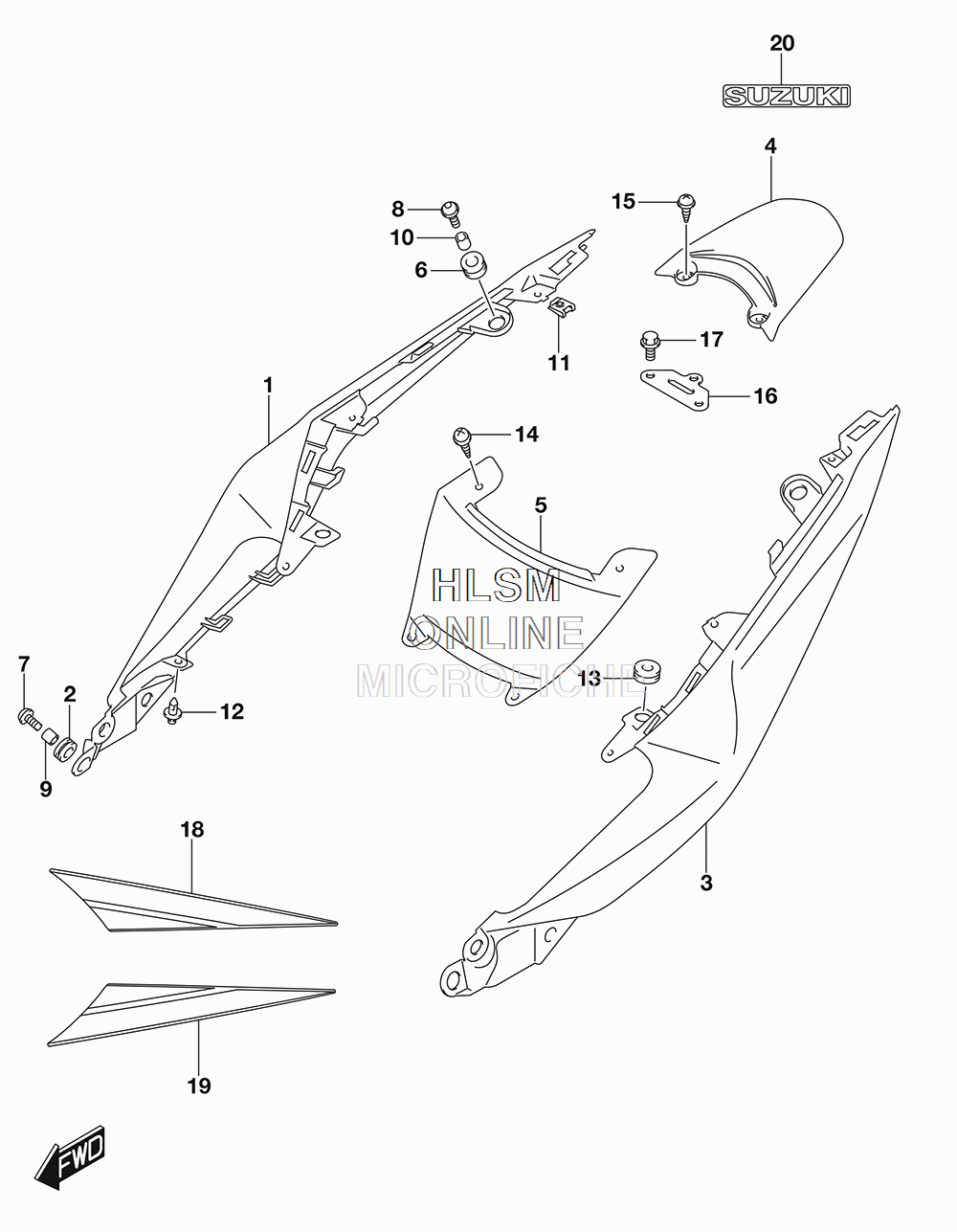

SIDE COVER для Suzuki GSX-250R - 2018 года выпуска

  • №
    Артикул
    Название
  • 1-1
    47111-20K00-QHW COVER, FRAME RIGHT HAND (QHW - PEARL GLACIER WHITE NO. 2 FOR FOR QHW - WHITE)
    COVER, FRAME RIGHT HAND (QHW - PEARL GLACIER WHITE NO. 2 FOR FOR QHW - WHITE)
  • 1-2
    47111-20K00-QHW COVER, FRAME RIGHT HAND (QHW - PEARL GLACIER WHITE NO. 2 FOR FOR BEE - BLUE/WHITE)
    COVER, FRAME RIGHT HAND (QHW - PEARL GLACIER WHITE NO. 2 FOR FOR BEE - BLUE/WHITE)
  • 1-3
    47111-20K00-YAY COVER, FRAME RIGHT HAND (YAY - PEARL NEBULAR BLACK FOR YAY - BLACK)
    COVER, FRAME RIGHT HAND (YAY - PEARL NEBULAR BLACK FOR YAY - BLACK)
  • 1-4
    47111-20K00-YAY COVER, FRAME RIGHT HAND (YAY - PEARL NEBULAR BLACK FOR AY4 - RED/BLACK)
    COVER, FRAME RIGHT HAND (YAY - PEARL NEBULAR BLACK FOR AY4 - RED/BLACK)
  • 2
    47161-48H00 CUSHION, FRAME COVER FR
    CUSHION, FRAME COVER FR
  • 3-1
    47211-20K00-QHW COVER, FRAME LEFT HAND (WHITE) (FOR QHW,BEE)
    COVER, FRAME LEFT HAND (WHITE) (FOR QHW,BEE)
  • 3-2
    47211-20K00-YAY COVER, FRAME LEFT HAND (BLACK) (FOR YAY,4CX,AY4)
    COVER, FRAME LEFT HAND (BLACK) (FOR YAY,4CX,AY4)
  • 4
    47311-20K00 COVER, FRAME CENTER
    COVER, FRAME CENTER
  • 5
    47312-20K00 COVER, FRAME CENTER FRONT
    COVER, FRAME CENTER FRONT
  • 6
    47321-20K00 CUSHION, FRAME COVER REAR
    CUSHION, FRAME COVER REAR
  • 7
    47331-20K00 SCREW, FRAME COVER FRONT
    SCREW, FRAME COVER FRONT
  • 8
    47331-20K00 SCREW, FRAME COVER REAR
    SCREW, FRAME COVER REAR
  • 9
    47332-20K00 SPACER, FRAME COVER FRONT
    SPACER, FRAME COVER FRONT
  • 10
    47332-20K00 SPACER, FRAME COVER REAR
    SPACER, FRAME COVER REAR
  • 11
    47399-48H00 NUT, COVER FRAME
    NUT, COVER FRAME
  • 12
    48292-32GH0 CLIP, FRAME COVER
    CLIP, FRAME COVER
  • 13
    09320-08018 CUSHION
    CUSHION
  • 14
    03541-0512A SCREW
    SCREW
  • 15
    03541-0512B SCREW
    SCREW
  • 16
    47810-20K00 BRACKET, FRAME COVER CTR
    BRACKET, FRAME COVER CTR
  • 17
    01550-0612B BOLT
    BOLT
  • 18-1
    68132-20K00-BFL TAPE,FRAME COVER RIGHT HAND (BFL FOR FOR 4CX)
    TAPE,FRAME COVER RIGHT HAND (BFL FOR FOR 4CX)
  • 18-2
    68132-20K00-BFM TAPE,FRAME COVER RIGHT HAND (BFM FOR BEE - BLUE/WHITE)
    TAPE,FRAME COVER RIGHT HAND (BFM FOR BEE - BLUE/WHITE)
  • 18-3
    68132-20K00-BFN TAPE,FRAME COVER RIGHT HAND (BFN FOR AY4 - RED/BLACK)
    TAPE,FRAME COVER RIGHT HAND (BFN FOR AY4 - RED/BLACK)
  • 19-1
    68142-20K00-BFL TAPE,FRAME COVER RIGHT HAND (BFL FOR FOR 4CX)
    TAPE,FRAME COVER RIGHT HAND (BFL FOR FOR 4CX)
  • 19-2
    68142-20K00-BFM TAPE,FRAME COVER RIGHT HAND (BRM FOR BEE - BLUE/WHITE)
    TAPE,FRAME COVER RIGHT HAND (BRM FOR BEE - BLUE/WHITE)
  • 19-3
    68142-20K00-BFN TAPE,FRAME COVER RIGHT HAND (BFN FOR AY4 - RED/BLACK)
    TAPE,FRAME COVER RIGHT HAND (BFN FOR AY4 - RED/BLACK)
  • 20
    68181-45H00-YD8 EMBLEM, "SUZUKI" (SILVER)
    EMBLEM, "SUZUKI" (SILVER)
