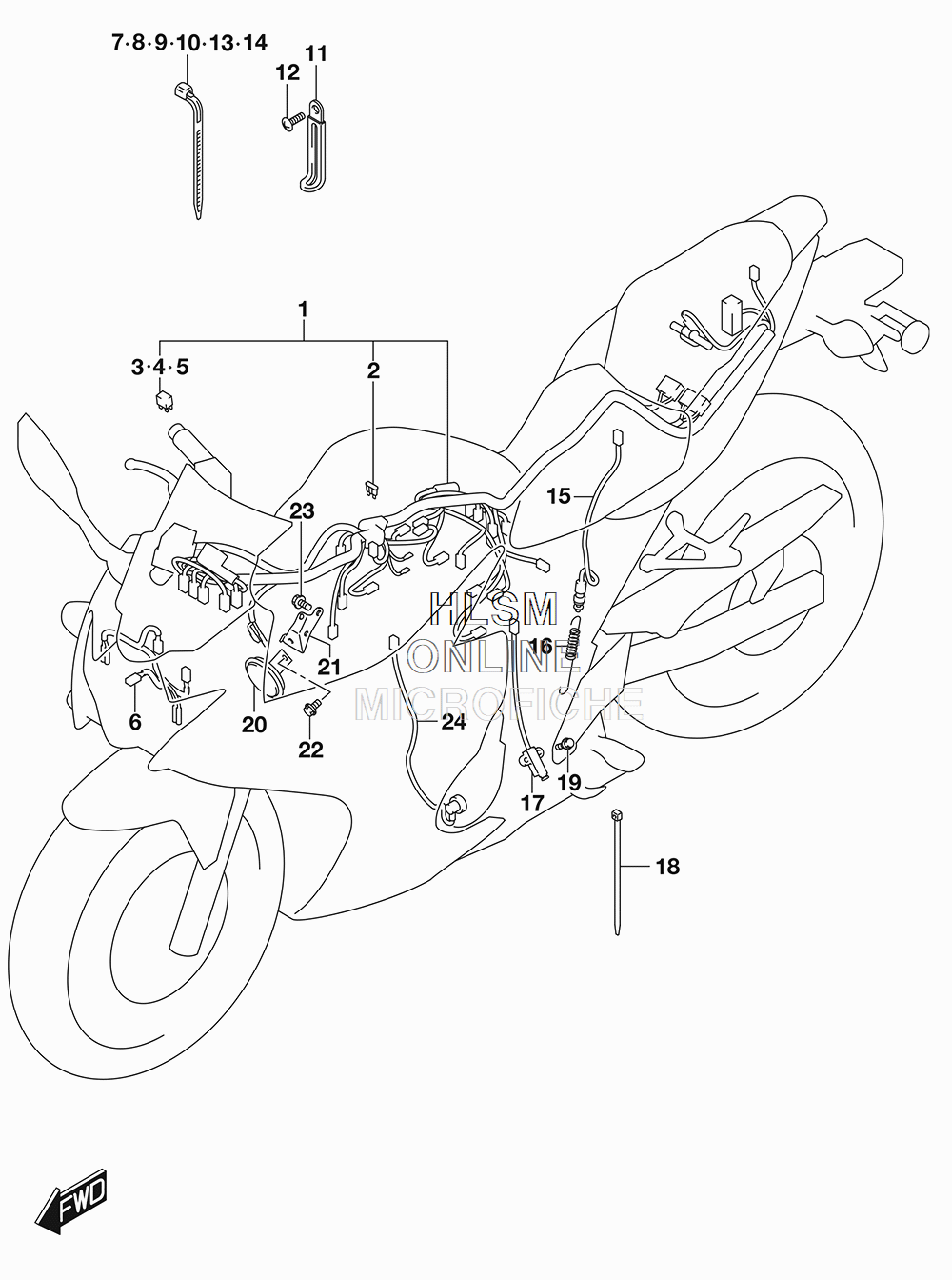

ELECTRICAL - WIRING HARNESS для Suzuki GSX-250R - 2018 года выпуска`
-
№АртикулНазвание
-
136610-20K30 HARNESS, WIRINGHARNESS, WIRING
-
209481-10504 ...FUSE (10A)...FUSE (10A)
-
338860-42J00 ...RELAY ASSY (FOR FUEL PUMP)...RELAY ASSY (FOR FUEL PUMP)
-
438860-42J00 ...RELAY ASSY (FOR FAN MOTOR)...RELAY ASSY (FOR FAN MOTOR)
-
538860-42J00 ...RELAY ASSY (FOR SIDE STAND)...RELAY ASSY (FOR SIDE STAND)
-
636620-20K00 HARNESS, WIRING NO.2HARNESS, WIRING NO.2
-
709407-19401 CLAMP (L:190)CLAMP (L:190)
-
836990-32G10 CLAMP, WIRING HARNESSCLAMP, WIRING HARNESS
-
936990-32G20 CLAMP, WIRING HARNESSCLAMP, WIRING HARNESS
-
1036990-32G30 CLAMP, WIRING HARNESSCLAMP, WIRING HARNESS
-
1109404-06206 CLAMP (L:45)CLAMP (L:45)
-
1203541-0516A SCREWSCREW
-
1336990-48H00 CLAMP, WIRING HARNESSCLAMP, WIRING HARNESS
-
1436990-45H30 CLAMP, WIRING HARNESSCLAMP, WIRING HARNESS
-
1537740-20K00 SWITCH ASSY, STOP LAMPSWITCH ASSY, STOP LAMP
-
1643232-20K00 SPRING, BRAKE LAMP SWITCHSPRING, BRAKE LAMP SWITCH
-
1737840-18J00 SWITCH ASSY, SIDE STANDSWITCH ASSY, SIDE STAND
-
1809407-25402 CLAMP (L:250)CLAMP (L:250)
-
1901550-0620B BOLTBOLT
-
2038500-48H30 HORN ASSYHORN ASSY
-
2138590-48H10 PLATE, HORNPLATE, HORN
-
2201550-0812B BOLTBOLT
-
2301550-0612B BOLTBOLT
-
2436851-20K00 WIRE, OIL PRESSURE SWITCH LEAWIRE, OIL PRESSURE SWITCH LEA
