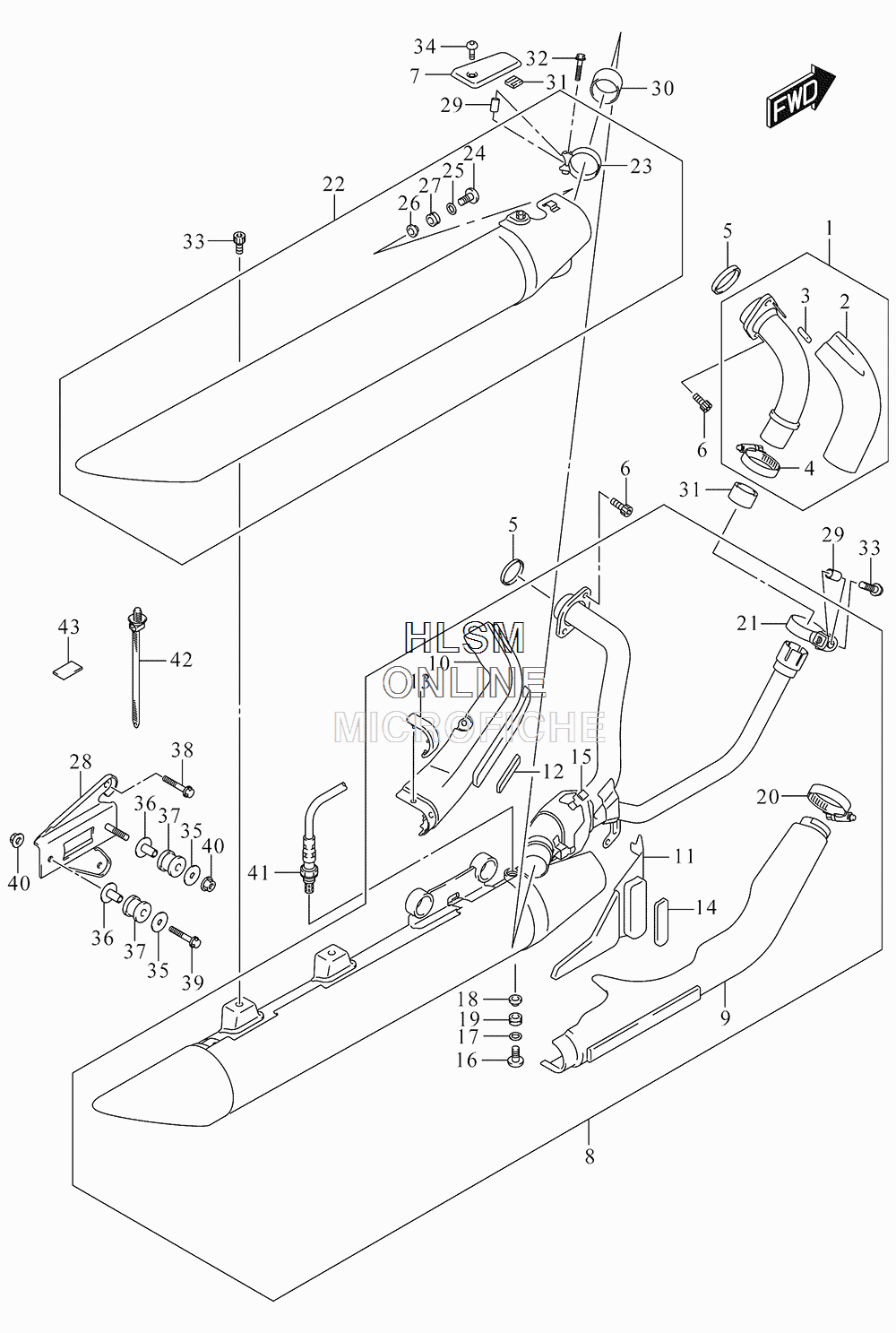

MUFFLER для Suzuki VL1500BT L5 INTRUDER - 2015 года выпуска
-
№АртикулНазвание
-
114150-40H11 PIPE, EXHAUST FRONTPIPE, EXHAUST FRONT
-
214159-40H10 ...COVER,EXH PIPE FR...COVER,EXH PIPE FR
-
314795-10FA0 ...GROMMET...GROMMET
-
409402-45503 ...CLAMP...CLAMP
-
514181-31D00 GASKET, EXHAUST PIPEGASKET, EXHAUST PIPE
-
609106-08175 BOLT (8X30)BOLT (8X30)
-
714260-06J10 COVER, MUFFLER REAR UPPERCOVER, MUFFLER REAR UPPER
-
814305-06J21 MUFFLER, FRONTMUFFLER, FRONT
-
914170-06J10 ...COVER, EXHAUST FRONT...COVER, EXHAUST FRONT
-
1014180-06J11 ...COVER, EXHAUST REAR...COVER, EXHAUST REAR
-
1114250-06J11 ...COVER, EXHAUST CENTER...COVER, EXHAUST CENTER
-
1214780-48G10 ...PROTECTOR, UPPER...PROTECTOR, UPPER
-
1314782-06J00 ...CUSHION, EXHAUST PIPE COVER...CUSHION, EXHAUST PIPE COVER
-
1414790-48G20 ...PROTECTOR, LOWER...PROTECTOR, LOWER
-
1514795-10FA0 ...GROMMET...GROMMET
-
1609139-06028 ...SCREW (6X20)...SCREW (6X20)
-
1709160-06141 ...WASHER (6.5X20X1)...WASHER (6.5X20X1)
-
1809180-06331 ...SPACER (6.2X8.4X10.9)...SPACER (6.2X8.4X10.9)
-
1909320-08070 ...CUSHION...CUSHION
-
2009402-45503 ...CLAMP...CLAMP
-
2114459-40H00 ...CLAMP, CONNECTOR...CLAMP, CONNECTOR
-
2214340-06J21 BODY, MUFFLER REARBODY, MUFFLER REAR
-
2314459-40H00 ...CONNECTOR...CONNECTOR
-
2409139-06028 ...SCREW (6X20)...SCREW (6X20)
-
2509160-06141 ...WASHER (6.5X20X1)...WASHER (6.5X20X1)
-
2609180-06331 ...SPACER (6.2X8.4X10.9)...SPACER (6.2X8.4X10.9)
-
2709320-08070 ...CUSHION...CUSHION
-
2814410-40H00 BRACKET, MUFFLER SUPPORTBRACKET, MUFFLER SUPPORT
-
2914458-45G10 SPACER, MUFFLER CLAMPSPACER, MUFFLER CLAMP
-
3014771-40H00 CONNECTORCONNECTOR
-
3114795-10FA0 GROMMETGROMMET
-
3209103-08365 BOLT (8X35)BOLT (8X35)
-
3309106-08107 BOLT (8X20)BOLT (8X20)
-
3409139-06172 SCREW (6X10)SCREW (6X10)
-
3509160-08146 WASHER (8.5X33X1.5)WASHER (8.5X33X1.5)
-
3609180-08156 SPACER (8.6X12X27.1)SPACER (8.6X12X27.1)
-
3709320-12049 CUSHIONCUSHION
-
3801550-0816A BOLTBOLT
-
3901550-0845A BOLTBOLT
-
4008361-2508A NUTNUT
-
4118213-48G00 SENSOR, OXYGENSENSOR, OXYGEN
-
4209407-17403 CLAMP (L:154)CLAMP (L:154)
-
4344558-45G00 CUSHION, O2 SENSOR LEADCUSHION, O2 SENSOR LEAD
