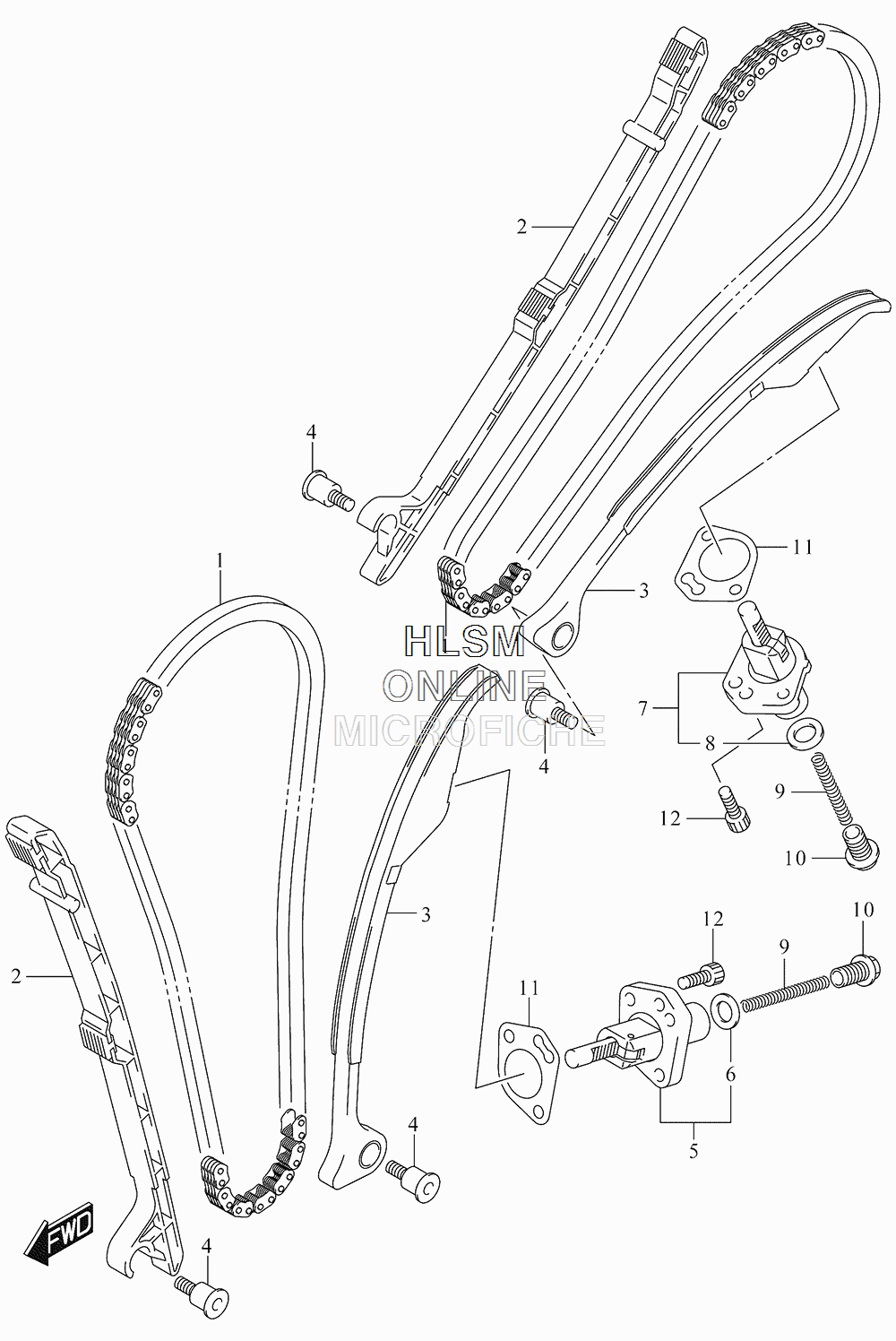

CAM CHAIN ASSY. W/ TENSIONER для Suzuki VL1500BT L5 INTRUDER - 2015 года выпуска
-
№АртикулНазвание
-
112760-40H00 CHAIN, CAMSHAFT DRIVECHAIN, CAMSHAFT DRIVE
-
212771-40H00 GUIDE, CAM CHAINGUIDE, CAM CHAIN
-
312811-40H00 TENSIONER, CAM CHAINTENSIONER, CAM CHAIN
-
412812-31G00 BOLTBOLT
-
512830-40H00 ADJUSTER ASSY, TENSIONER FRONTADJUSTER ASSY, TENSIONER FRONT
-
612837-24F10 ...GASKET...GASKET
-
712830-40H10 ADJUSTER ASSY, TENSIONER REARADJUSTER ASSY, TENSIONER REAR
-
812837-24F10 ...GASKET...GASKET
-
912831-41G00 SPRINGSPRING
-
1012833-17G00 PLUGPLUG
-
1112837-27G00 GASKETGASKET
-
1207130-0625A BOLTBOLT
