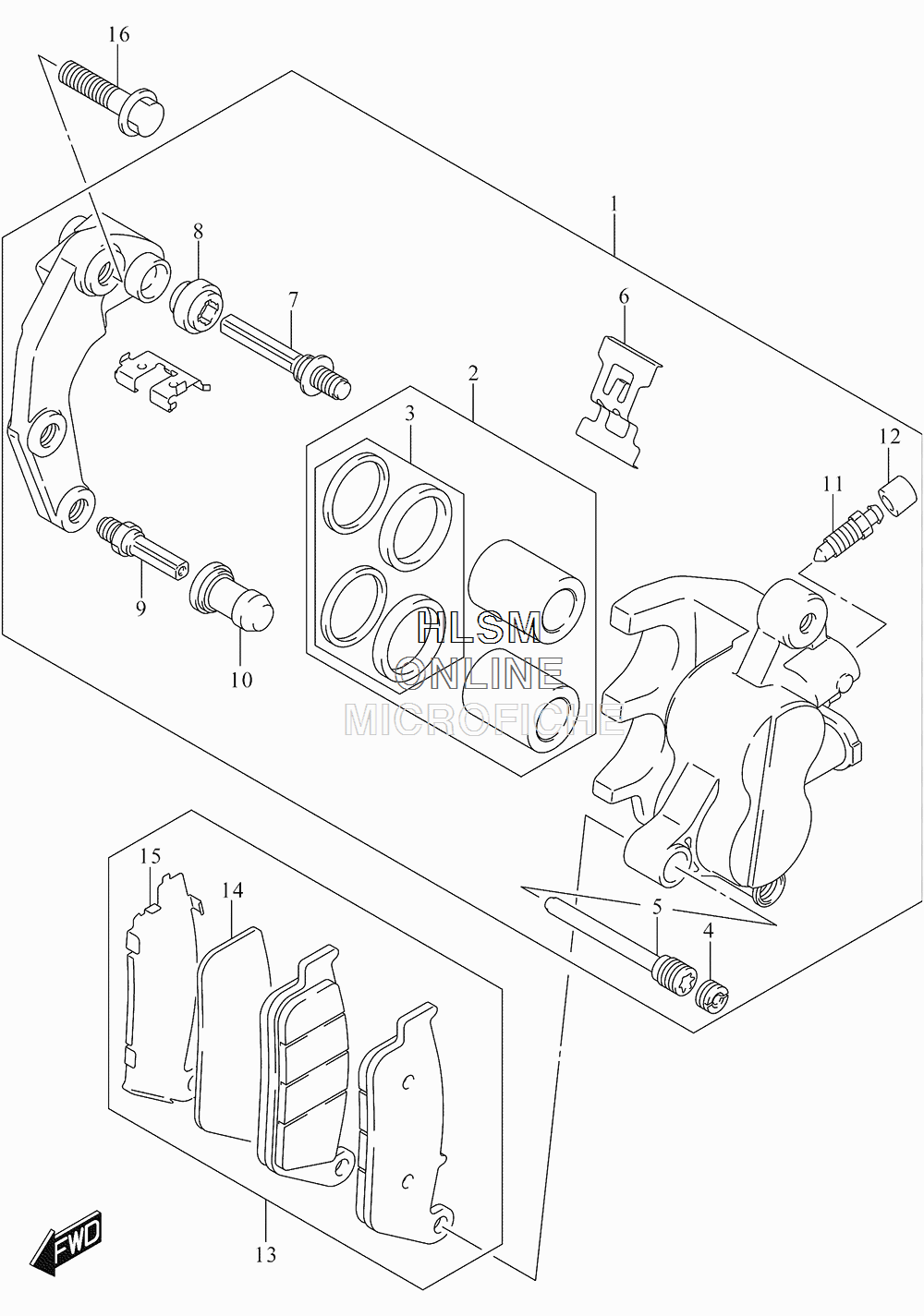

BRAKE - FRONT CALIPER для Suzuki VL1500BT L5 INTRUDER - 2015 года выпуска`
-
№АртикулНазвание
-
159300-06J00-999 CALIPER ASSY, FRONTCALIPER ASSY, FRONT
-
259300-21810 ...PISTON SET...PISTON SET
-
359300-21860 ......SEAL SET, PISTON......SEAL SET, PISTON
-
459146-21E10 ...PLUG, PIN...PLUG, PIN
-
559145-21E10 ...PIN, HANGER...PIN, HANGER
-
659115-21E10 ...SPRING, PAD...SPRING, PAD
-
759187-21E10 ...PIN...PIN
-
859303-14500 ...BOOT...BOOT
-
959382-14500 ...PIN...PIN
-
1059386-13A00 ...BOOT...BOOT
-
1159121-01A00 ...BLEEDER...BLEEDER
-
1259122-46H00 ...CAP, BLEEDER...CAP, BLEEDER
-
1359300-06810 PAD SETPAD SET
-
1459132-21E10 ...INSULATOR...INSULATOR
-
1559133-21E10 ...RETAINER...RETAINER
-
1601550-0835A BOLTBOLT
