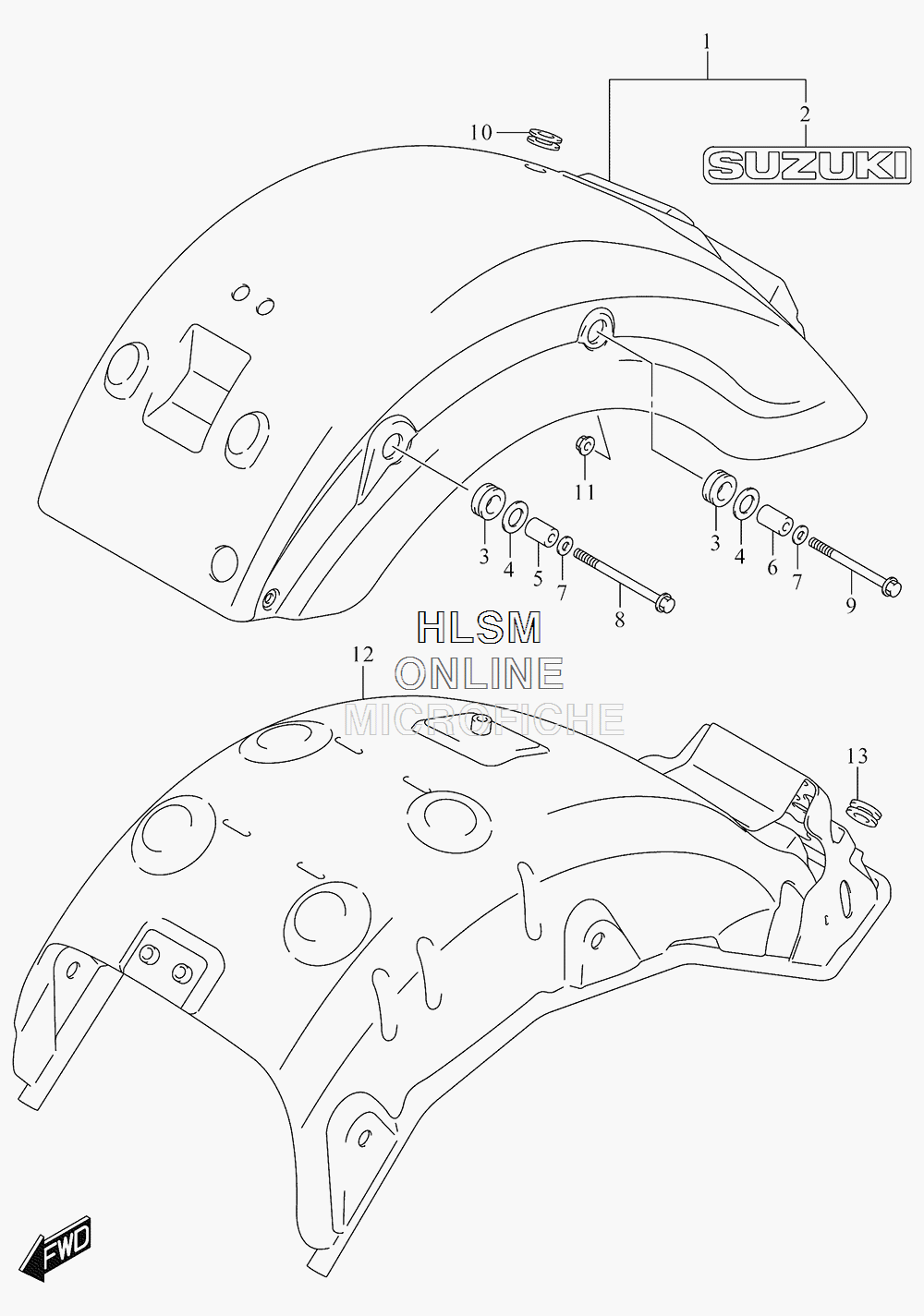

FENDER - REAR для Suzuki VL1500BT L5 INTRUDER - 2015 года выпуска
-
№АртикулНазвание
-
163110-06J00-6UX FENDER, REAR (BLACK)FENDER, REAR (BLACK)
-
268271-34A00-YJH ...EMBLEM, ''SUZUKI'' (GRAY)...EMBLEM, ''SUZUKI'' (GRAY)
-
347191-24F00 CUSHIONCUSHION
-
409160-15002 WASHER (15.5X26X2.3)WASHER (15.5X26X2.3)
-
595428-06J00 SPACER, FRONTSPACER, FRONT
-
695429-06J00 SPACER, REARSPACER, REAR
-
709180-08047 SPACER (8.2X12X6)SPACER (8.2X12X6)
-
801550-0895A BOLT (FRONT)BOLT (FRONT)
-
901550-0885A BOLT (REAR)BOLT (REAR)
-
1009320-15008 CUSHIONCUSHION
-
1108316-1008A NUTNUT
-
1263130-06J01 REINFORCE, REAR FENDERREINFORCE, REAR FENDER
-
1309308-10017 GROMMETGROMMET
