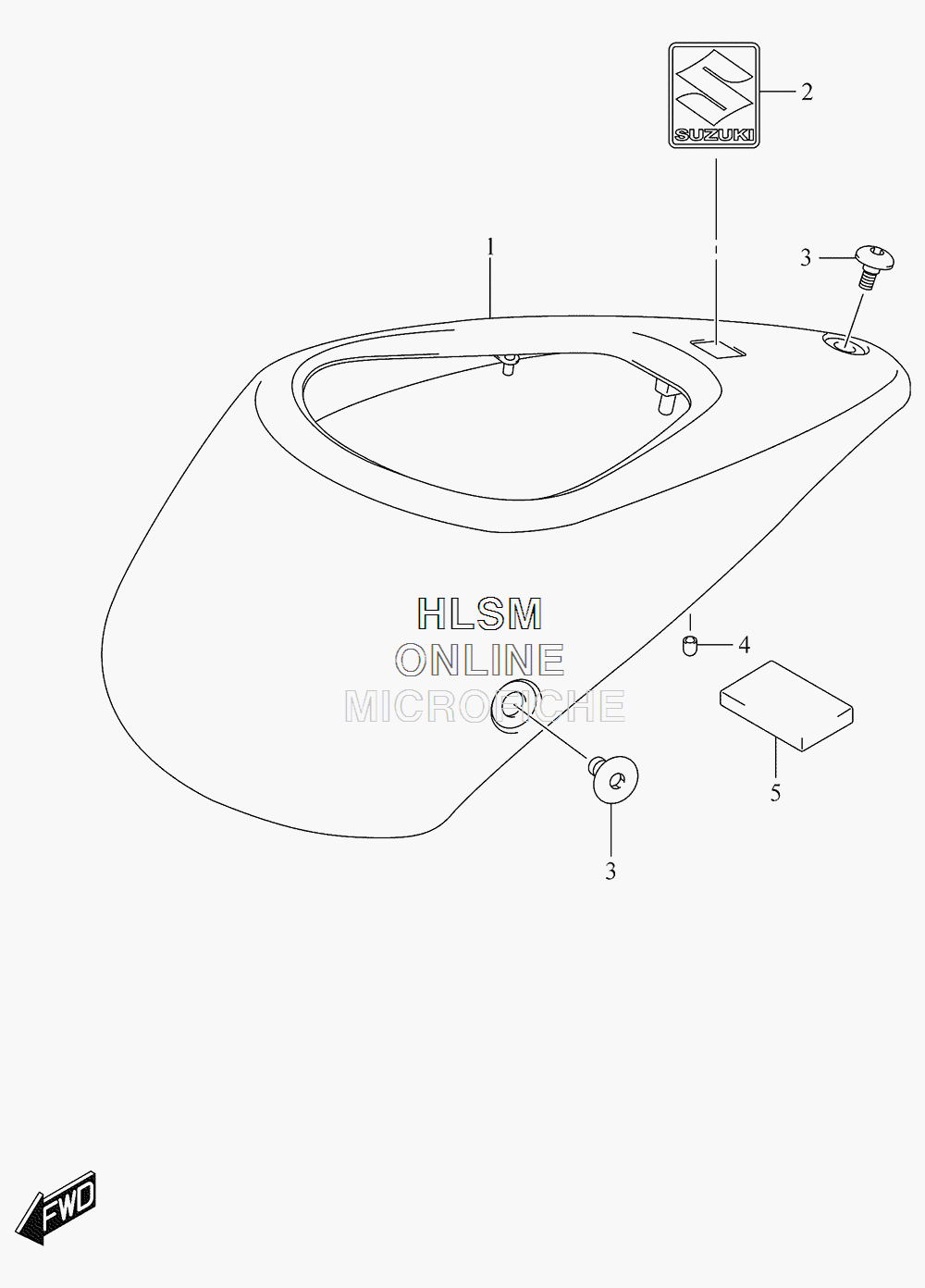

FUEL TANK - FRONT COVER для Suzuki VL1500BT L5 INTRUDER - 2015 года выпуска
-
№АртикулНазвание
-
144291-06J10 COVER, FUEL TANK UPPERCOVER, FUEL TANK UPPER
-
268281-47HA0 EMBLEM, ''S''EMBLEM, ''S''
-
309139-06152 SCREW (6X12)SCREW (6X12)
-
444294-43H10 CUSHIONCUSHION
-
544831-17B00 CUSHIONCUSHION
