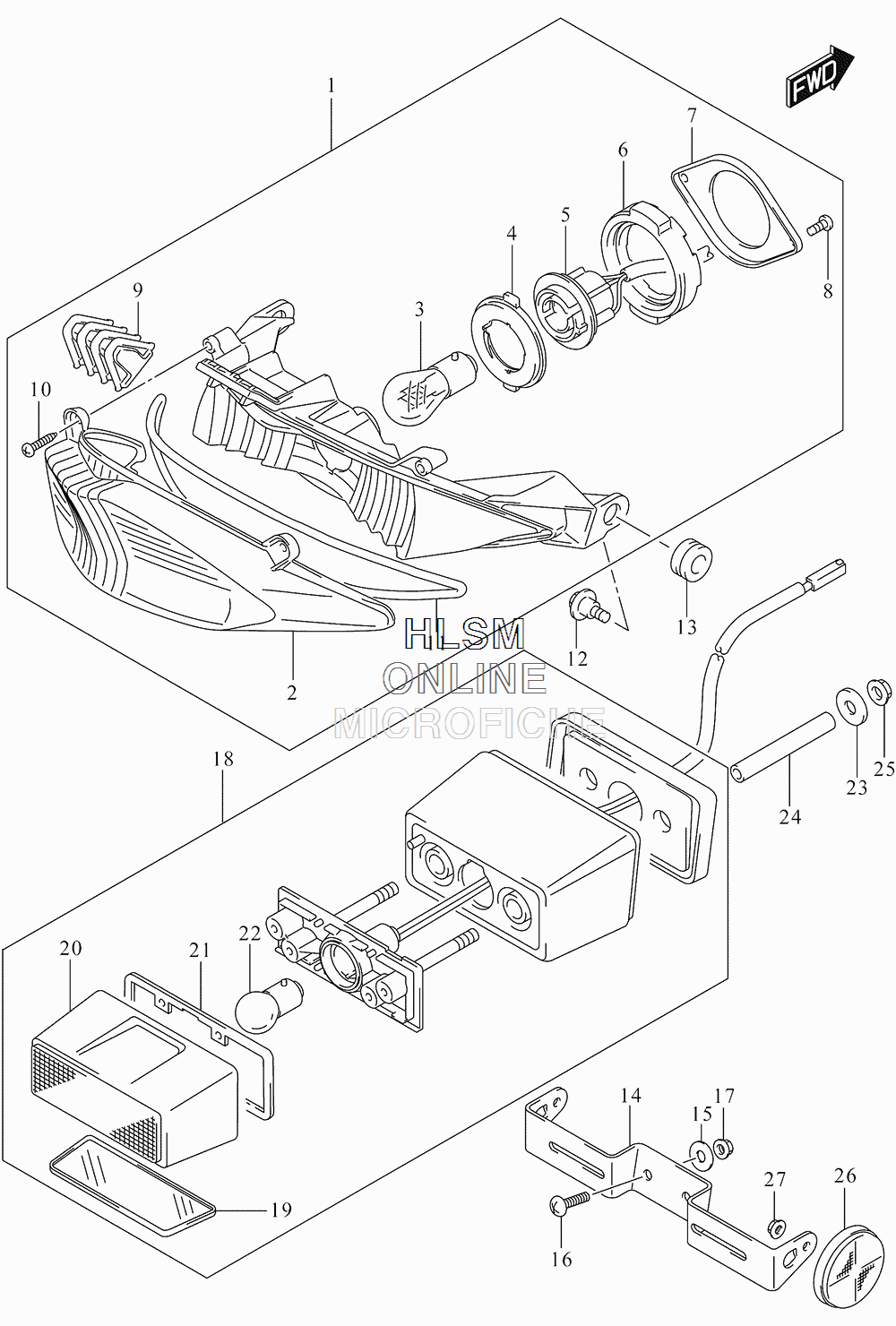

TAILLIGHT ASSY. для Suzuki GSX-650FA L5 - 2015 года выпуска

№

Артикул

Название
1

35710-38G51 LAMP ASSY, REAR COMBINATION

LAMP ASSY, REAR COMBINATION
2

35712-38G50 LENS

LENS
3

09471-12083 BULB (12V,21/5W)

BULB (12V,21/5W)
4

35716-48B21 PLATE, NO.1

PLATE, NO.1
5

35718-38G00 SOCKET AND CORD

SOCKET AND CORD
6

35765-48B21 CUSHION

CUSHION
7

35736-48B21 PLATE, NO.2

PLATE, NO.2
8

03211-0412A SCREW

SCREW
9

35716-38G00 CUSHION

CUSHION
10

03211-0416A SCREW

SCREW
11

35713-38G00 GASKET

GASKET
12

09139-05080 SCREW (5X16.2)

SCREW (5X16.2)
13

09320-10054 CUSHION

CUSHION
14

35927-38G50 BRACKET, LICENSE PLATE

BRACKET, LICENSE PLATE
15

09160-06077 WASHER (6.5X20X1.2)

WASHER (6.5X20X1.2)
16

02142-0616A SCREW

SCREW
17

08316-1006A NUT

NUT
18

35910-41G50 LAMP ASSY, LICENSE

LAMP ASSY, LICENSE
19

35912-41G01 LENS, LICENSE

LENS, LICENSE
20

35917-41G00 COVER

COVER
21

35913-41G00 GASKET

GASKET
22

09471-12140 BULB (12V,5W)

BULB (12V,5W)
23

09160-06077 WASHER (6.5X20X1.2)

WASHER (6.5X20X1.2)
24

09180-06344 SPACER (6.5X9X63.5)

SPACER (6.5X9X63.5)
25

08316-1006A NUT

NUT
26

35970-14A20 REFLEX REFLECTOR ASSY, REAR SIDE

REFLEX REFLECTOR ASSY, REAR SIDE
27

08316-1005B NUT

NUT
