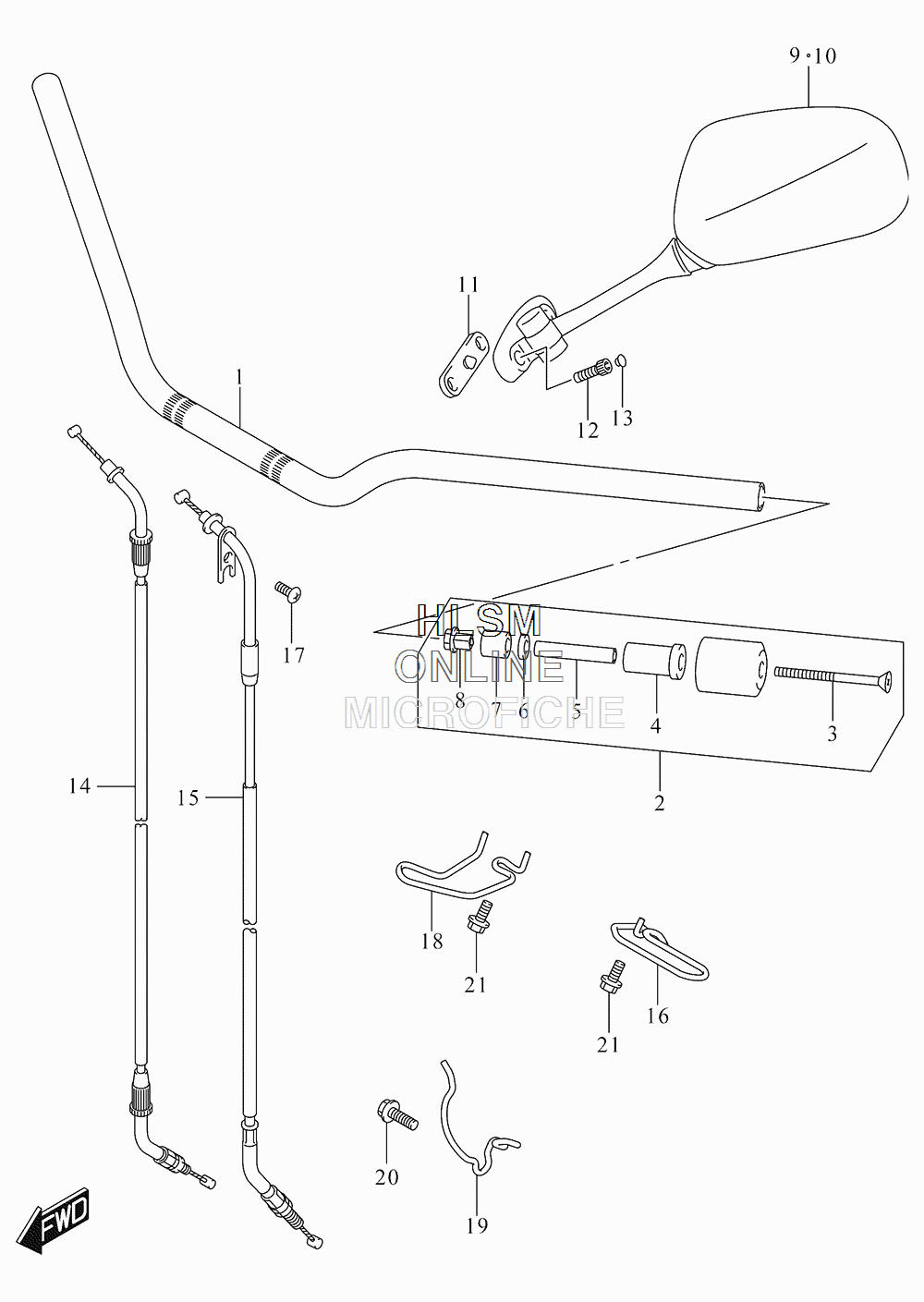

HANDLEBAR для Suzuki GSX-650FA L5 - 2015 года выпуска

№

Артикул

Название
1

56111-49G10 HANDLEBAR

HANDLEBAR
2

56200-38823 BALANCER SET, HANDLEBAR

BALANCER SET, HANDLEBAR
3

09127-06018 SCREW (6X110)

SCREW (6X110)
4

56272-19D00 EXPANDER, HANDLE BALANCER

EXPANDER, HANDLE BALANCER
5

56276-17D00 SPACER, EXPANDER

SPACER, EXPANDER
6

09160-06131 WASHER (6.5X16X4)

WASHER (6.5X16X4)
7

56272-10G00 EXPANDER, HANDLE BALANCER

EXPANDER, HANDLE BALANCER
8

56273-10G10 NUT, HANDLE BALANCER

NUT, HANDLE BALANCER
9

56500-18H00 MIRROR, REAR VIEW (RH)

MIRROR, REAR VIEW (RH)
10

56600-18H00 MIRROR, REAR VIEW (LH)

MIRROR, REAR VIEW (LH)
11

94576-24F00 CUSHION

CUSHION
12

07130-0616B BOLT

BOLT
13

09250-05009 CAP (OD:10)

CAP (OD:10)
14

58300-18H40 CABLE ASSY, THROTTLE NO.1

CABLE ASSY, THROTTLE NO.1
15

58300-18H50 CABLE ASSY, THROTTLE NO.2

CABLE ASSY, THROTTLE NO.2
16

58631-38G00 GUIDE, THROTTLE CABLE

GUIDE, THROTTLE CABLE
17

09125-05042 SCREW (5X10)

SCREW (5X10)
18

58621-18H10 GUIDE, THROTTLE CABLE

GUIDE, THROTTLE CABLE
19

58622-38G00 GUIDE, CABLE (RH)

GUIDE, CABLE (RH)
20

01547-0620A BOLT

BOLT
21

01550-0612A BOLT

BOLT
