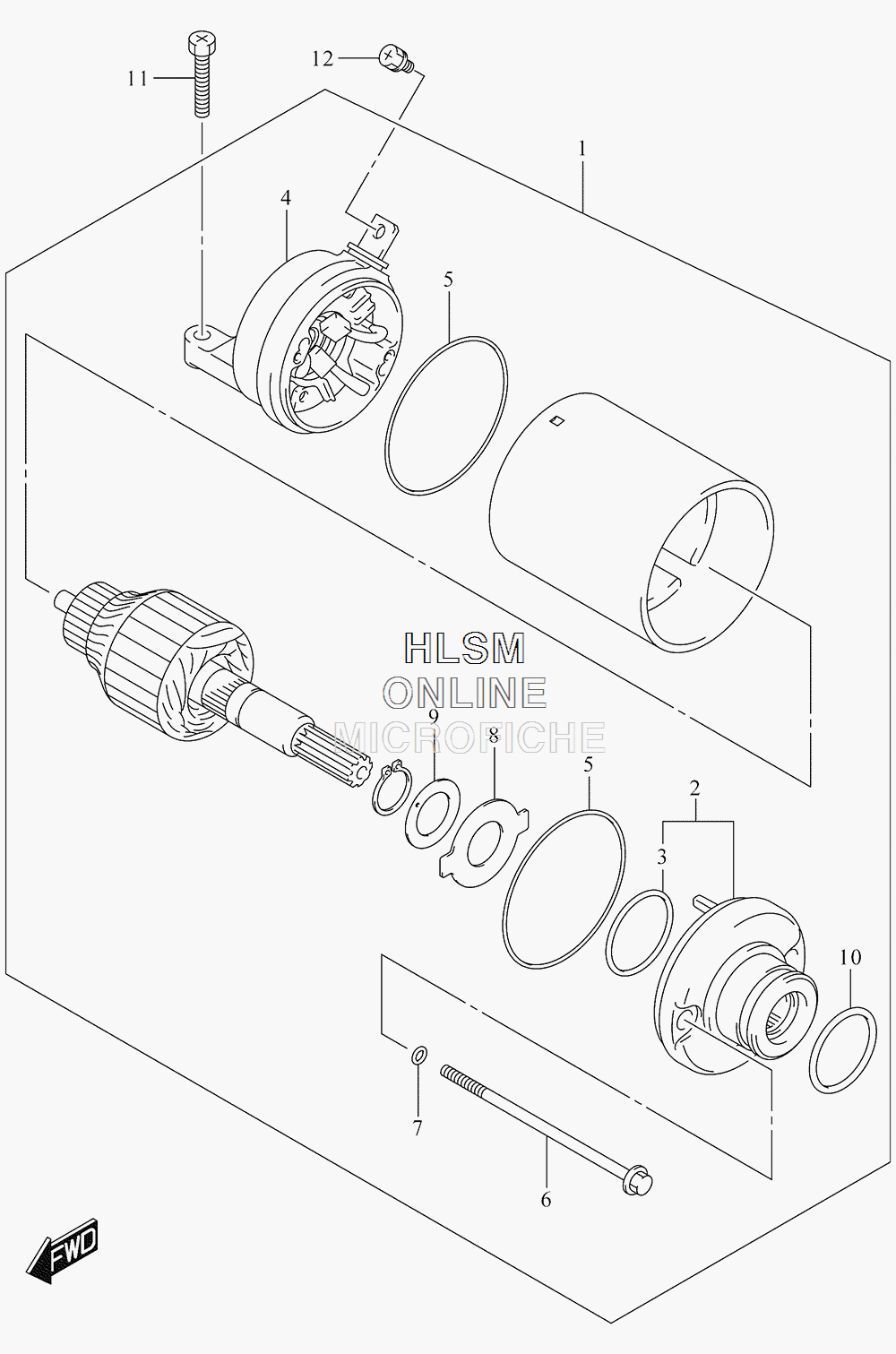

STARTING MOTOR для Suzuki GSX-650FA L5 - 2015 года выпуска
-
№АртикулНазвание
-
131100-17H00 MOTOR ASSY, STARTINGMOTOR ASSY, STARTING
-
231150-08F00 BRACKETBRACKET
-
331153-49210 OIL SEALOIL SEAL
-
431175-34E01 FRAME ASSY, COMMUTATOR ENDFRAME ASSY, COMMUTATOR END
-
531264-32C10 O RINGO RING
-
631281-08F00 BOLTBOLT
-
731156-08F00 O RINGO RING
-
831361-32C10 PLATE, LOCKPLATE, LOCK
-
931361-38300 SHIMSHIM
-
1009280-24003 O RING (D:3,ID:24.5)O RING (D:3,ID:24.5)
-
1109103-06212 BOLT (6X25)BOLT (6X25)
-
1209137-05004 SCREW (5X8)SCREW (5X8)
