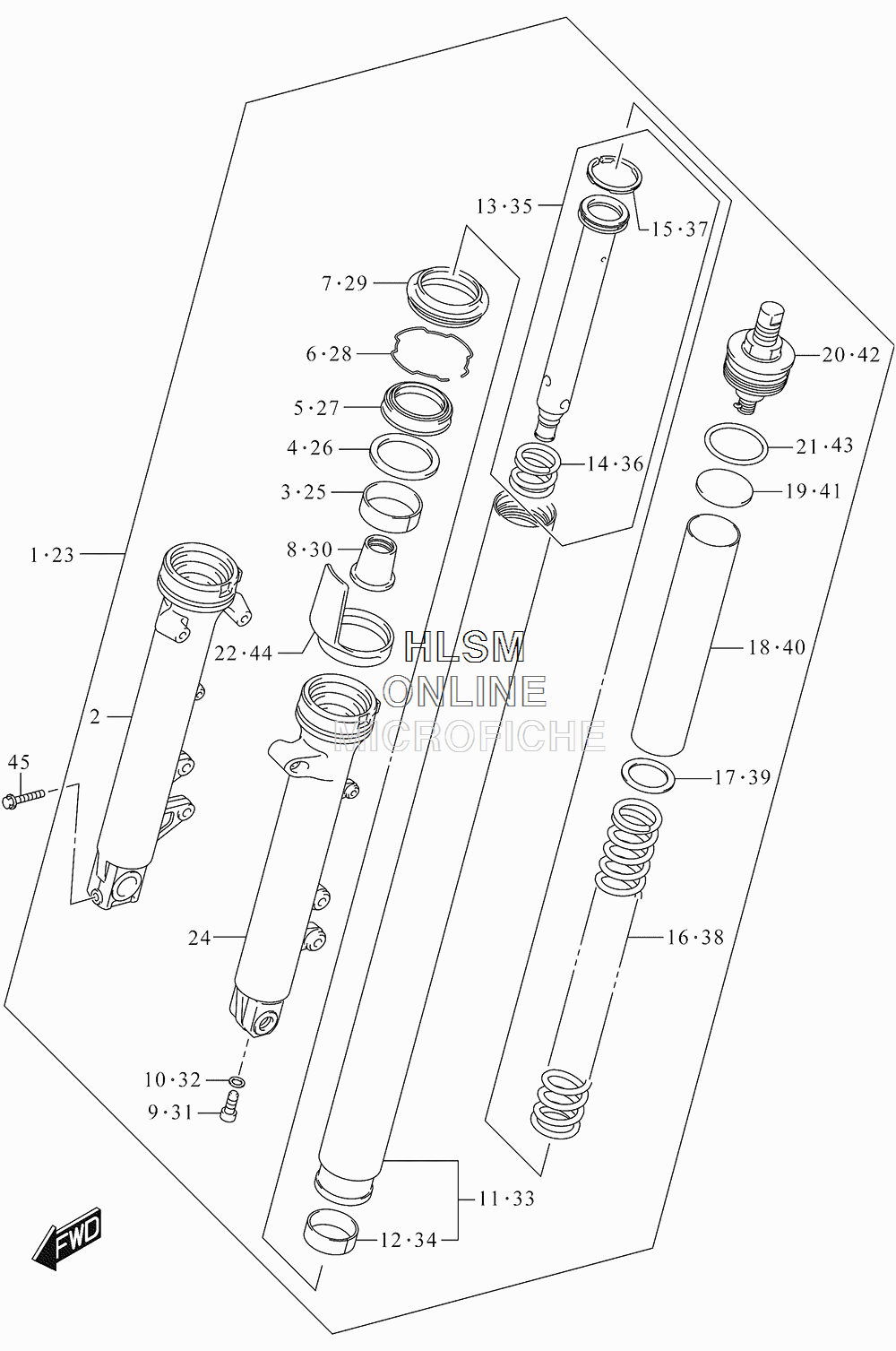

SUSPENSION - FRONT FORK для Suzuki GSX-650FA L5 - 2015 года выпуска
-
№АртикулНазвание
-
151103-17H90 DAMPER ASSY, FRONT FORK RIGHT HAND (BLACK)DAMPER ASSY, FRONT FORK RIGHT HAND (BLACK)
-
251130-17H30 TUBE, OUTER RIGHT HAND (BLACK)TUBE, OUTER RIGHT HAND (BLACK)
-
351167-26E10 METAL, SILDEMETAL, SILDE
-
451158-05A00 WASHERWASHER
-
551153-10G50 OIL SEALOIL SEAL
-
651156-49440 RING, STOPPERRING, STOPPER
-
751173-14F00 DUST SEALDUST SEAL
-
851195-33D10 PIECE, OIL LOCKPIECE, OIL LOCK
-
951147-05H00 BOLTBOLT
-
1051148-41310 GASKETGASKET
-
1151110-17H00 TUBE, INNERTUBE, INNER
-
1251121-23EA0 PISTONPISTON
-
1351146-17H20 CYLINDERCYLINDER
-
1451177-06C00 SPRINGSPRING
-
1551196-31F00 RING, PISTONRING, PISTON
-
1651171-17H80 SPRING, FRONTSPRING, FRONT
-
1751356-17H00 WASHERWASHER
-
1851176-14F20 SPACER, SPRING (L:73.5)SPACER, SPRING (L:73.5)
-
1951192-27A00 WASHERWASHER
-
2051351-31FA0 CAPCAP
-
2109280-32001 O RING (D:3.5,ID:31.7)O RING (D:3.5,ID:31.7)
-
2251201-31F00 PROTECTORPROTECTOR
-
2351104-17H90 DAMPER ASSY, FRONT FORK LEFT HAND (BLACK)DAMPER ASSY, FRONT FORK LEFT HAND (BLACK)
-
2451140-17H30 TUBE, OUTER LEFT HAND (BLACK)TUBE, OUTER LEFT HAND (BLACK)
-
2551167-26E10 METAL, SILDEMETAL, SILDE
-
2651158-05A00 WASHERWASHER
-
2751153-10G50 OIL SEALOIL SEAL
-
2851156-49440 RING, STOPPERRING, STOPPER
-
2951173-14F00 DUST SEALDUST SEAL
-
3051195-33D10 PIECE, OIL LOCKPIECE, OIL LOCK
-
3151147-05H00 BOLTBOLT
-
3251148-41310 GASKETGASKET
-
3351110-17H00 TUBE, INNERTUBE, INNER
-
3451121-23EA0 PISTONPISTON
-
3551146-17H20 CYLINDERCYLINDER
-
3651177-06C00 SPRINGSPRING
-
3751196-31F00 RING, PISTONRING, PISTON
-
3851171-17H80 SPRING, FRONTSPRING, FRONT
-
3951356-17H00 WASHERWASHER
-
4051176-14F20 SPACER, SPRING (L:73.5)SPACER, SPRING (L:73.5)
-
4151192-27A00 WASHERWASHER
-
4251351-31FA0 CAPCAP
-
4309280-32001 O RING (D:3.5,ID:31.7)O RING (D:3.5,ID:31.7)
-
4451201-31F00 PROTECTORPROTECTOR
-
4551451-10G00 BOLTBOLT
